Electrical system
u Remove screws 4.
u Remove starter 2.
Installation
u Position starter 2.
u Tighten screws 4.
u Connect plug 3.
u Connect power supply 5 with nut.
u Tighten nut to torque.
u Connect ground cable 6 with nut and tighten according to tightening specifications.
Specific values
Not applicable.
Tightening specifications

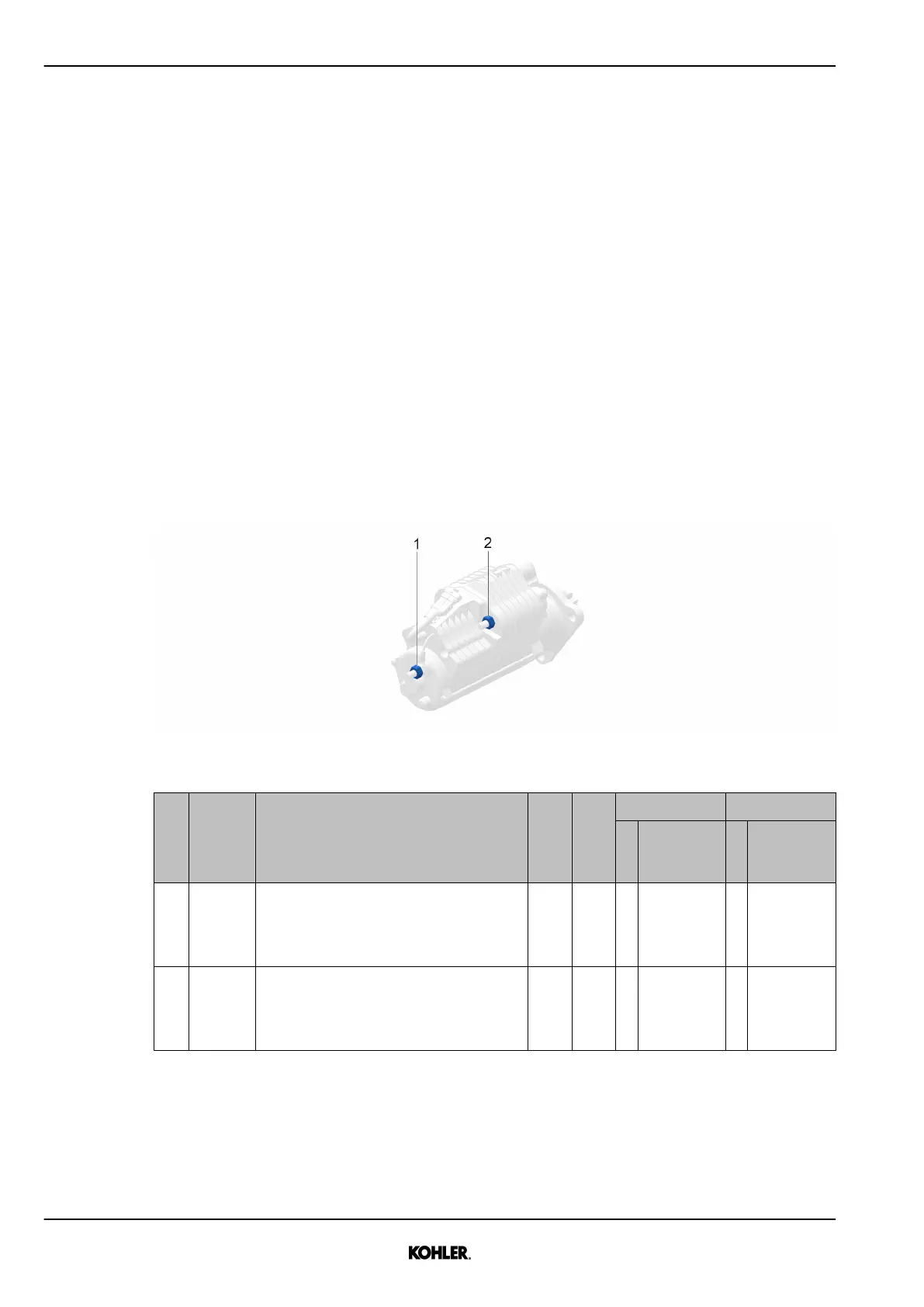

Fig. 286: Starter nuts
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 - M12 - Yes 1 22 Nm
(16 ft-lb)-
30 Nm
(22 ft-lb)
- -
2 - M12 - Yes 1 22 Nm
(16 ft-lb)-
30 Nm
(22 ft-lb)
- -
Tab. 55: Tightening specifications table
*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
O = Engine oil
250
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
