Kohler KD83V16

Service and Repair Manual Repair
Electrical system
XX = Loctite 243
YY = Loctite 577
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse and
marking, page 274.)
Prestolite starter removal and installation (option)
Previous tasks
q Disconnect the battery.
Specific safety instructions
– Not applicable.
Special tools
– Not applicable.
Consumables and equipment
– Not applicable.
Overview

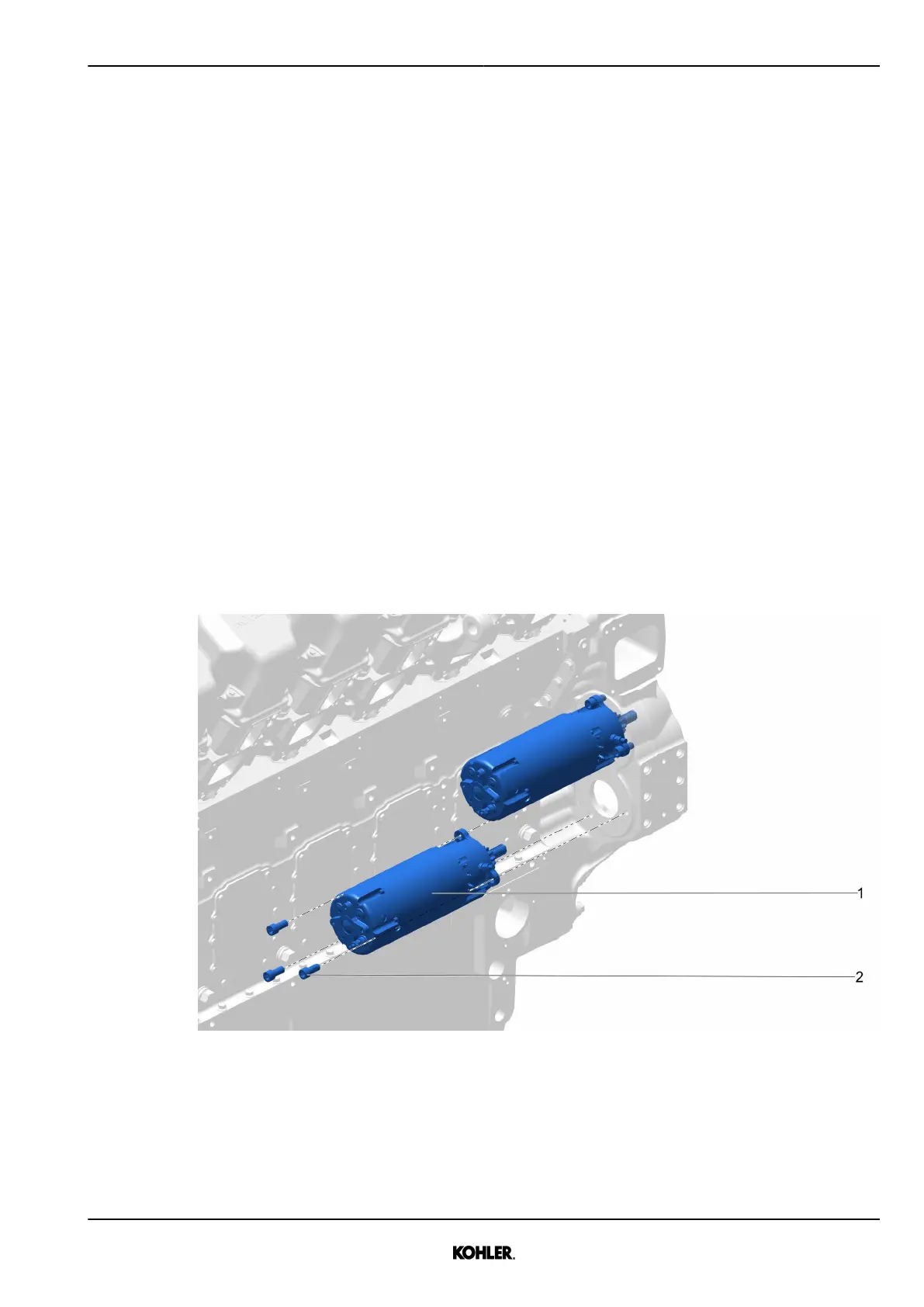

Fig. 287: Task overview
1 Starter 2 Screw (M16)
Removal
u Disconnect starter electrical connections.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
251
