Electrical system
u Remove screws 2.
u Remove starter 1.
Installation
u Install starter 1 with screws 2.
u Tighten screws 2 to 180
±45
Nm (133
±33
ft-lb).
u Connect starter electrical connections
Specific values
Not applicable.
Tightening specifications

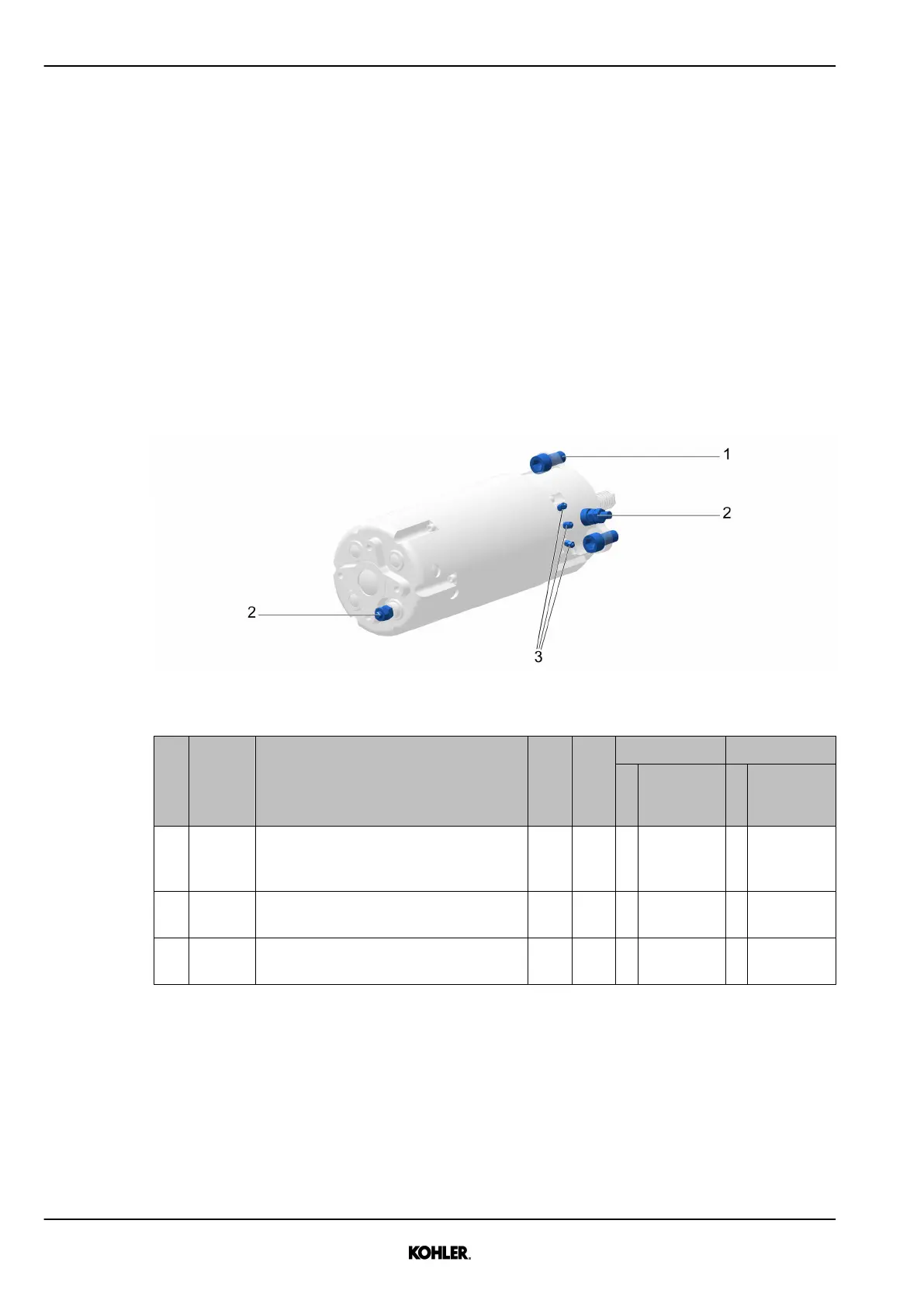

Fig. 288: Starter screws and connections
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 450AA ISO 4762 M16x2x35-10.9-FLZN - Yes 1 180 Nm
(133 ft-lb)*
**
- -
2 - Nut - - 1 9.5 Nm
7 ft-lb
- -
3 - Nut - - 1 1.6 Nm
1 ft-lb
- -
Tab. 56: Tightening specifications table
*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
252
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
