Exhaust aftertreatment system

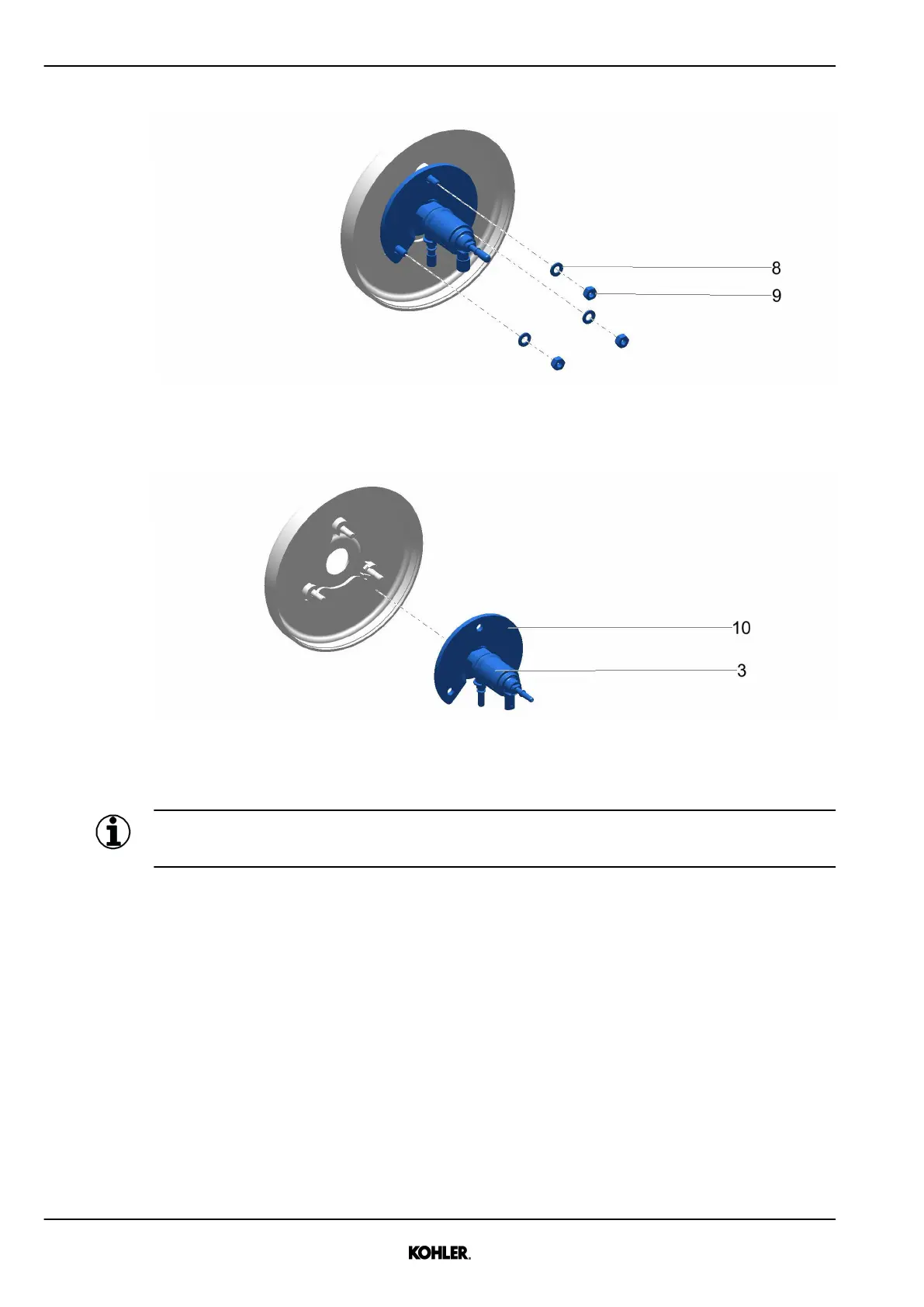

Fig. 291: Removing injector nuts
u Remove the injector fixing nuts 9, and washers 8.
Fig. 292: Removing injector assembly
u Remove the injector 3, and the retaining plate 10 together as an assembly.
Information
Make sure the screws remain in place on the reactor.
