Exhaust aftertreatment system

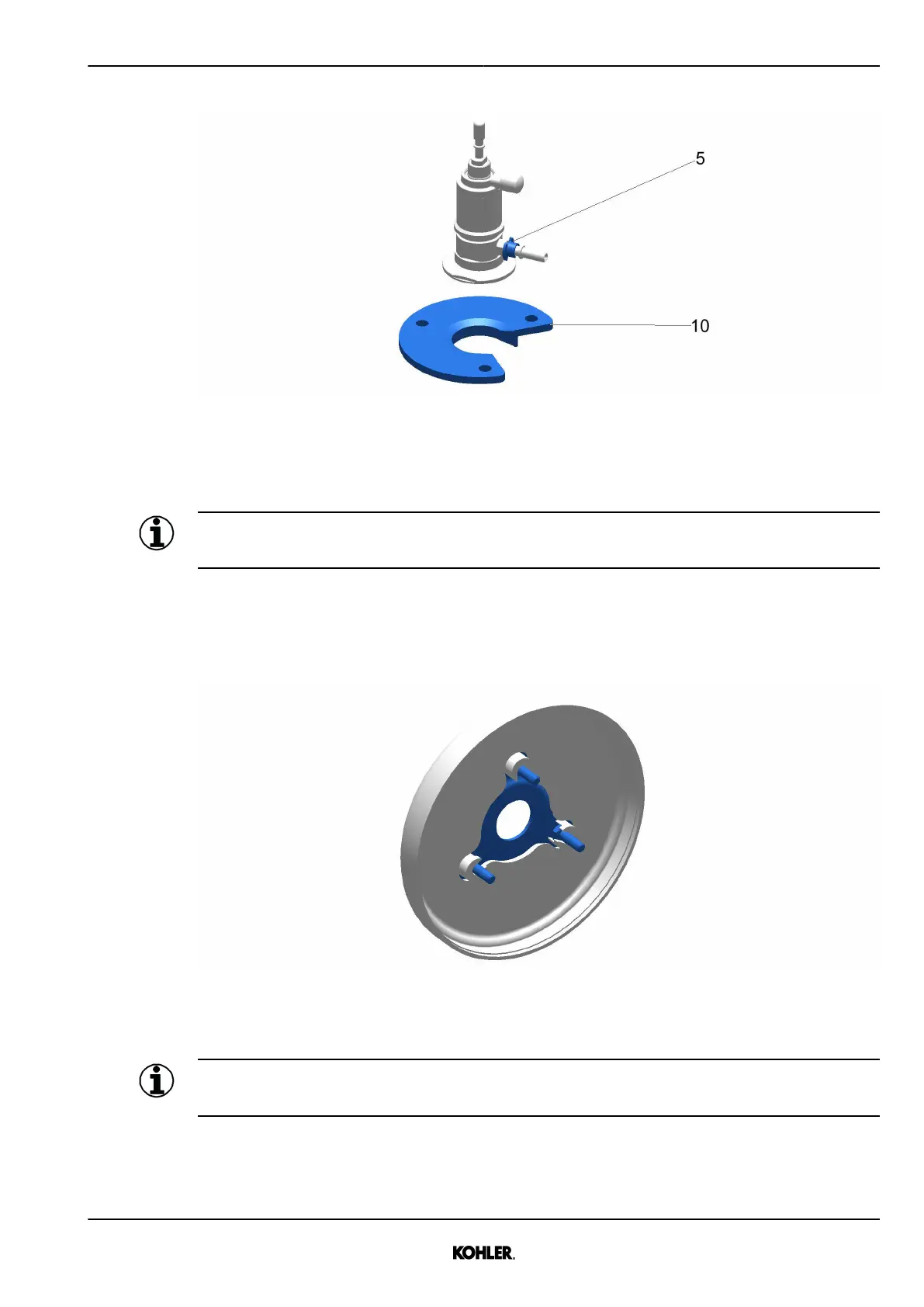

Fig. 293: Removing retaining plate
u Remove the retaining plate 10 from the injector.
u Push the teflon ring 5 outwards to disconnect the diesel exhaust fluid inlet line.
Information
Make sure that dust cannot go into the system.
u Discard the injector, and the injector gasket.
Installation
Fig. 294: Preparing reactor surface
u Clean the sealing surface on the reactor.
Information
The sealing surface between injector and reactor must be clean to avoid gas leakage.
u Apply high temperature grease on the screws.
