Service and Repair Manual
Repair
Exhaust aftertreatment system

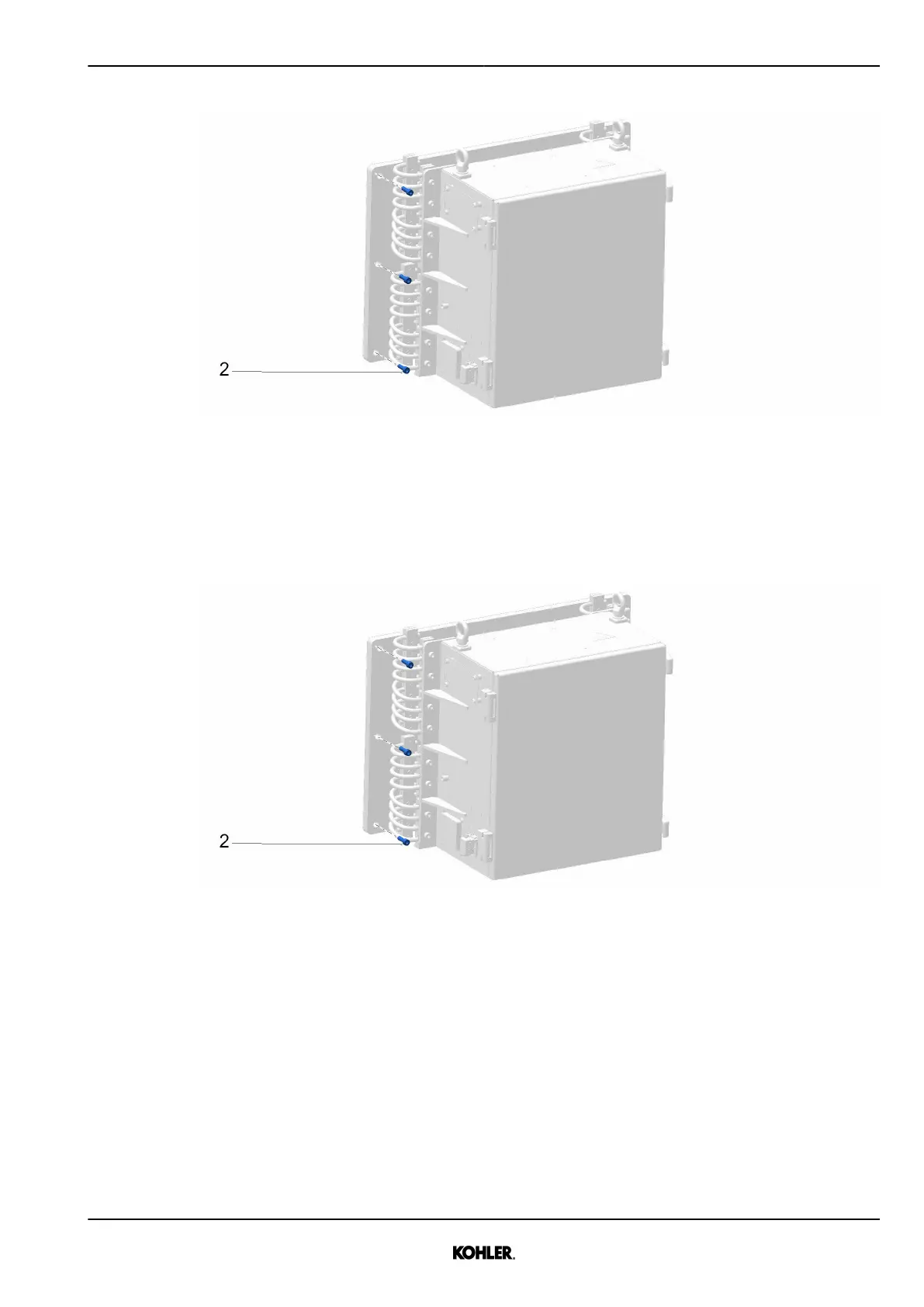

Fig. 302: Removing screws
u
Remove the screws
2
.
u
Remove the pump
1
.
Installation
Fig. 303: Installing pump
u
Install the pump
1
with screws
2
.
u
T
ighten the screws
2
to 33
±3
Nm (24
±2
ft-lb).
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
263
262
264
