Exhaust aftertreatment system

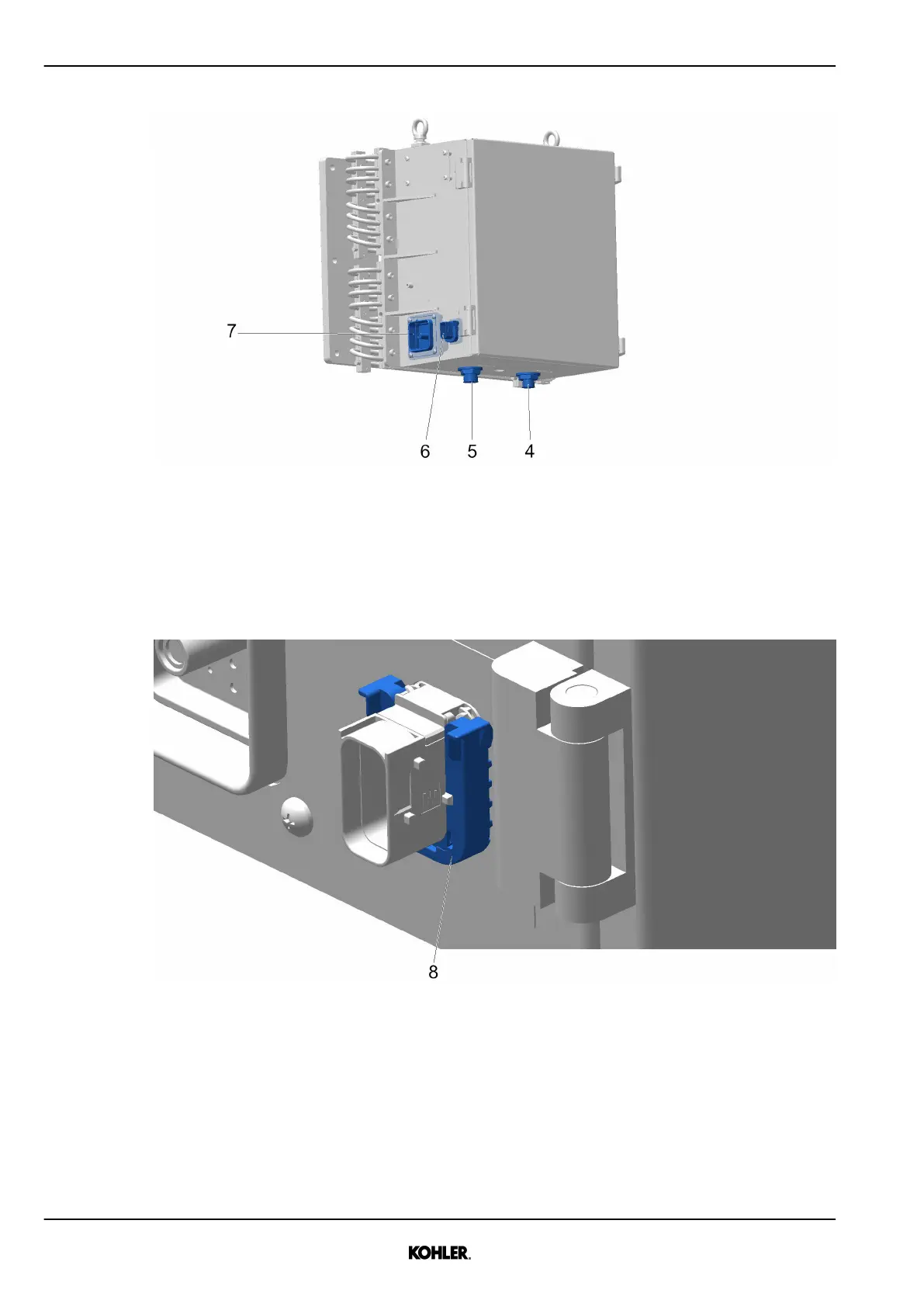

Fig. 304: Connecting connectors
u Connect the diesel exhaust fluid lines to the pump 1 with connectors 4, 5.
u Tighten connectors 4, 5 to 35
±5
Nm (26
±4
ft-lb).
u Connect the 48-pin connector 7 to the pump 1.
u Tighten the fastening screws of the 48-pin connector 7 to 4
±0.5
Nm (3
±0
ft-lb).
Fig. 305: Connector locking device - handling forbidden
u Connect the 10-pin connector 6 to the pump 1.
