Standard tightening torques
Pre-tightening torque and turning angle

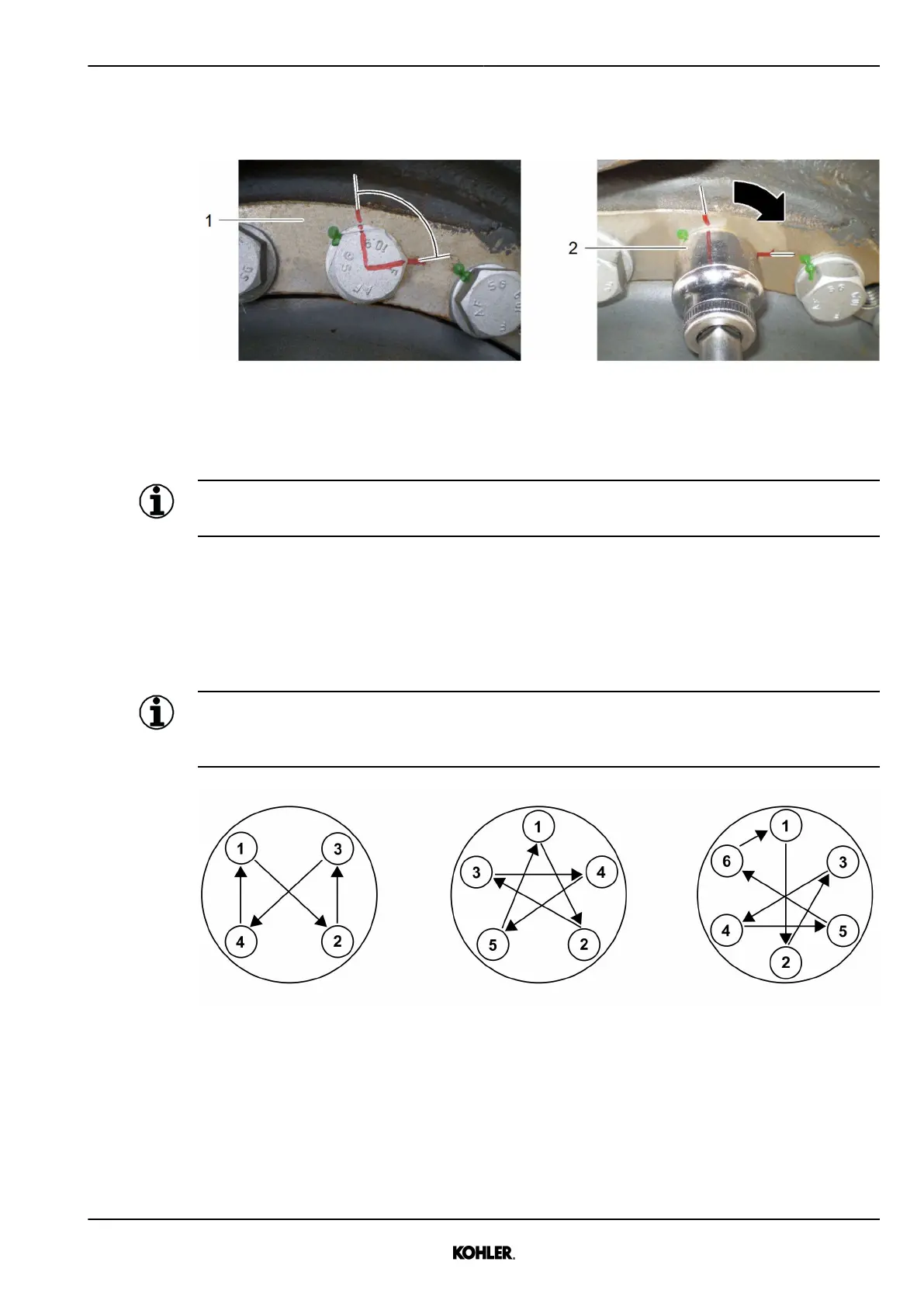

Fig. 329: Pre-tightening marking and angles
u Tighten mounting bolt with the specified pre-tightening torque.
u Mark the specified turning angle on the screw head and on the component 1.
Information
One edge of hexagonal screw corresponds to 60°.
u On the socket key of the torque wrench 2, mark the initial position, aligned with the marking on
the component.
u Use the torque wrench to tighten until the marking of the initial position is aligned with the
marking on the component.
u Repeat process for the other screws, according to standard or described sequence.
Information
For every maintenance task, when a sequence is specified, achieve step 1 for all the sequence
before starting step 2.
Fig. 330: Standard sequence for 4, 5 and six screws.
