Standard tightening torques
Screws reuse
Information
Except components listed below, and otherwise noted,
u Reuse screws as many times as no visible damage appears (thread, coating).
u Replace screws with the same quality class as soon damage appears (thread, coating).
For screws on:
– Main bearing
– Connecting rod
– Cylinder head
– Damper
– Flywheel
– Camshaft
– Trunnion mount
– Engine feets CS and CCS
– Exhaust screws with copper coating
u Replace screws after each dismounting.
Counterweight:
u Untightening screws is forbidden.
Screw plugs:
u Replace screw plugs after each dismounting.
On fuel and HP injections pipes:
u Replace connections after first dismouting.
u Change connections after 3 tightenings.
For cutting rings:
u Replace connections after first dismouting.
u Change connections after 3 tightenings.
Screws marking
Information
Except components listed below, and otherwise noted,
u Marking on screws or nuts to track their reuse is not required.

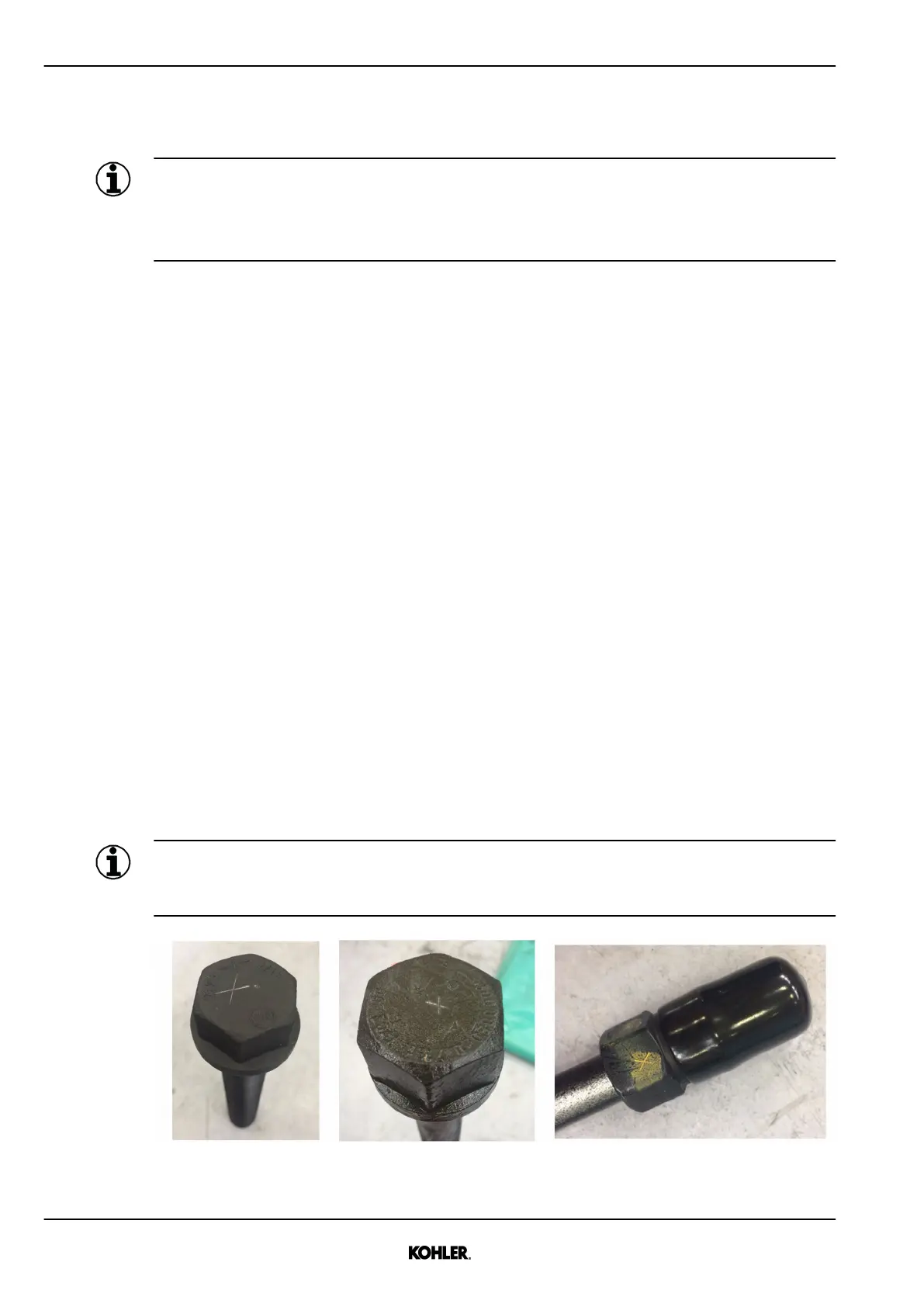

Fig. 331: Examples of markings on screws and HP pipe nut.
