Appendix Service and Repair Manual
Standard tightening torques
Thread
diam-
eter
Quality class 8.8 Quality class 10.9
M20 320 Nm
236 ft-lb
358 Nm
264 ft-lb
470 Nm
347 ft-lb
525 Nm
387 ft-lb
M24 550 Nm
406 ft-lb
- 800 Nm
590 ft-lb
-
M30 1100 Nm
811 ft-lb
- 1600 Nm
1,180 ft-lb
-
Tab. 62: Standard torques for hexagonal / socket / flange screws and hexagonal / flange nuts, with
coating without lubricant
5.3.4 Standard torques for internal drive pipe plug with conical thread

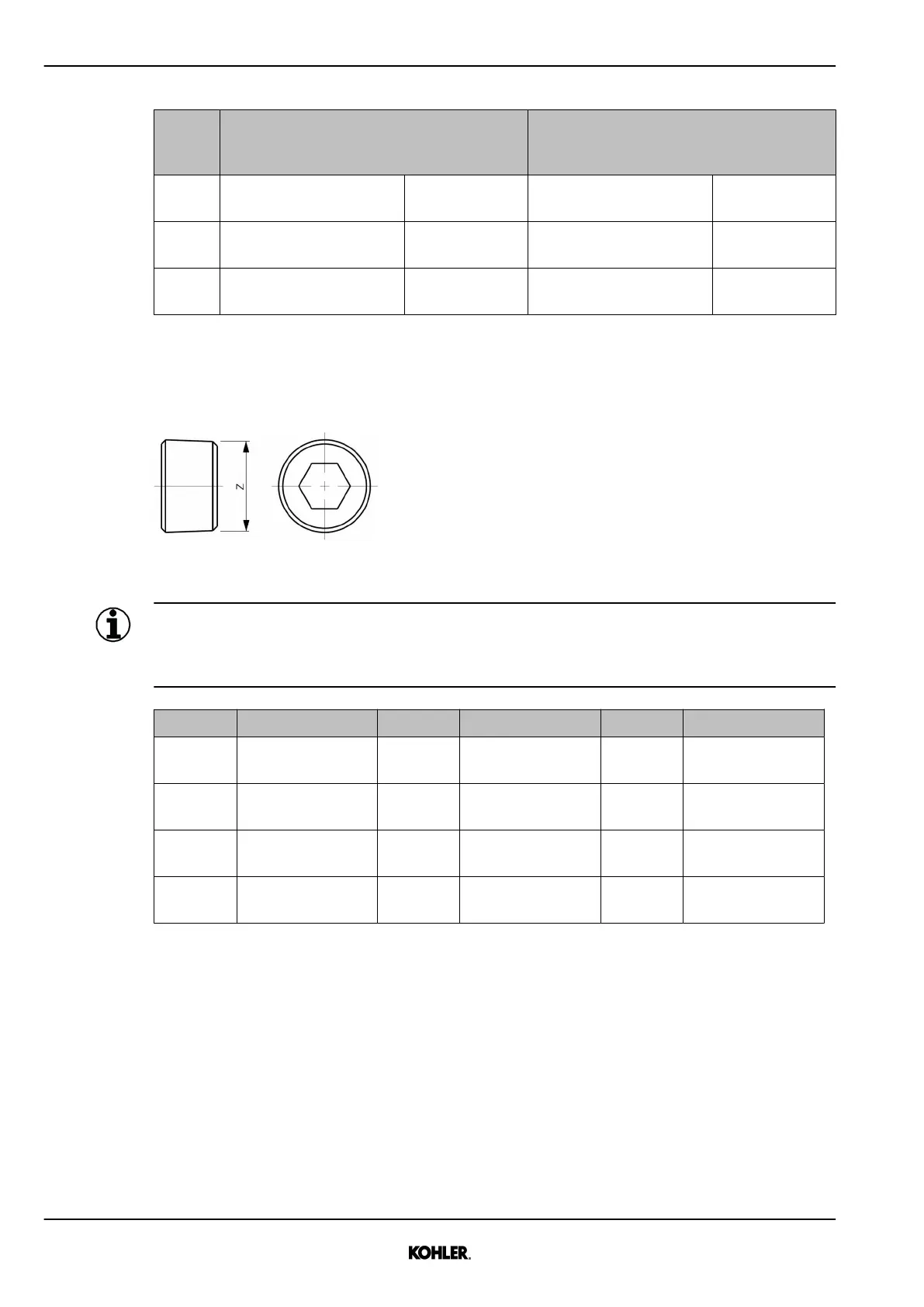

Fig. 342: Internal drive pipe plug with conical thread DIN 906
Information
Tolerances of the indicated tightening torques: 10 %.
Always lubricate the thread before tightening these parts (engine oil).
Thread Tightening torque Thread Tightening torque Thread Tightening torque
M 6 x 1 5 Nm
4 ft-lb
1)
M 14 x 1.5 57 Nm
42 ft-lb
M 20 x 1.5 98 Nm
72 ft-lb
M 8 x 1 12 Nm
9 ft-lb
M 16 x 1.5 68 Nm
50 ft-lb
M 36 x 1.5 280 Nm
207 ft-lb
M 10 x 1 18 Nm
13 ft-lb
M 18 x 1.5 87 Nm
64 ft-lb
M 48 x 1.5 280 Nm
207 ft-lb
M 12 x 1.5 30 Nm
22 ft-lb
- - - -
Tab. 63: Standard torques for internal drive pipe plug with conical thread
1)
Special tolerance: +0.5 mm (0.02 in)
5.3.5
Standard torques for screws according to DIN 7643, DIN 910, DIN
908
With copper sealing ring according to DIN 7603, for:
– Hollow screw for ring-type banjos according to DIN 7643
– Hexagon head screw plugs with collar - Cylindrical thread according to DIN 910
– Internal drive screw plugs with collar - Cylindrical thread according to DIN 908
278
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
