Kohler KD83V16

Service and Repair Manual Repair
Covers

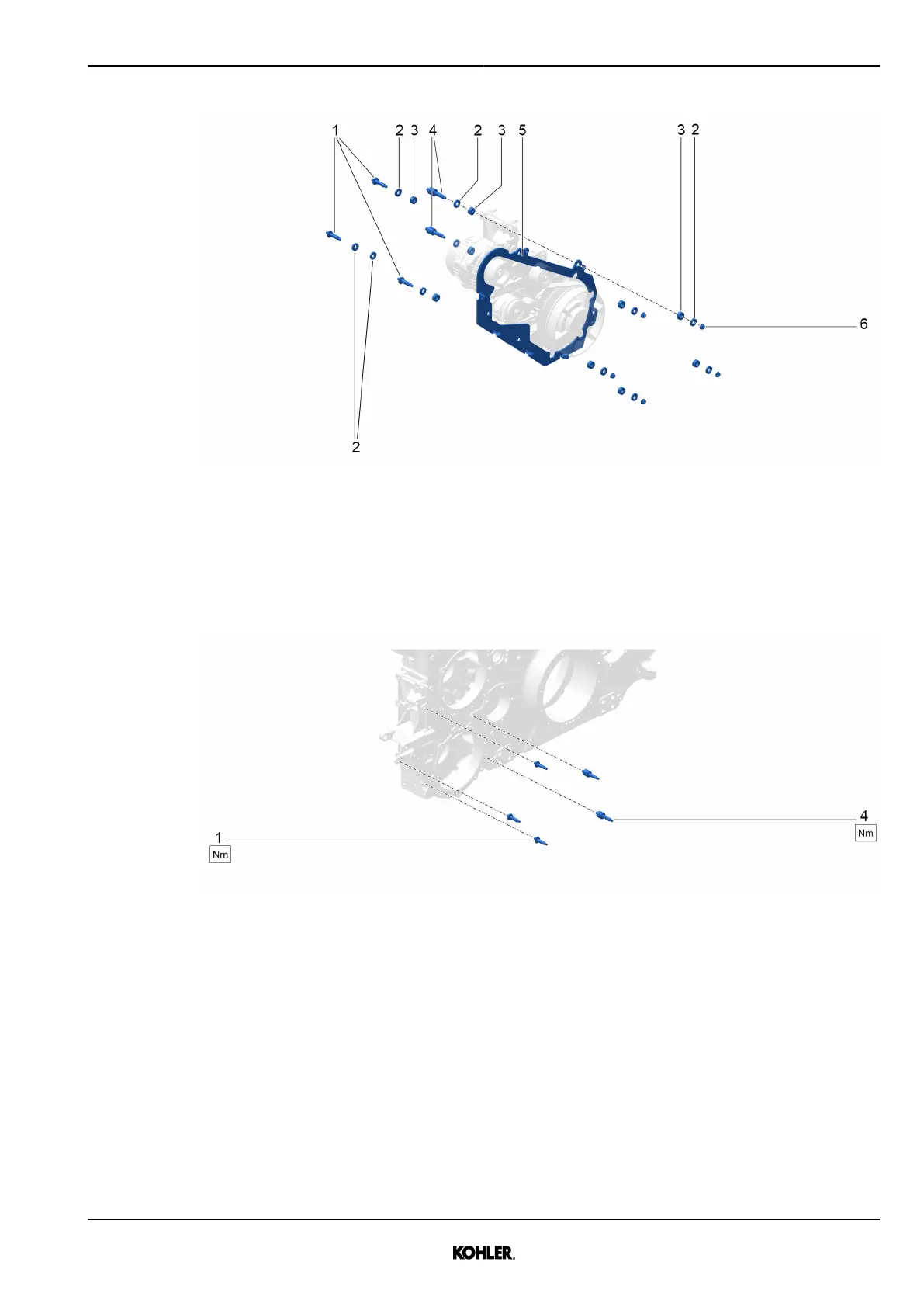

Fig. 55: Removing cover - back part
u Remove nuts 6, vibration dampers 3, distance sleeves 2 and pins 1, 4.
u Remove cover - back side 5
Installation
Fig. 56: Installing pins
u Screw pins 1, 4 on aggregate support and PTO bracket.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
63
