Repair Service and Repair Manual
Covers

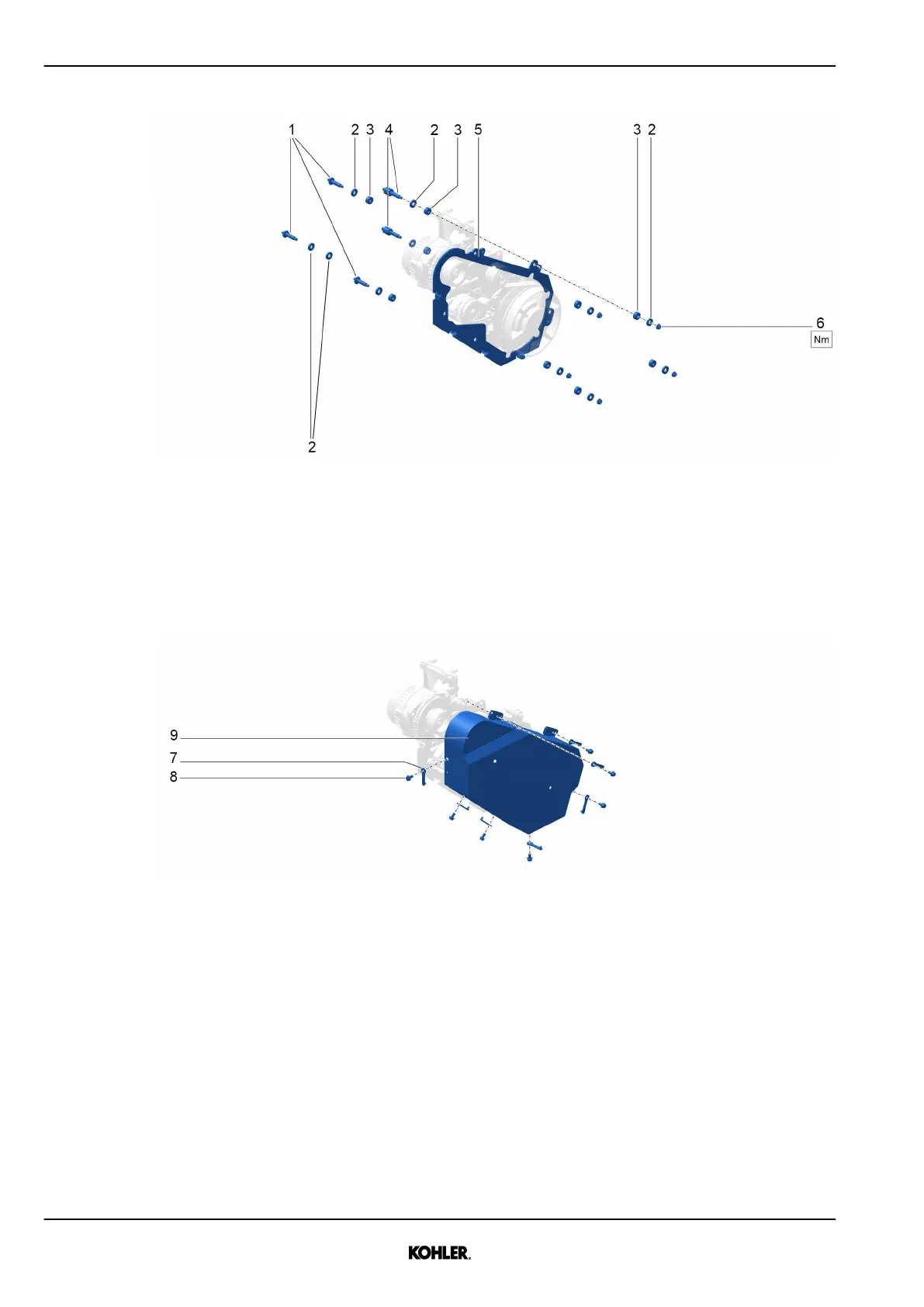

Fig. 57: Installing first part of cover
u Mount distance sleeves 2 and vibration dampers 3 on pins 1, 4.
u Mount cover - back side 5 on pins 1, 4.
u Mount distance sleeves 2 and vibration dampers 3 on pins 1, 4.
u Screw cover with nuts 6.
Fig. 58: Installing cover
u Mount cover 9 on pins 1, 4.
u Fix cover 9 with lock washers 7 and screws 8.
Specific values
Not applicable.
