Service and Repair Manual Repair
Rocker arms
Valve set order
Information
There is a marking on the flywheel to set the valve clearance.
The flywheel grooves 1 to 6 are identified in the picture below.
The valves must be set in the correct position for the matching cylinder.

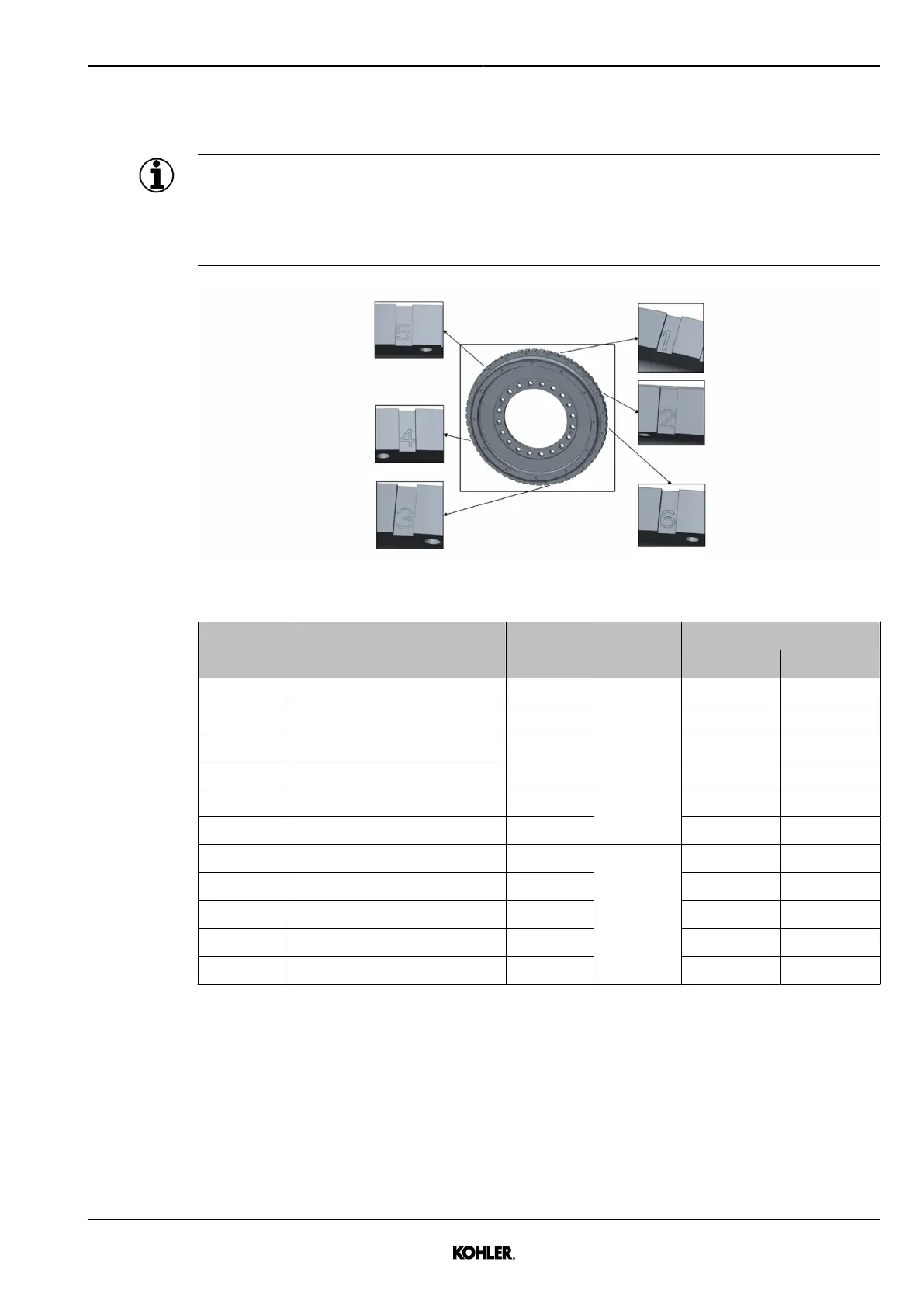

Fig. 64: Flywheel marking
Step Start point Groove N° Sequence
V16
Bank A Bank B
1 TDC overlap - A1 1
1st turn
No action No action
2 - 2 A7, A8 B2, B4
3 - 6 No action No action
4 - 3 No action No action
5 - 4 A3, A5 B6, B8
6 - 5 No action No action
7 TDC injection - A1 1
2nd turn
No action No action
8 - 2 A1, A2 B5, B7
9 - 6 No action No action
10 - 3 No action No action
11 - 4 A4, A6 B1, B3
Tab. 14: Reference table for the flywheel positioning
Set the valve clearance
u Rotate crankshaft in direction of rotation with turning device to index 1.
KD83V16 33525088901_2_1 EN_US
