Rocker arms

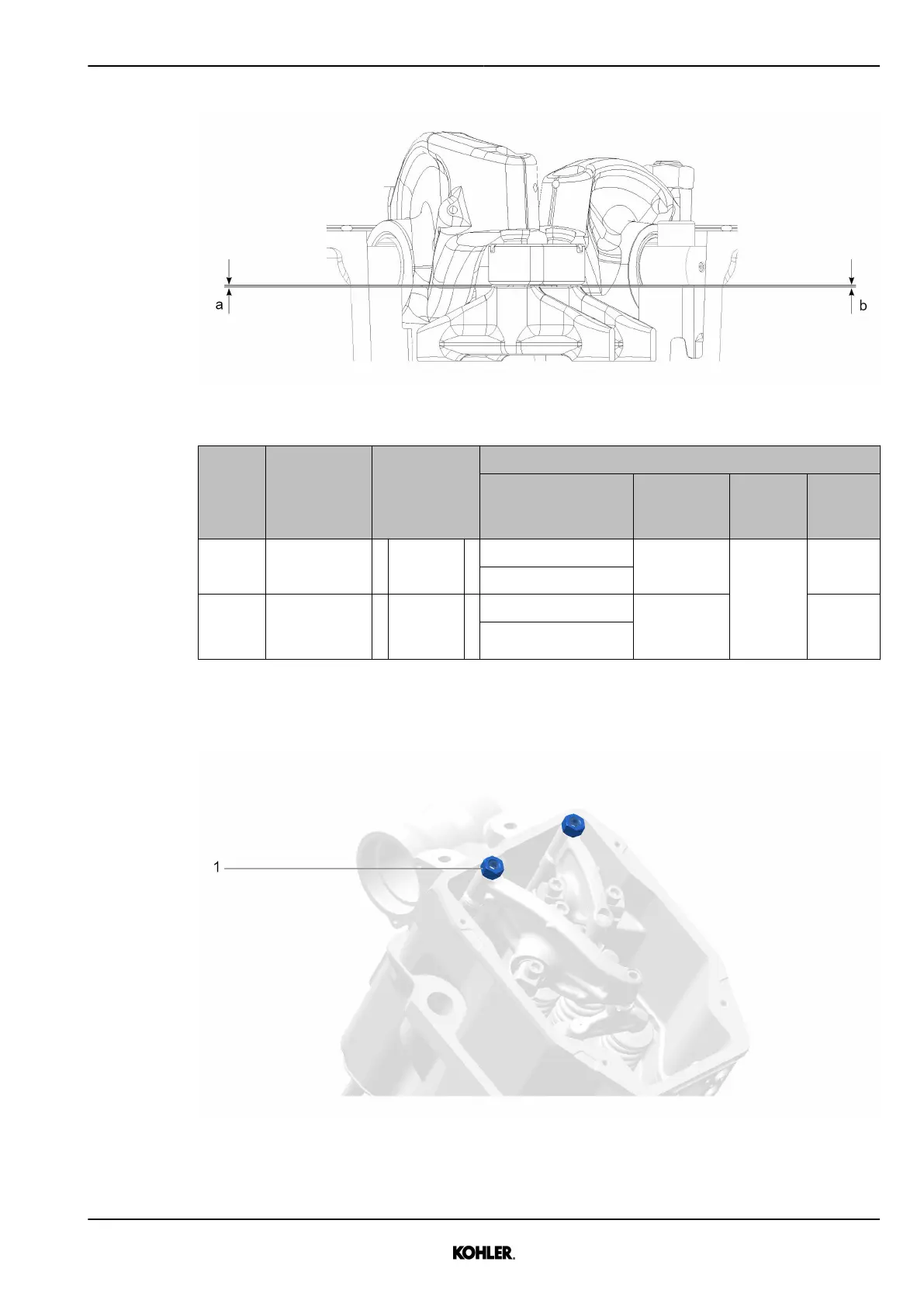

Fig. 68: Valve clearance
Refer-
ence
Denomina-
tion
Nominal
value
Tolerance values
Upper value -
Lower value
Maximum
wear
Calcu-
lated gap
min/max
Actual
value
a Inlet valve/
clearance
500 µm
19.69 th
+100 µm (3.94 th) - - -
0
b Exhaust
valve/ clear-
ance
1 mm
0.04 in
+100 µm (3.94 th) - -
0
Tab. 16: Tolerance values
Tightening specifications
Fig. 69: Rocker arms locknuts
