Rocker arms
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 081AA DRW 11132681 O Yes 1 40 Nm
30 ft-lb
- -
Tab. 17: Tightening specifications table
*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse and
marking, page 274.)

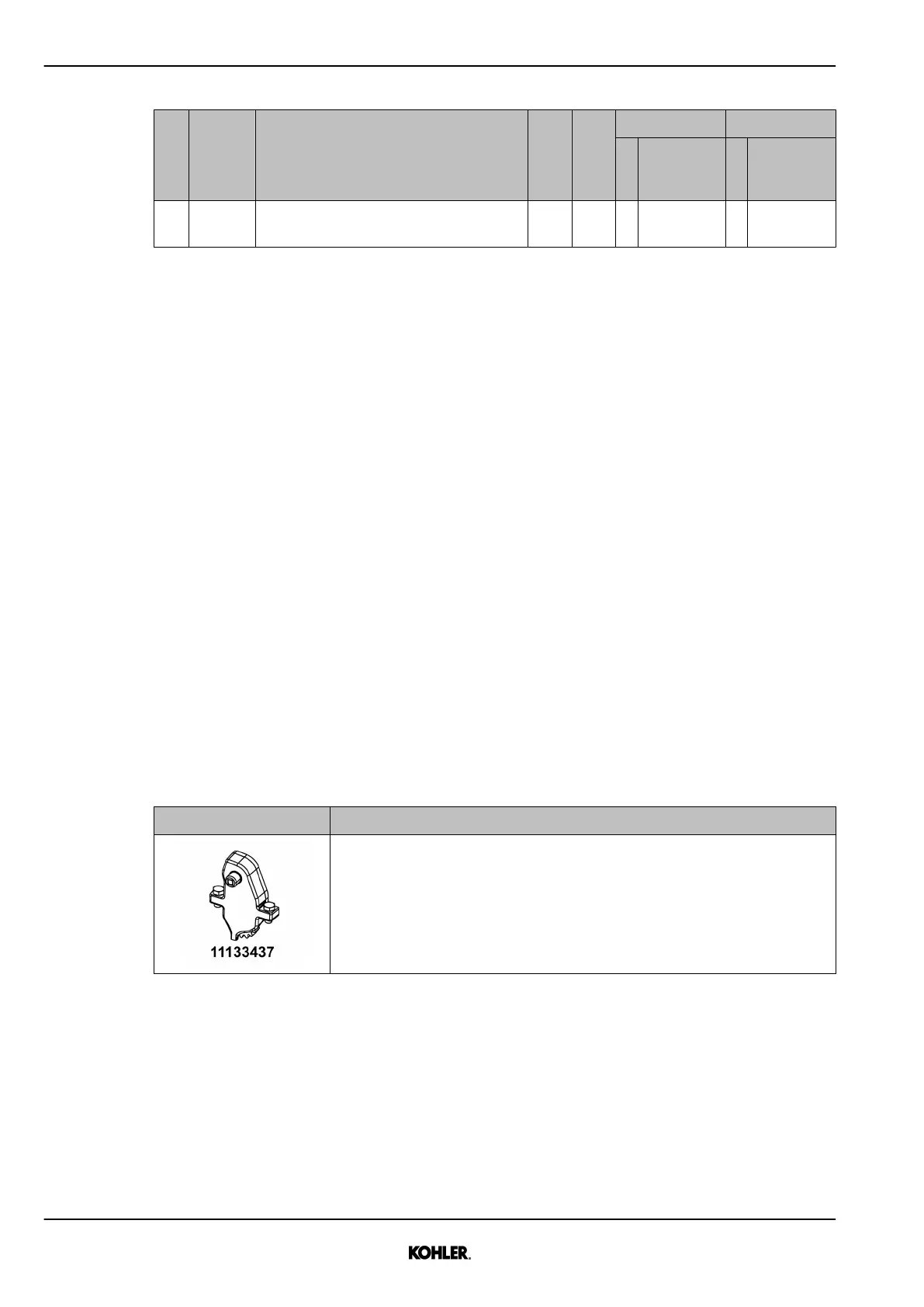

3.3.2 Inlet and outlet rocker arms removal and installation
Previous tasks
q Remove retaining plate and high pressure pipe. (For more information see: 3.6.4 Injector
removal and installation (SL 205), page 122.)
q Remove cylinder head covers. (For more information see: 3.2.3 Cylinder head cover removal
and installation, page 65.)
Specific safety instructions
Not applicable.
Special tools
Special tool Designation
Turning device. (For more information see: Use the turning device,
page 270.) .
Tab. 18: Special tools
Consumables and equipment
– Engine oil
– Rags
– Cleaner
76
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
