Rocker arms

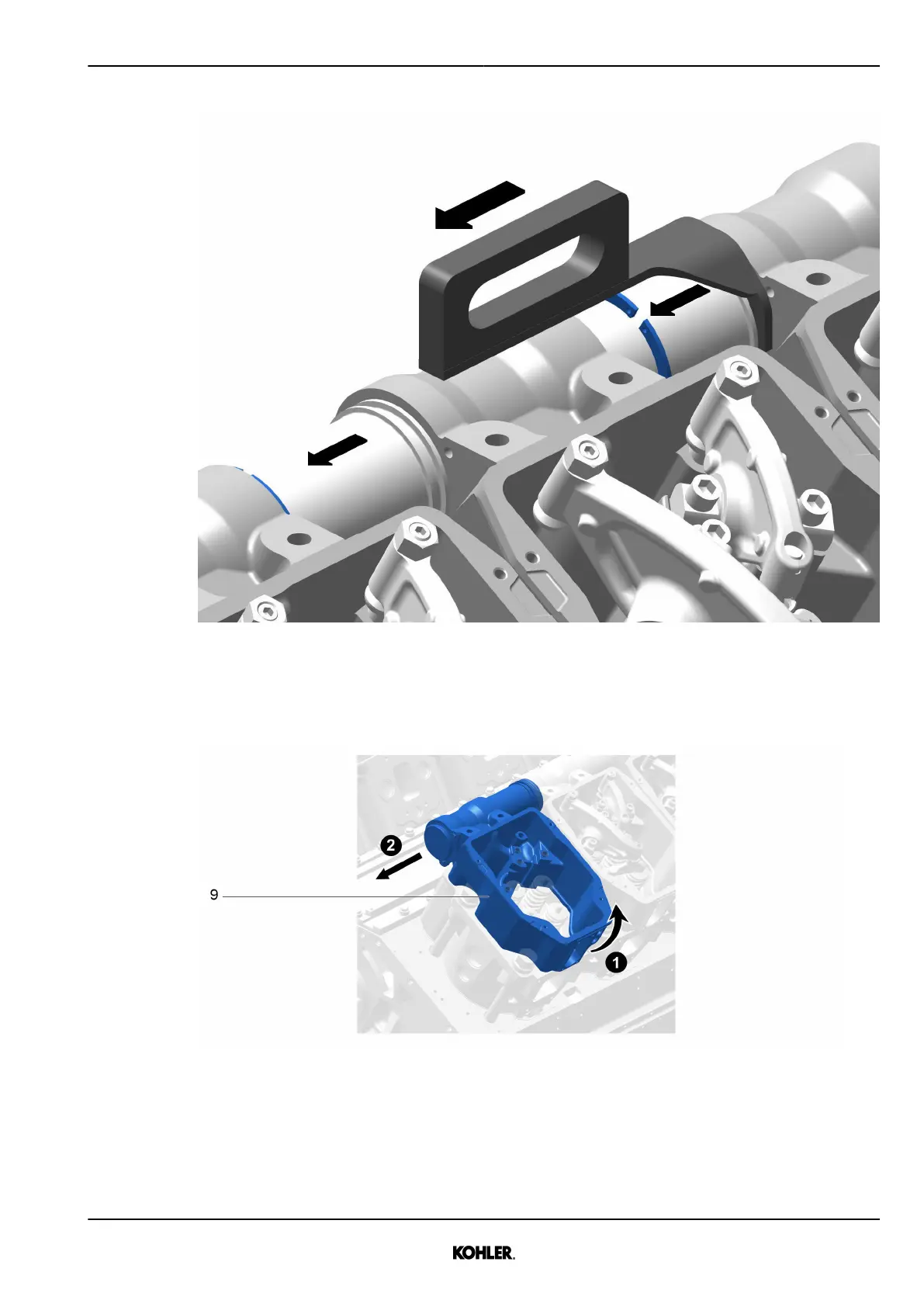

Fig. 84: Placing tool
u Place tool on pipe.
u Slide pipes out of rocker arm housing.
Fig. 85: Removing rocker arm housing
u Lift rocker arm housing 9.
u Move rocker arm housing and coolant pipe HT to remove the assembly.
