Rocker arms

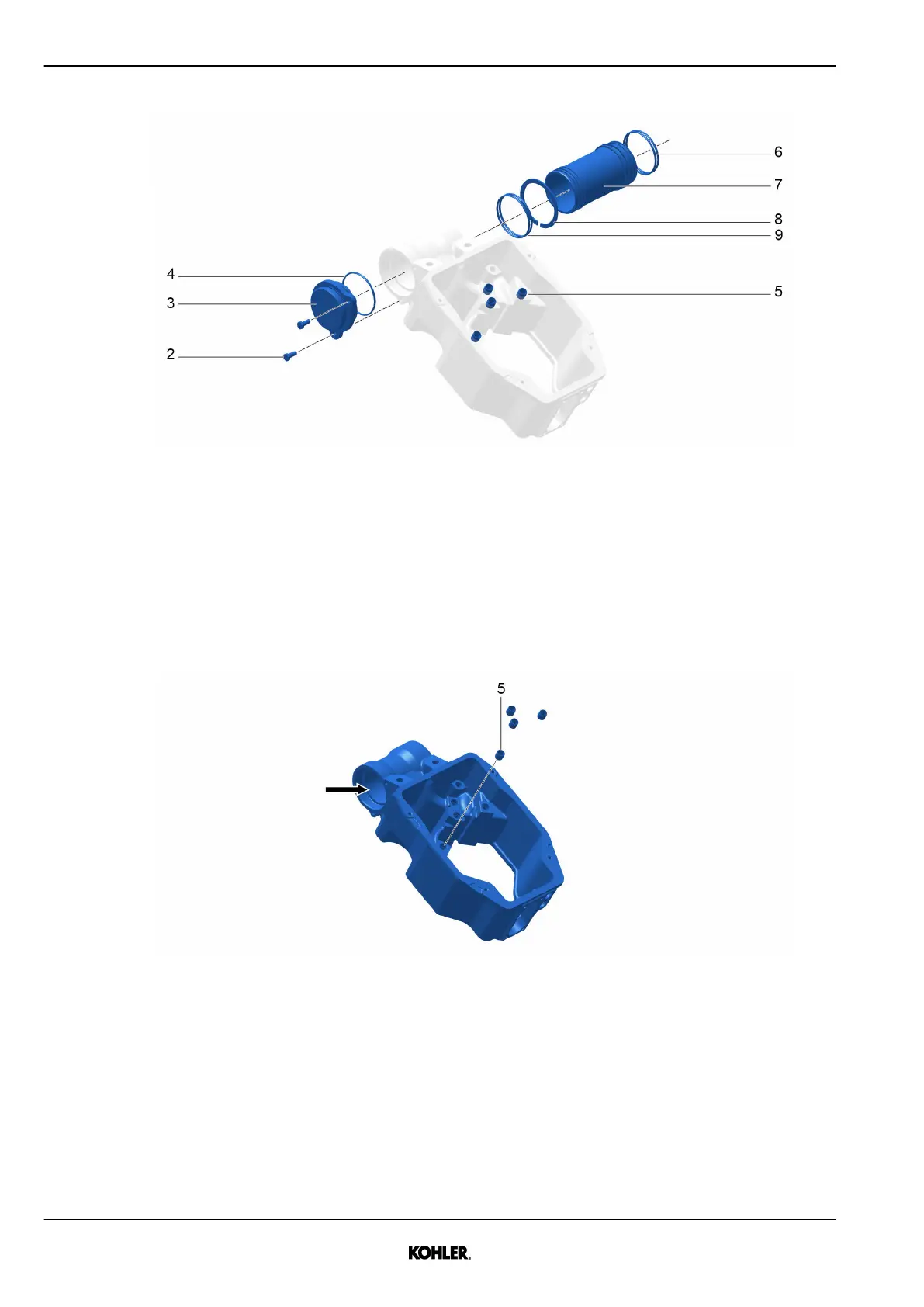

Fig. 86: Removing coolant pipe HT and closing cover
u Remove screws 2 and locking ring 8.
u Separate rocker arm housing from coolant pipe HT 7 and closing cover 3.
u Remove seals 4, 6 from closing cover and coolant pipe HT.
u Remove fitting sleeves 5.
Installation
Fig. 87: Preparing rocker arm housing
u Grease coolant pipe.
u Insert fitting sleeves 5.
