Cylinder head (SL 224)
Removal

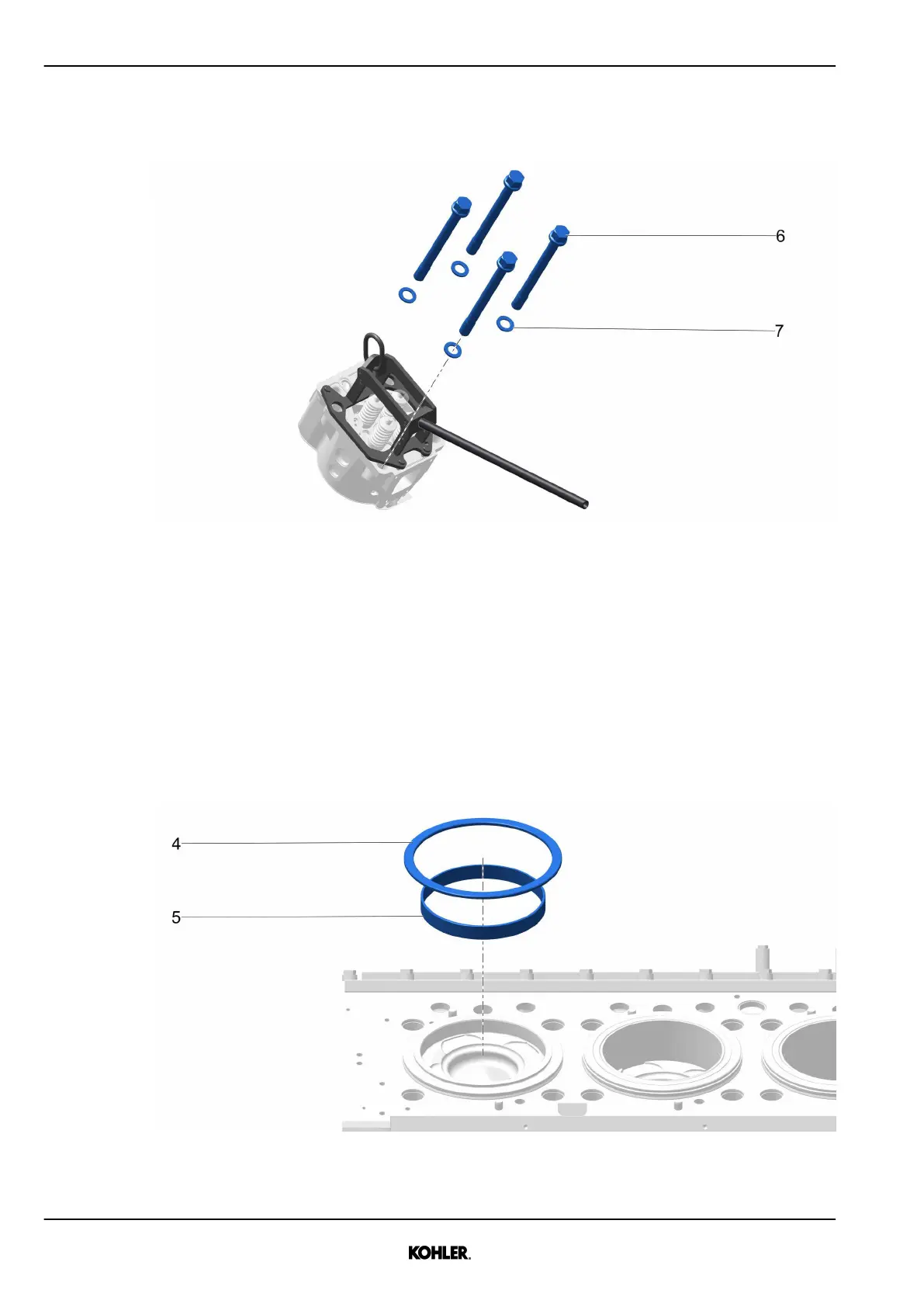

Fig. 95: Lifting the cylinder head
u Unscrew bolts 6 with washers 7.
u Mount lifting device on cylinder head.
u Lift and push cylinder head up and down to dismantle it.
u Remove cylinder head.
u Remove cylinder head gasket 4.
u Remove flame ring 5.
Installation
Fig. 96: Installing cylinder head gasket and flame ring
