Cylinder head (SL 224)

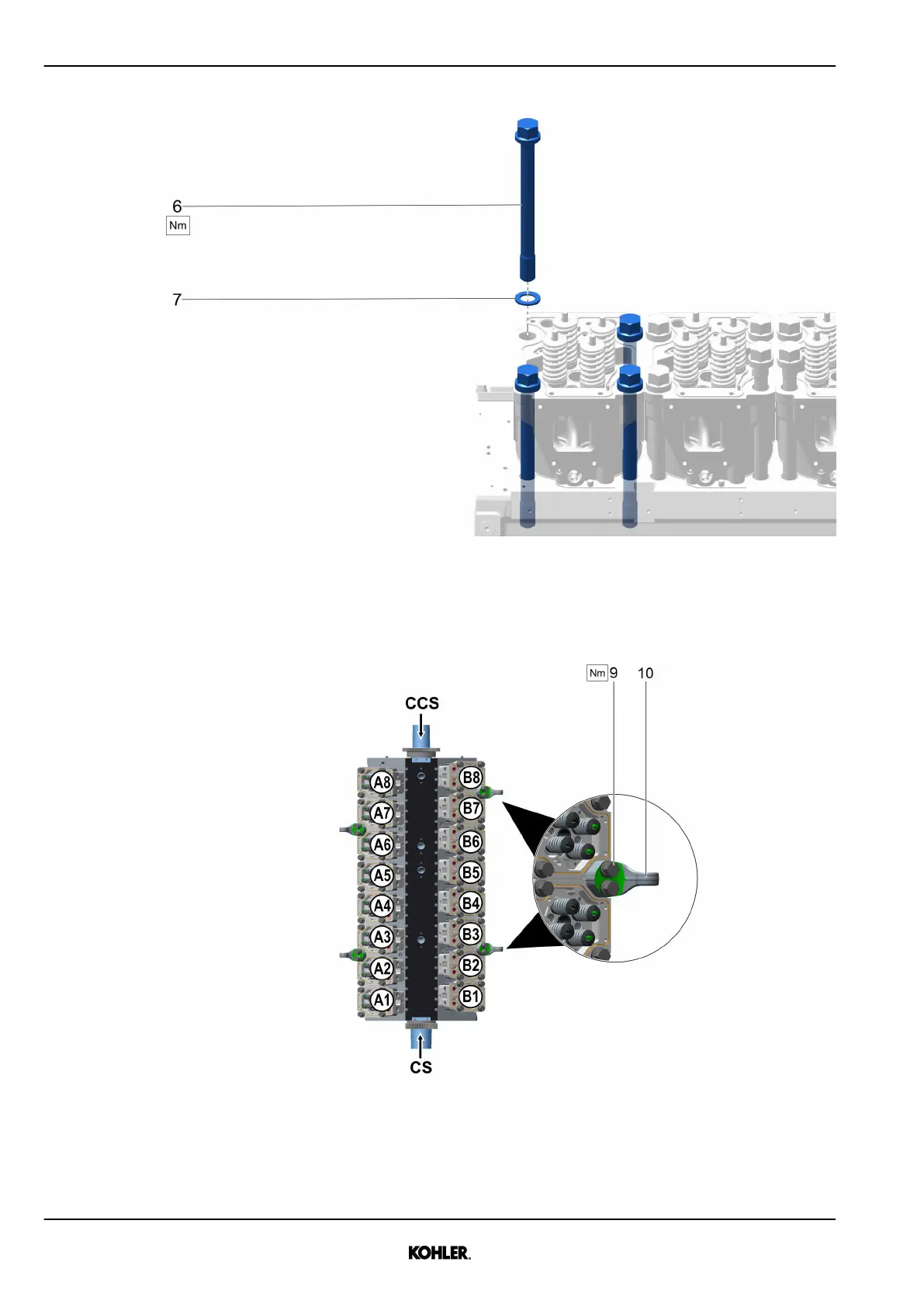

Fig. 99: Inserting cylinder head bolts
u Lubricate bolts 6 and washers 7 with Castrol Optimol paste white T.
u Insert and tighten the bolts.
Fig. 100: Mounting lifting lug
u Mount lifting lug 10 with extended length bolts 9.
