Maintenance Operation and Maintenance Manual
Lubricating system
Ensure that:
q Preparatory maintenance activities are fullfilled. (For more information see: 5.5 Preparatory
maintenance activities, page 90)
q A container with the required capacity is ready.
q Original KOHLER oil filters with the seals are provided.
q A suitable drainage container is available.
q The required quantity of approved oil is provided. (For more information see: 5.11 Lubricants
and operating fluids, page 120)
The engine has several outlet bores to drain off lubricants and operating fluids.
The oil filter modules are attached to the engine on the right side.
Draining off Diesel engine oil

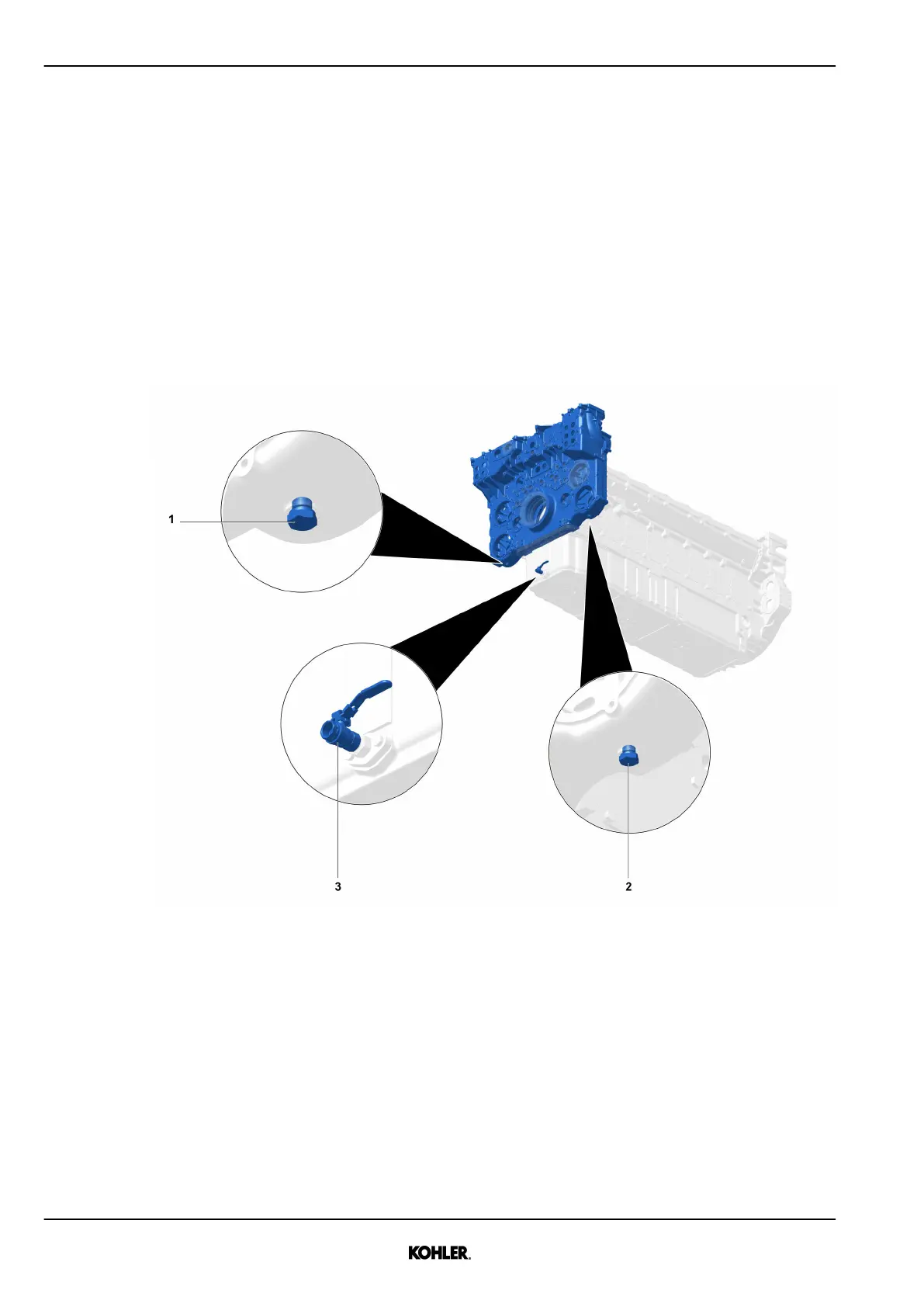

Fig. 69: Principal Oil drain point - engine rear side
1 Oil drain aggregate support. Engine right
side
3 Oil drain on oil pan
See next page for continuation of the image legend
