Product description Operation and Maintenance Manual
Technical description

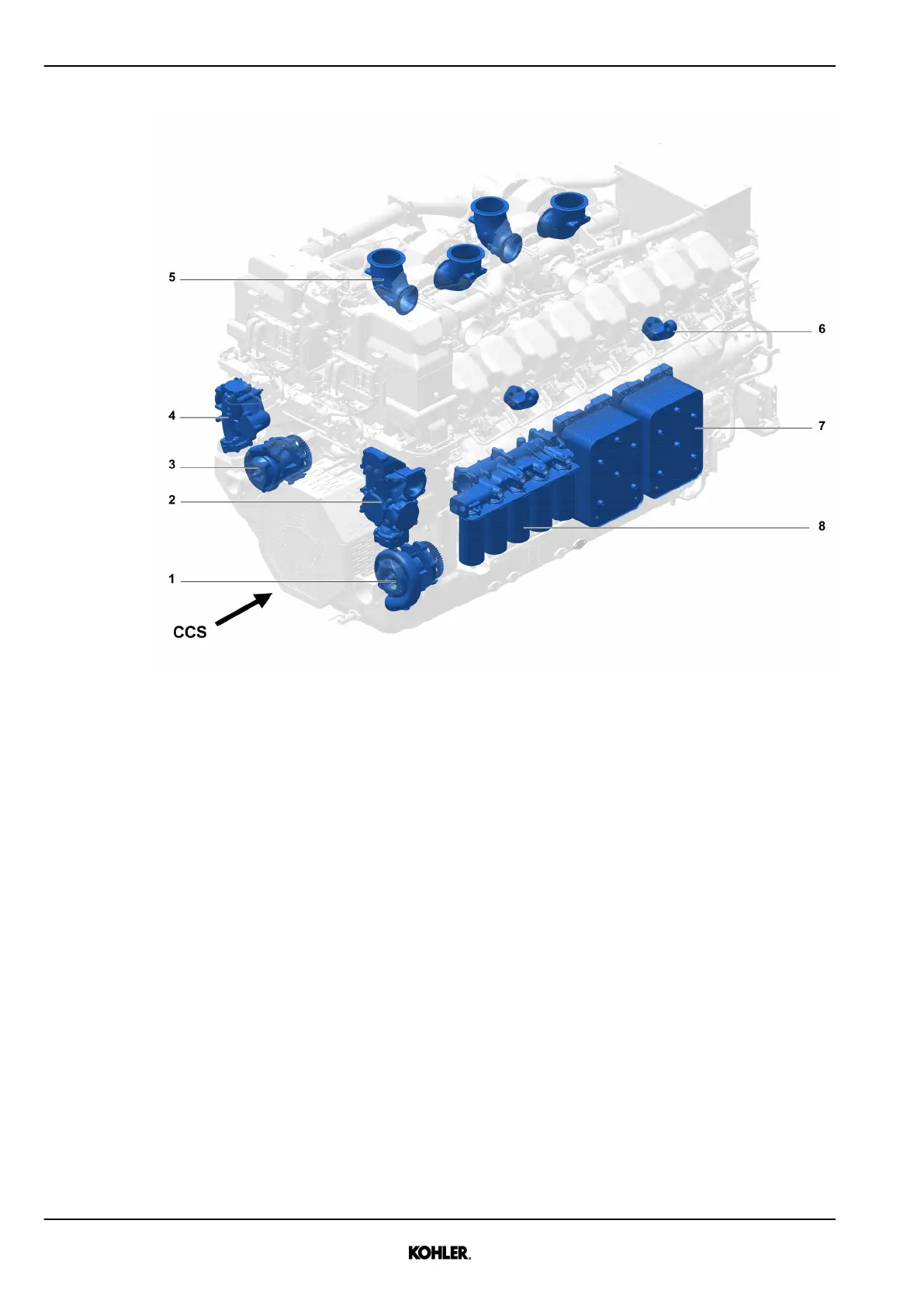

Fig. 2: Diesel engine / view from the damper side
CCS Engine front (vibration damper side) 5 Exhaust gas connection (x4)
1 Water pump high temperature 6 Lifting lug (x4)
2 Thermostat housing high temperature 7 Oil cooler (x2)
3 Water pump low temperature 8 Oil filter cartridge
4 Thermostat housing low temperature
18
© 2018 by Kohler Co. All rights reserved.
KD83V16 33521030601_0_1 EN_US
2018-07
