Operation and Maintenance Manual Product description
Technical description
– Captive screws
– Additional solution to fulfill the machine compliance with the applicable regulations.
Vibration damper cover
Technical solution
The vibration damper cover is a protective device fixed directly into the front end of the engine. It
ensures a global protection to the vibration damper environment while the engine is running.

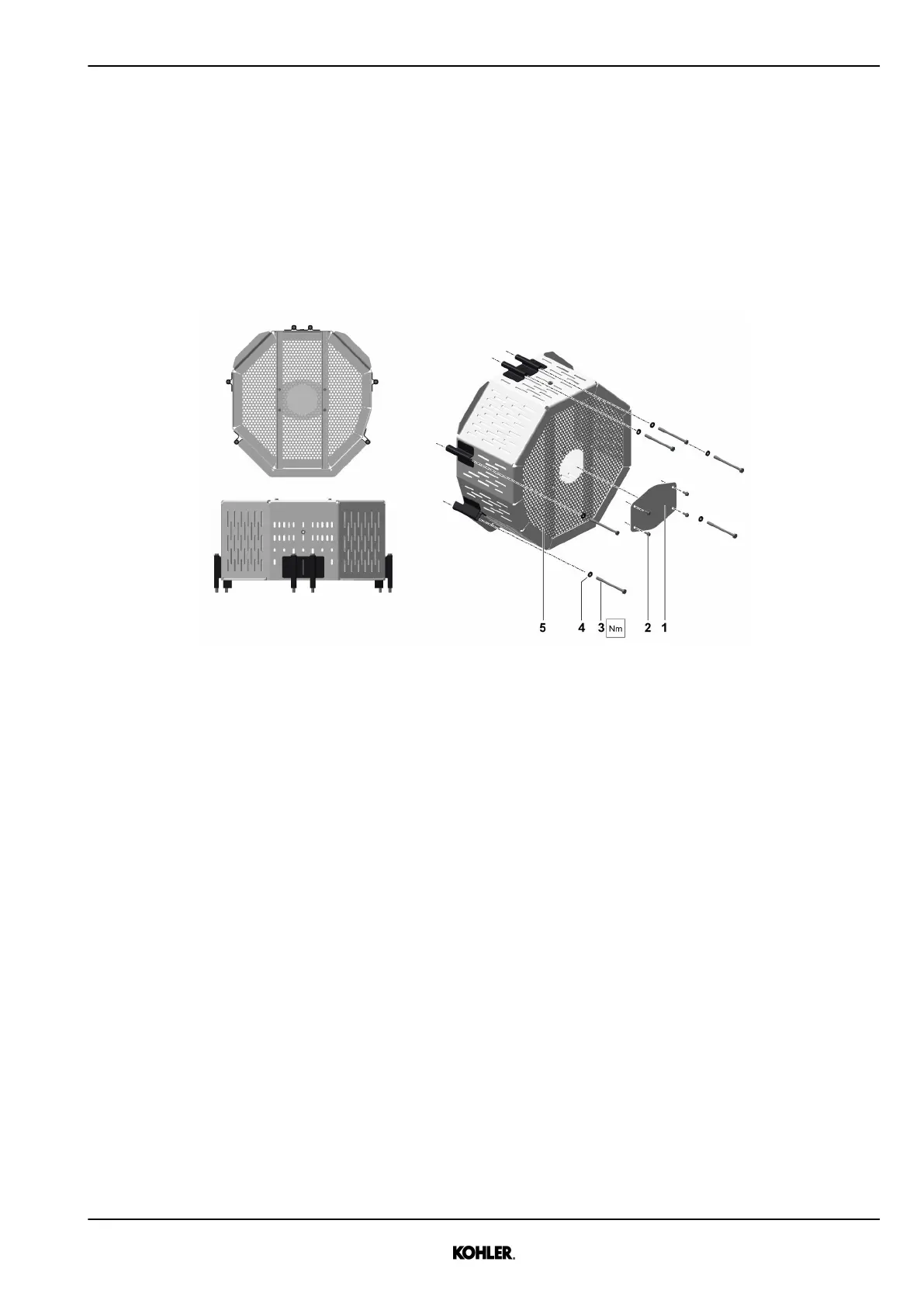

Fig. 15: Vibration damper cover details
1 Plate 4 Washer
2 Screw (M8) 5 Cover
3 Screw (M12)
Features
– Protection device ensuring insulation of moving parts
– Adapted fixation points
– Ease of (dis)-assembly, free of maintenance
– Additional solution to fulfill the machine compliance with the applicable regulations.
KD83V16 33521030601_0_1 EN_US
2018-07
© 2018 by Kohler Co. All rights reserved.
29
