Product description Operation and Maintenance Manual
Technical description

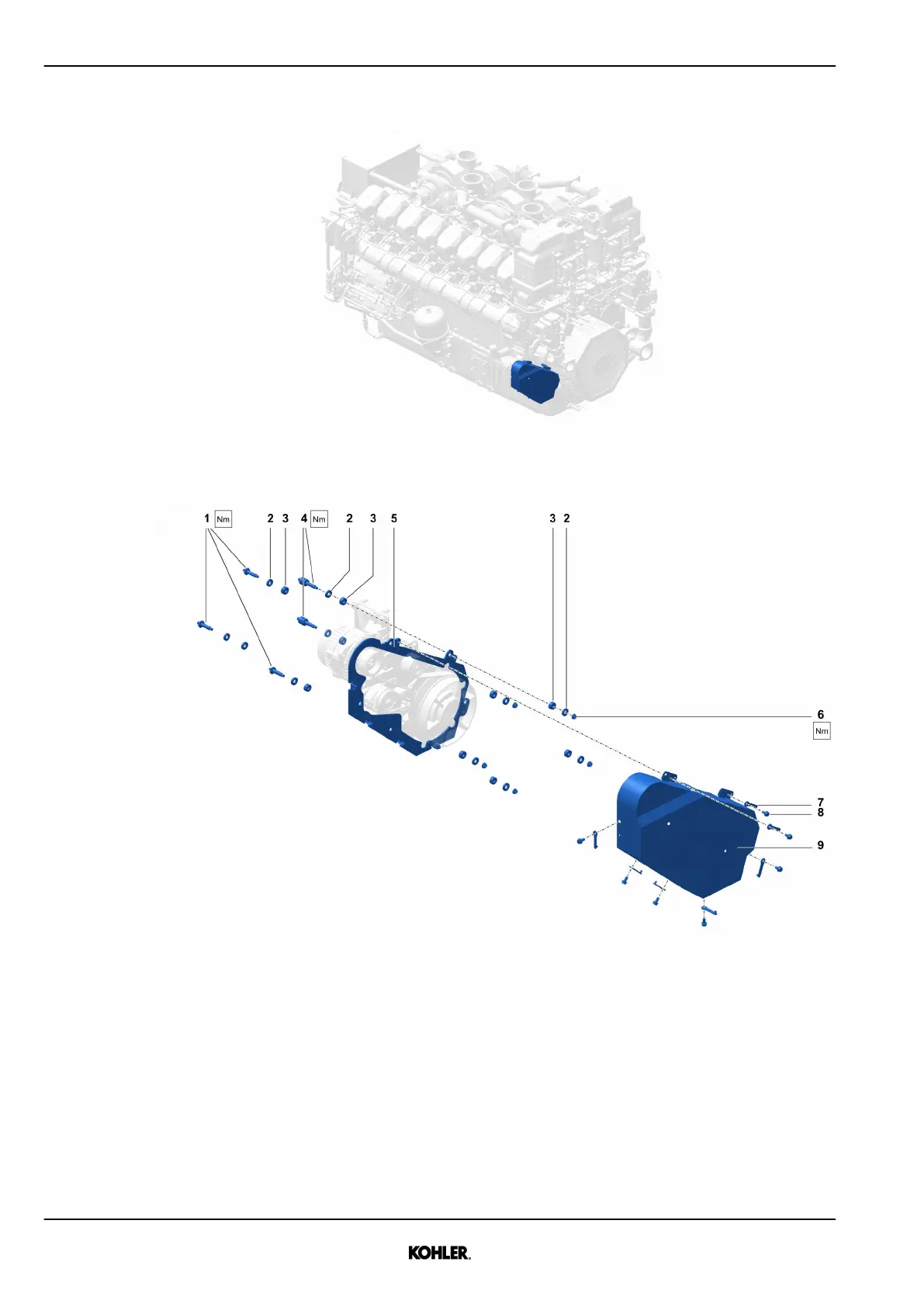

Fig. 13: Battery charging alternator cover
Fig. 14: Task overview
1 Pin 6 Nut (M8)
2 Distance sleeve 7 Lock washer
3 Vibration damper 8 Captive screw (M8)
4 Pin 9 Cover - front side
5 Cover - back side
Features
– Protection device ensuring insulation of moving parts
– Adapted fixation points
– Ease of (dis)-assembly, free of maintenance
