4
23
MIN
MAX
B
B
Fig. 4.1
Fig. 4.2
C
A
Fig. 4.4
Fig. 4.3
MIN
MAX
B
B
B
G
C
Fig. 4.5
E
D
A
F
INFORMATION ABOUT MAINTENANCE
EN

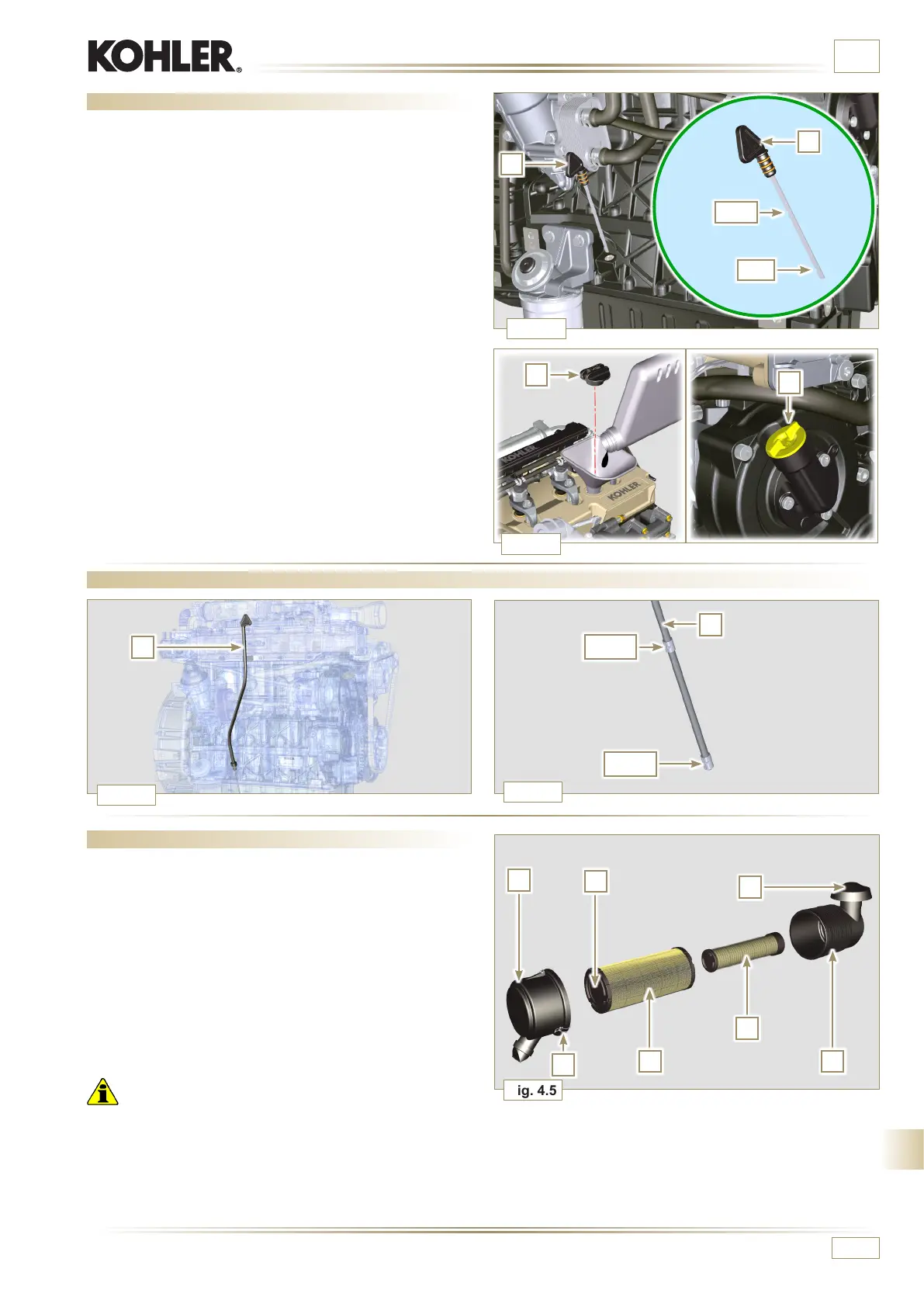

4.3 Oil level check
1 - Remove the oil dipstick B and check that the level is up to
MAX.
2 - Pour in recommended oil until reaching the MAX level
mark.
3 - Reinstall the oil dipstick B completely.
4 - Re-tighten the cap A and/or C (Fig. 4.2).
4.4 Oil dipstick on cylinder head
4.5 Air lter check
NOTE: Components not necessarily supplied by KOHLER.
1 - Release the two clasps F of the cover A.
2 - Remove the cartridges B and G.
3 - Remove the cap C.
4 - Clean the inside components A, C and D with a damp
cloth.
5 - Do not use compressed air, repeatedly tap the front side
E on a at surface.
Important
• When the cartridge G is dirty, do not clean it but replace
cartridges B and G.
6 - Reinstall:
- cartridges G and B.
- the cap C.
- the cover A checking the right tightness of clasps F.
UM KDI 1903TCR_2504TCR _ cod. ED0053029490 - 2° ed_rev. 01
