5
29
Fig. 5.2
50 Nm
D
B
D
E
A
A
C
Fig. 5.1
Fig. 5.3
INFORMATION ABOUT REPLACEMENTS
EN

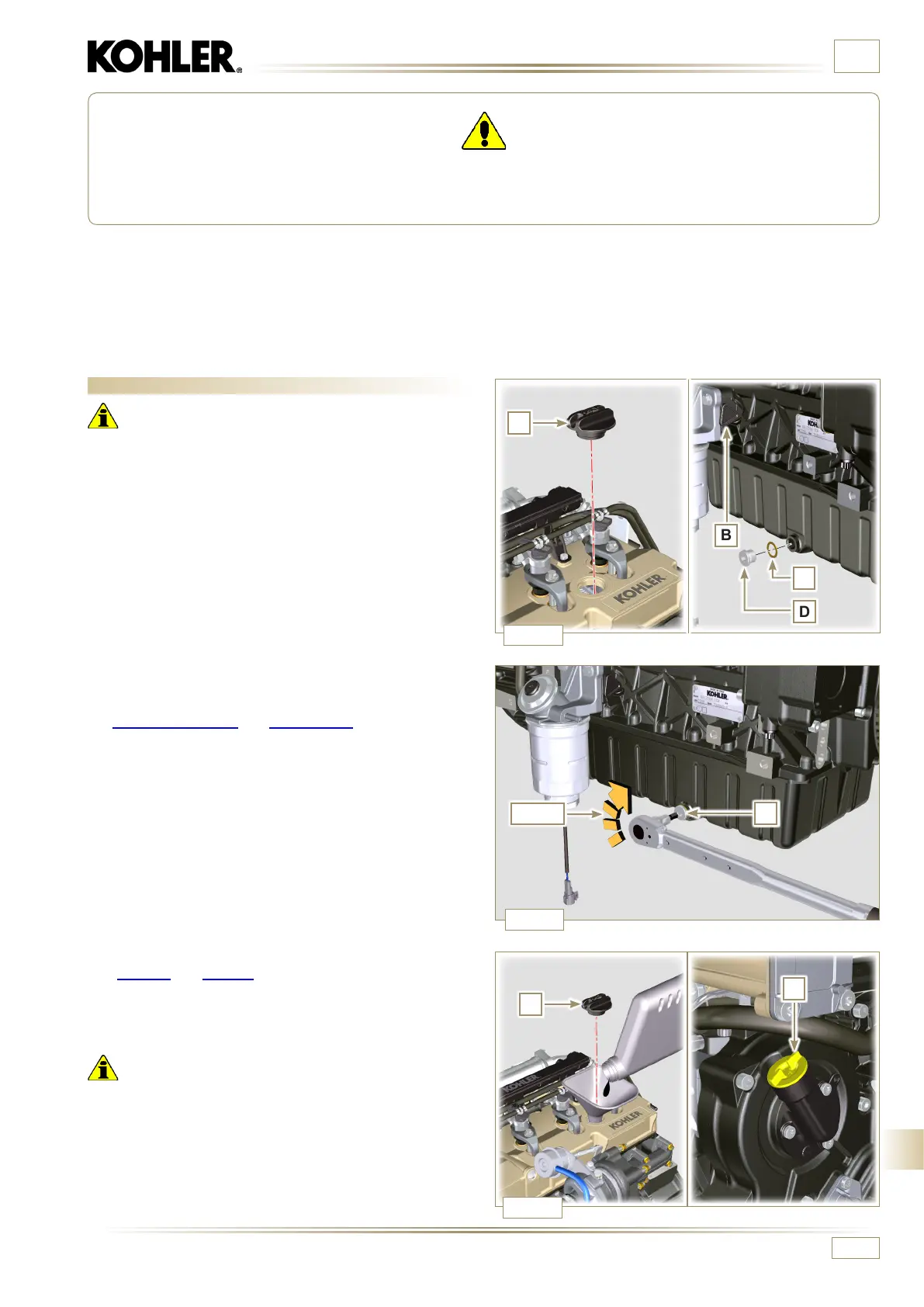

5.1 Engine oil replacement
Important
•Place engine on level surface to ensure accurate
measurementofoillevel.
NOTE: Perform this operation with warm engine, to get a
betterfluidityoftheoilandgetafulldischargeofoil
andimpuritiescontainedinit.
1 -LoosentheoilfillercapA(Fig. 5.1).
2 - RemovetheoildipstickB.
3 -Remove the oil drain plug D and the gasket E
(theoildrainplugisonbothsidesoftheoilsump).
4 - Drainoilinanappropriatecontainer.
(For the exhausted oil disposal, refer to
Par. 5.6 DISPOSAL and SCRAPPING).
5 - ReplacegasketE.
6 - TightenthedrainoilplugD(tighteningtorqueat35 Nm).
7 - Add the type and amount of oil recommended
(Tab. 1.1 andTab. 1.2).
8 - If the plug A is not accessible, use the oil
fillercapC.
Important
•DonotexceedtheMAXlevelonthedipstick.
Danger
Disconnectthenegativewire(-)fromthebatterytoavoidaccidentalenginestarting.
UM KDI 1903TCR_2504TCR _ cod. ED0053029490 - 2° ed_rev. 01
