INFORMATION ABOUT MAINTENANCE
EN

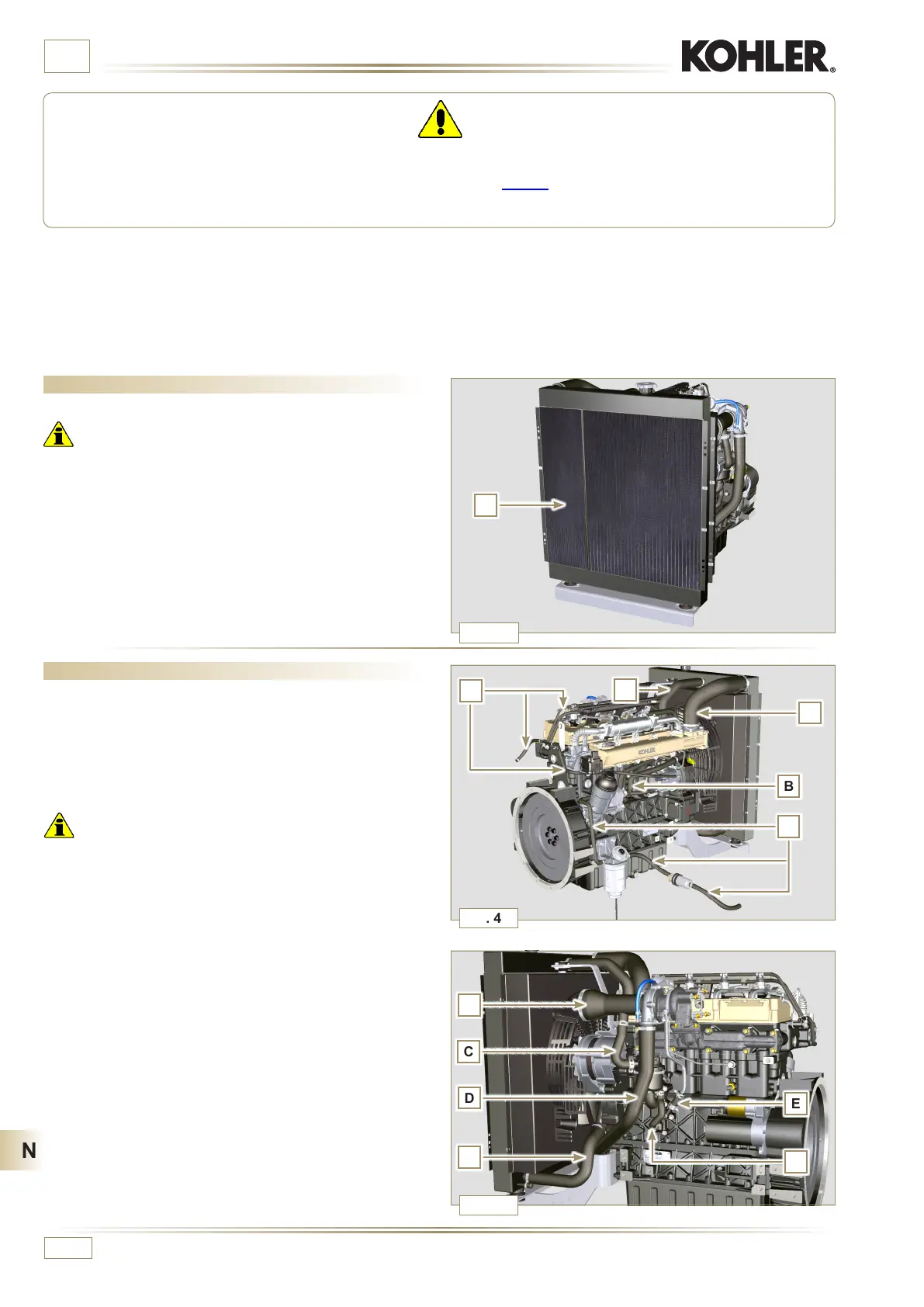

4.6 Check of the radiator heat-exchanger surface
NOTE: Component not necessarily supplied by KOHLER.
Important
• Wear safety goggles when using compressed air.
• The radiator heat-exchange surface must be cleaned on
both sides.
1 - Check the radiator heat-exchange surface D.
2 - Clean the surface with a brush soaked in special detergent
if it is clogged.
4.7 Rubber hoses check
The check is carried out by exerting a slight deection or
bending along the pipe and near the hose clamps.
Components must be replaced if they have clear signs of
cracks, tears, cuts, leaks and do not retain a certain degree
of elasticity.
Important
• If hoses are damaged contact an authorized KOHLER
workshop.
Danger
For safety precautions see Cap. 2.
1 - Check that the:
- Fuel system hoses A are intact.
- Cooling circuit hoses B.
- Vent system pipes C.
- Air system ducts D.
- Oil return circuit hose E.
