TP-6836 4/1422 Section 2 Installation
1
ADV-8610
1. Engine start and auxiliary contact connections

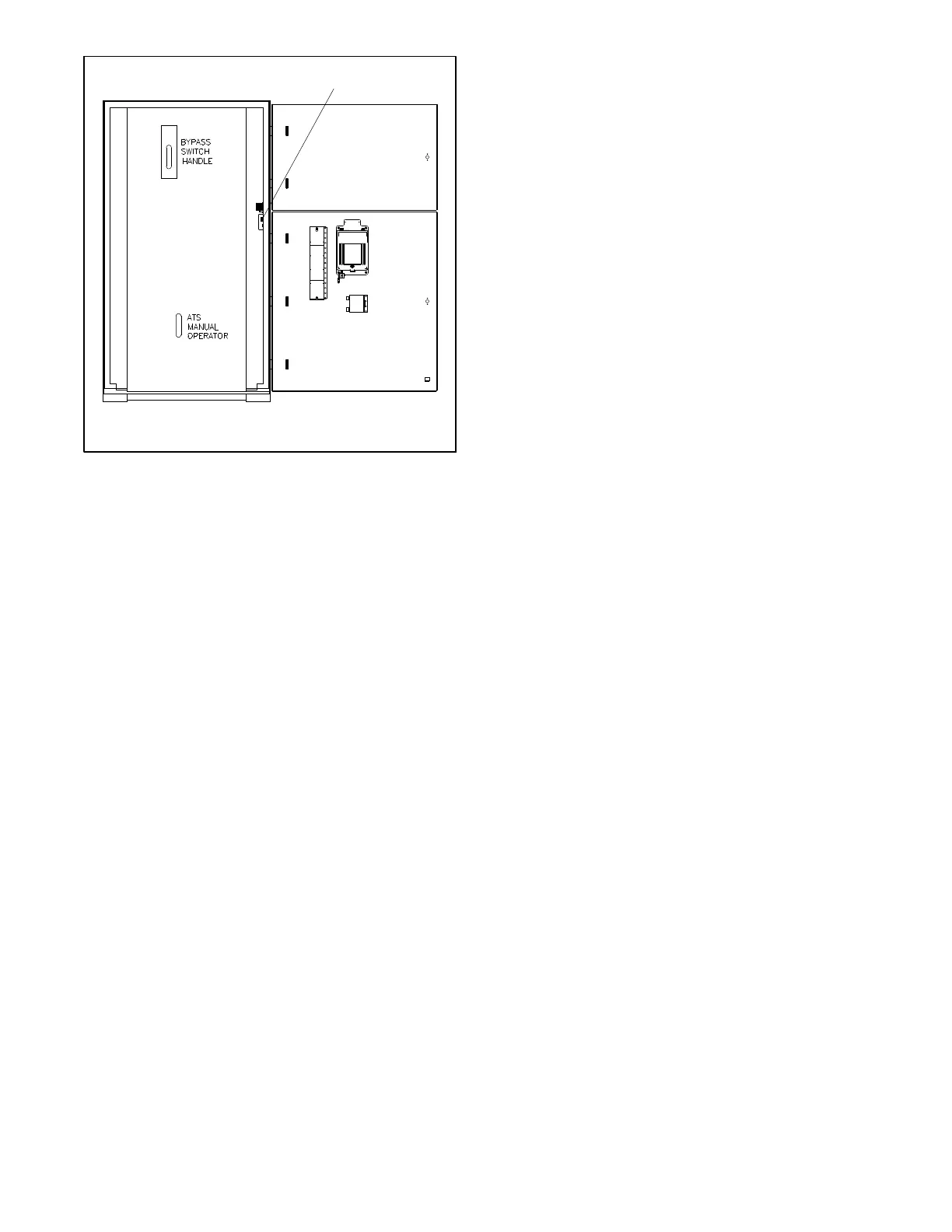

Figure 2-11 Engine Start and Auxiliary Contacts,
1600--3000 Amp Models
2.8 Communication and
Accessory Connections
See Section 4 for accessory and communication
connection instructions.
2.9 Functional Tests
After completion of the mechanical installation and all
electrical connections, perform the functional tests
described in Section 6. The procedures in Section 6 are
required to c omplete the installation and startup of the
transfer switch.
