Kohler OnCue Plus RDC User Manual

TP-6928 1/1412 Section 1 System Information and Installation
1.7.2 RDC2 with APM
The PowerSyncr Automatic Paralleling Module ( APM)
includes two OnCuer Plus activation codes, one for
each paralleled generator set. Each generator set must
be connected to the router or modem. A
customer-provided hub may be used to connect the two
generator sets to the router or modem, if necessary.
SeeFigure1-4. AlsoseeSection1.7.1.
Tablet *
RDC2
Generator Set Controller
Router *
Cable or
DSL
Modem *
* Customer-provided
[ See module installation instructions for RBUS connection information.
] The load shed kit, if equipped, is installed inside the ATS enclosure.
UPS *
(optional)
PC/
laptop *
Kohlerr System
Multiple PCs can
be connected.
ATS
LCM or
Load
Shed
Kit ]
PIM
TP-- 6796
RDC2
Generator Set Controller
APM
RBUS connections [
Ethernet cables *
Smart phone*
OnCue Plus
Server on the
Internet

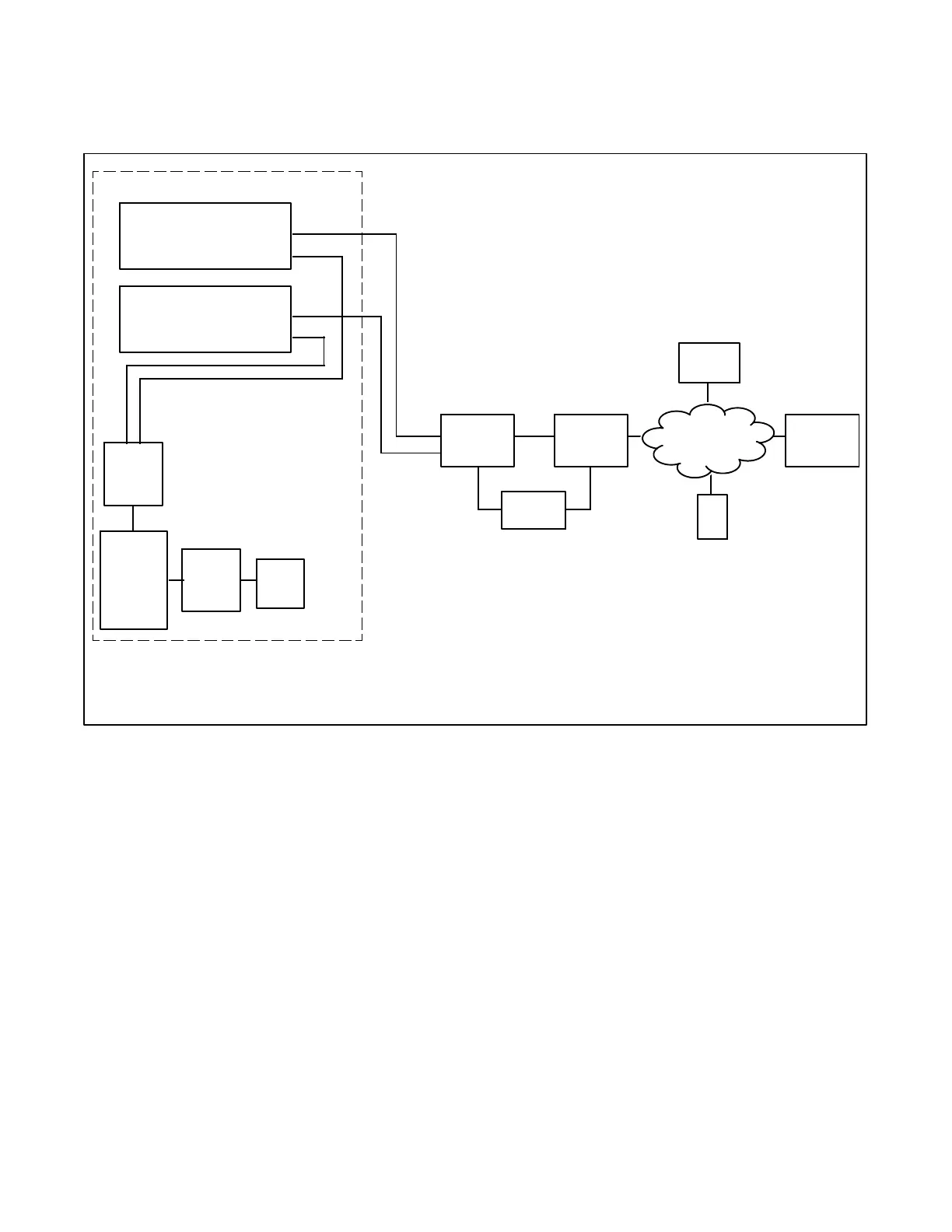

Figure 1-4 Two 14RESA or 20RESA Single-Phase Generator Sets with the PowerSyncr Automatic Paralleling
Module (APM)
