Kohler RDT User Manual

TT-1403 4/16 3
2 Installation Procedure
Note: For factory-installed exerciser kits, proceed to
section 5.
1. Disable the generator set to prevent accidental
starting:
a. Shutdown the generator set by either moving
the generator set master switch to OFF or by
pressing the OFF/RESET button on the
generator set controller.
b. Disconnect power to the battery charger, if
equipped.
c. Disconnect the generator set engine starting
battery, negative (--) lead first.
2. Disconnect power to the transfer switch before
opening the ATS enclosure.
2.1 Mounting, 100--200 Amp Model RDT
SeeFigure3.
1. Install timer mounting bracket GM64057 over the
controller bracket as shown in Figure 3. Use the
existing controller bracket nuts to secure the timer
mounting bracket to the bottom 2 studs.
2. Insert the timer through the opening in the bracket.
Secure the timer to the four standoffs using four
mounting screws X-49-2 provided with the kit.
3. Proceed to the Wiring Section for timer
connections.
Note: For 100 Amp models: Insert the lead ring
terminals through the slot under the bus and
under the flat washer on the load lug. See
Figure 3.
GM47597--KP2
GM38798
1
1. Mounting bracket GM64057
2. Timer GM64028
3. Screws X-49-2 (qty. 4)
4. Load lugs. See step 3 and note, above.
2
3
4
GM47597

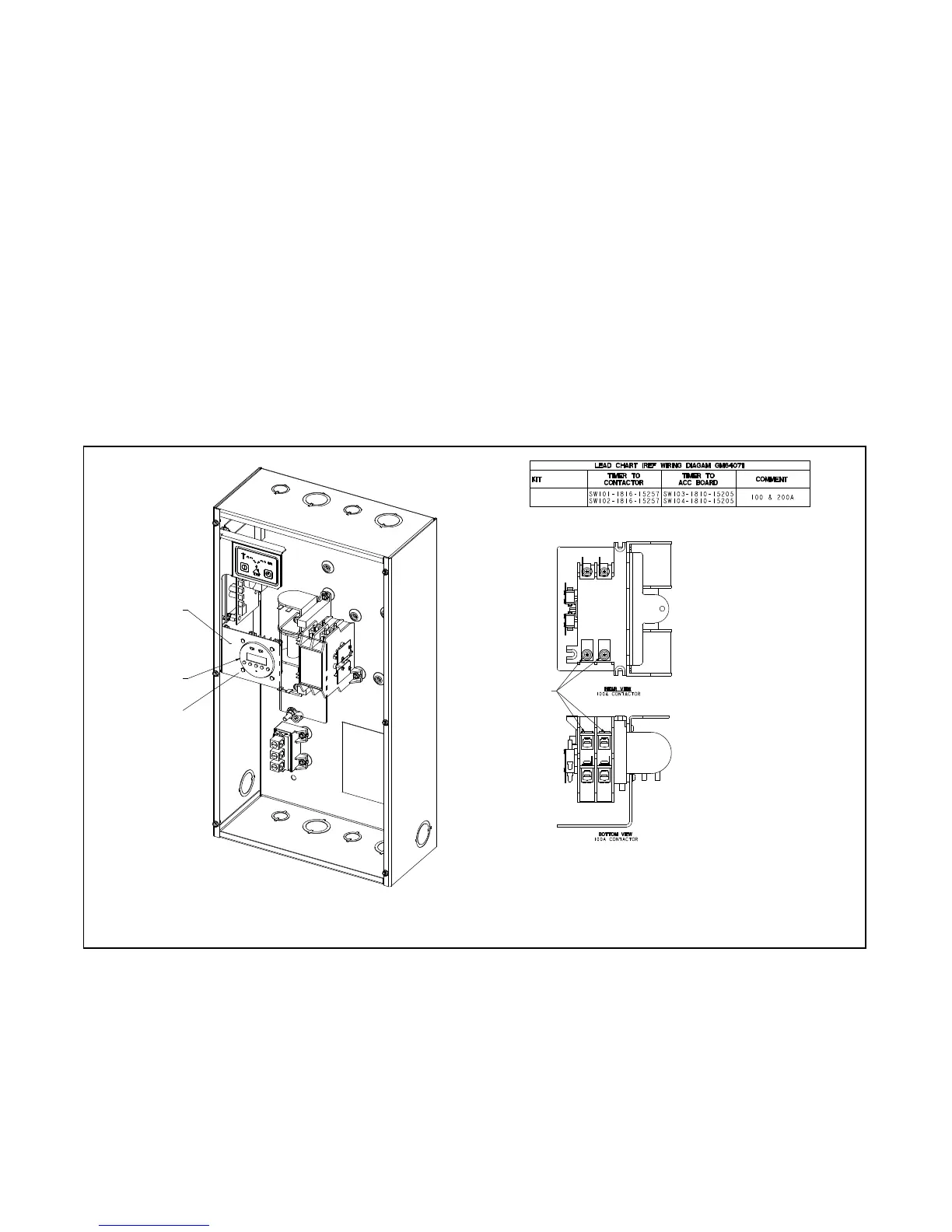

Figure 3 Mounting, 100--200 Amp Model RDT
