6 TT-1403 4/16
3 Wiring
Hazardous voltage.
Will cause severe injury or death.
Disconnect all power sources before
opening the enclosure.
DANGER
Short circuits. Hazardous voltage/current can cause
severe injury or death. Short circuits can cause bodily injury
and/or equipment damage. Do not contact electrical
connections with tools or jewelry while making adjustments or
repairs. Remove all jewelry before servicing the equipment.
Wiring must comply with the National Electrical Code
and applicable local codes.
Note: Check that the supply voltage matches the
voltage marked on the unit. Wiring to incorrect
voltage will void the warranty.
3.1 RDT Models
1. Verify that power has been disconnected as
described in Section 2, Installation Procedure.
2. Use the leads supplied with the kit to connect the
timer according to the wiring diagrams. See
Figure 8.
Note: For 100 Amp models: Insert the lead ring
terminals through the slot under the bus and
under the flat washer on the load lug. See
Figure 3.
GM64071
1. Accessory Board
2. DIP - Switches
3. Timer
4. Contactor (200Amp Shown)
1
2
3
4

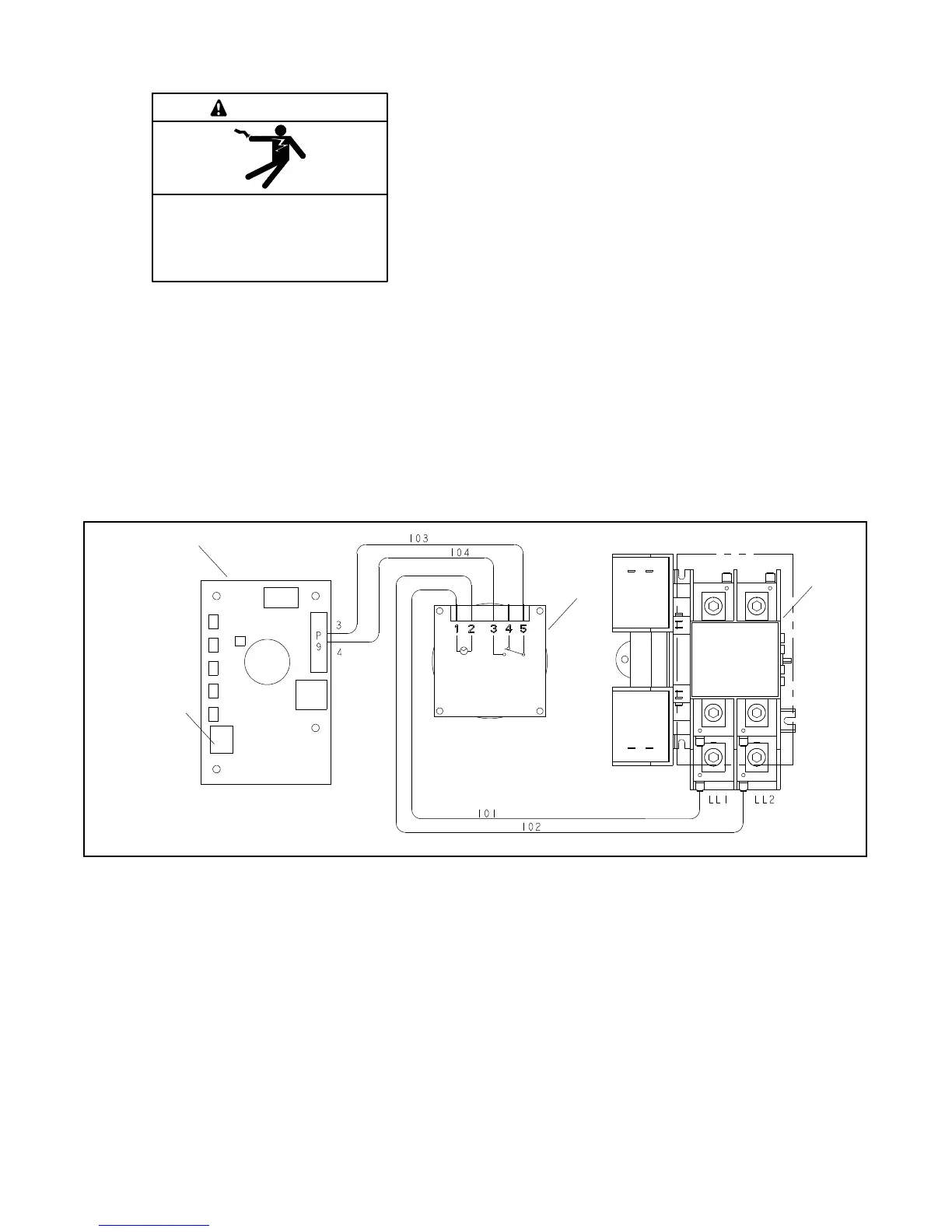

Figure 8 Wiring Diagram for RDT Models
