5
Installation Instructions
Installing the Cabinet into the Wall
Follow the steps listed below to install the cabinet into the wall
1. Remove existing rear grille as shown on Page 4 of this manual
and replace with provided louvered rear panel.
2. Attach (1) 1”x ⅜” x 25” long seal in the center at the top of the
sleeve. Remove the backing paper and press into position.
3. Attach (2) 1” x ⅜” x 14” seals to the left and right sides of the
sleeve.
4. Attach (2) 1” x ¾” x 14” long seals vertically 4 ½” from the left
side of the sleeve .Attach the other 1” x ¾” x 14” long seal 4” from
the right side of the sleeve.
5. Center unit and gently slide unit into sleeve.
6. Before sliding all-the-way back, remove 2nd screw from front on
left side of unit.
7. Remove the plastic washer from the screw.
8. Screw and attach the other end of the ground wire to the unit as
shown in picture. Make sure that the toothed washer is against the
cabinet.
9. Slide the unit completely to the rear to ensure a good seal,
making sure the ground wire does not become tangled.
Installing the Grille
This units increased performance characteristics result from having
two rear air intakes. It is very important that these installation
instructions are followed so your unit can operate a maximum
efficiency. If this is an existing sleeve, and there is an existing rear
grille, it needs to be replaced by one that has been shipped with the
unit in the accessory kit.
NOTE: For increased efficiency, utilize the provided louvered rear
panel.
1. Remove the existing grille.
2. Place the grille included with the new air conditioner towards the
rear of the sleeve.
3. Mark through the hole positions.
4. Drill through the sleeves flanges with a ⅛” drill bit.
5. Attached the new grille with self-threading screws and washers.

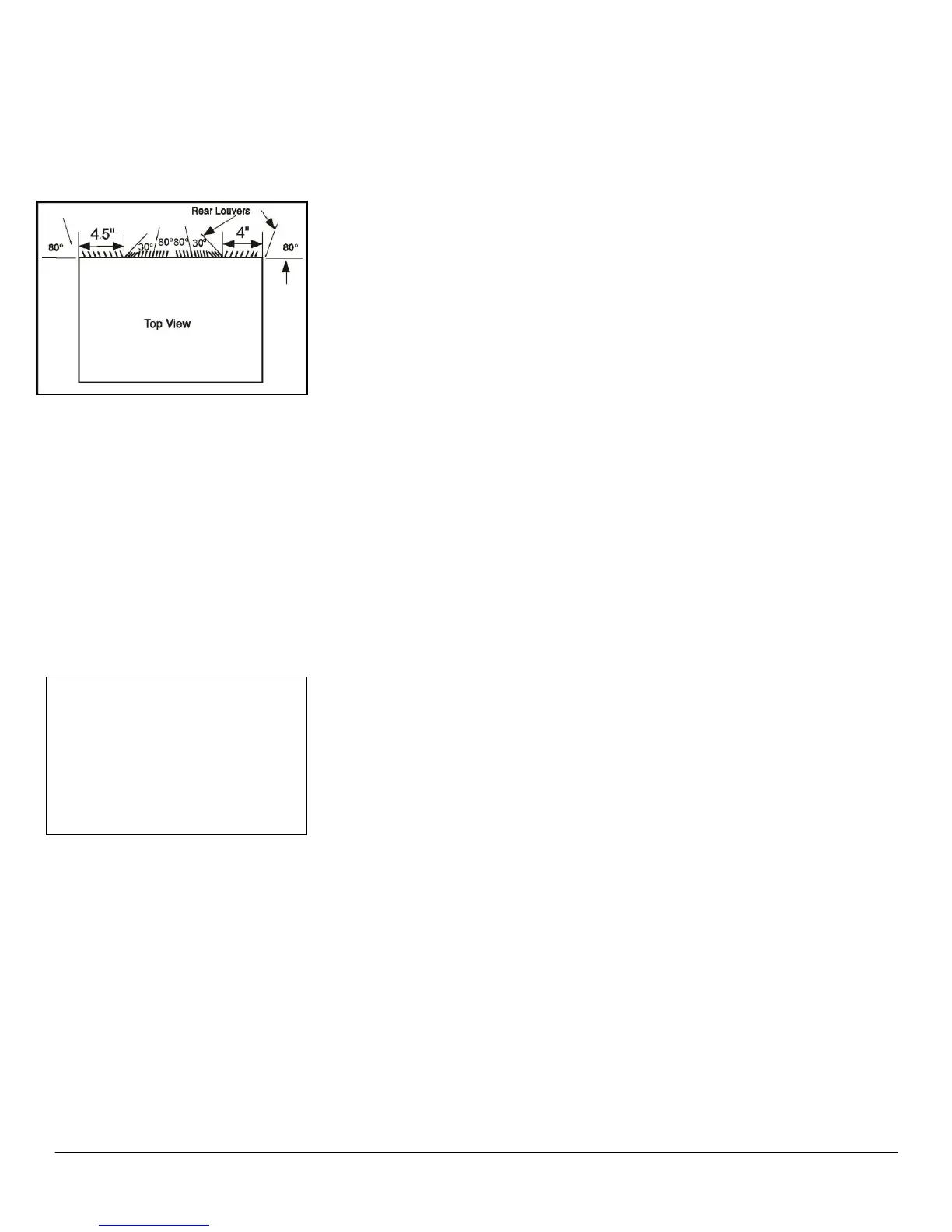

6. It is VERY IMPORTANT that the grille is placed exactly as shown
below.
7. Most decorative exterior grilles may be left in place as long as
the proper interior air direction grille is installed.
NOTE: You may need to
drill holes in flange of
existing sleeve to match
new rear grille.
