Kolida K3 IMU - §2.1 Bottom Components

K3 IMU
- 8 -
§2.1 Bottom Components
Component
Description
Speaker
Mode setting and working status prompt
SN label
Apply for a registration code, Bluetooth ID
Battery indicator
Real-time indication of battery level.
USB interface
1. USB for data transmission and Ethernet port for login web
interface.
2.Battery charging port.
UHF antenna interface
Install UHF antenna.
5-pin LEMO port
1.As a power port connected with an external power supply
device.
2. As a differential transmission port connected with an
external radio.
3.As a serial port to check data output and debug.

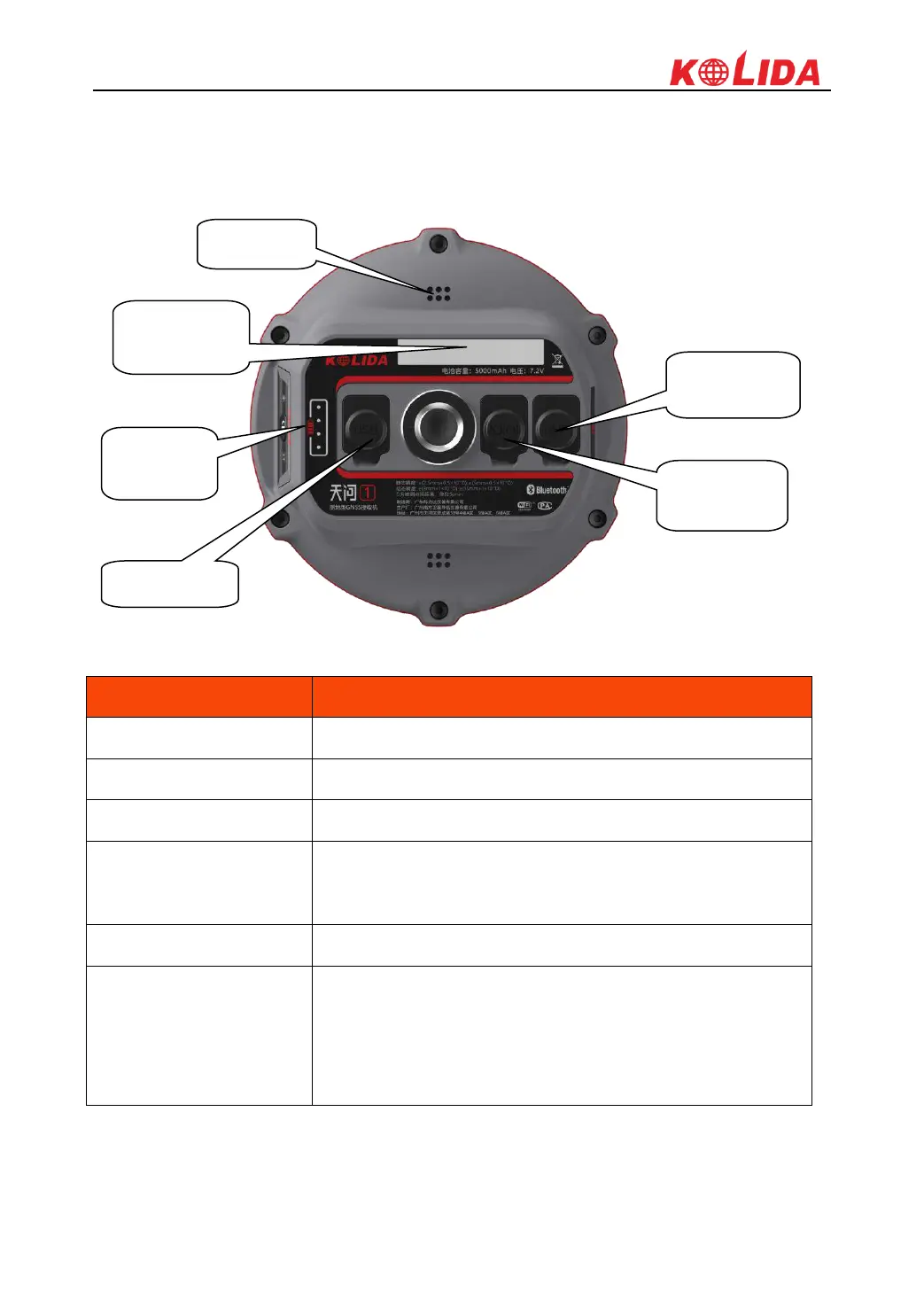

5-Pin
LEMO Port
USB interface
UHF antenna
interface
Speaker
Serial number
Label
Battery
indicator
