Kolver EDU 2AE/TOP/TA - Page 102

Vers. 190121
PL..CA/FN2

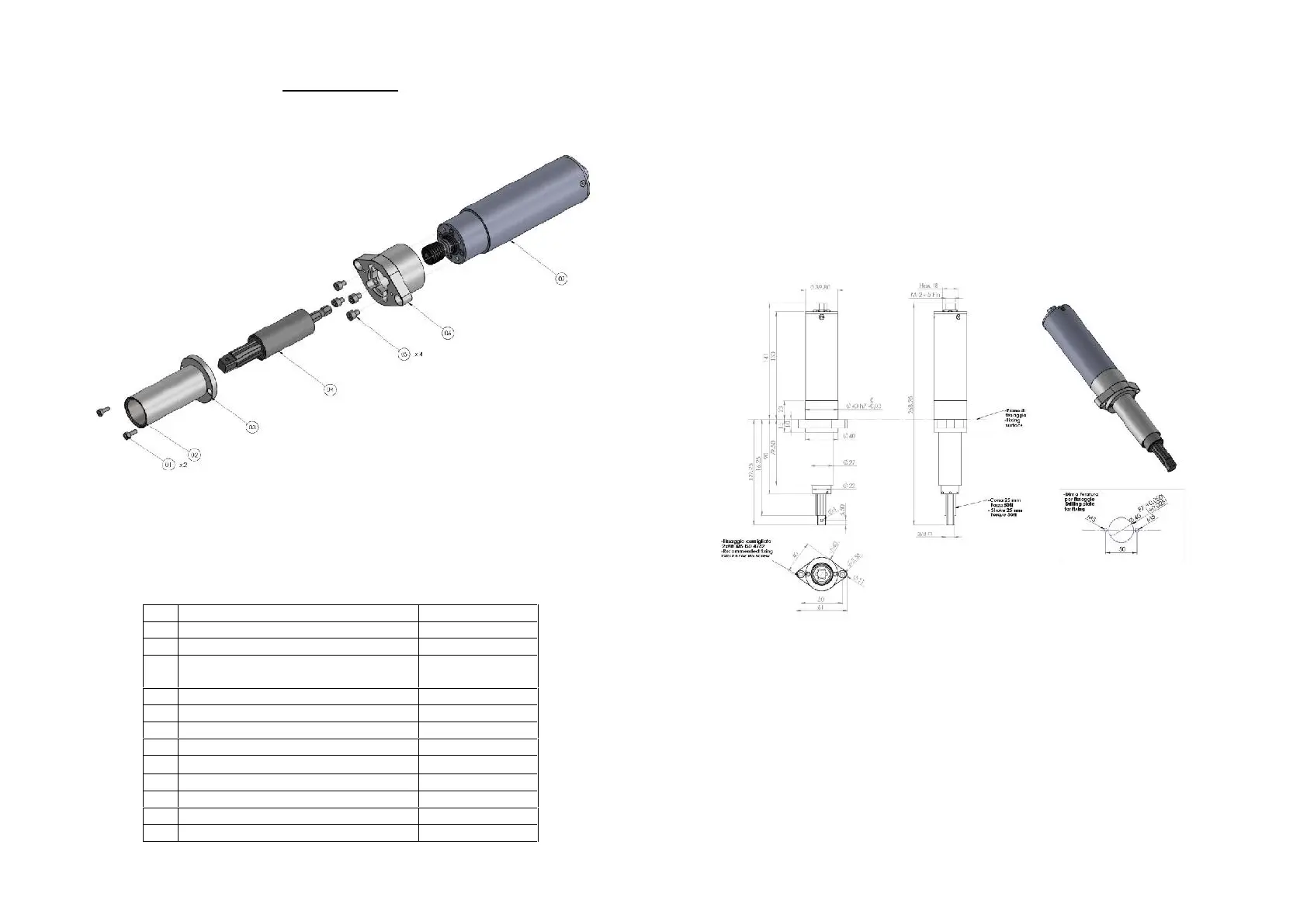

ESPLOSO/ EXPLODED VIEW
PARTI DI RICAMBIO/ SPARE PARTS
RIF
DESCRIZIONE/ DESCRIPTION
COD.
1
Vite/ Screw M3x8 (2)
231508/ZN
2
Permaglide
800317/1
3
Bussola guida telescopica/ Telescopic
drive bush
234548
4
Compensatore/ Axial compensator
800320
5
Vite/ Screw M4x5 (4)
231502
6
Flangia supporto/ Support plate
234547
Cavo/ Cable 5 pin 2,5 mt.
200063
7
Avvitatore/ Screwdriver:
PLUTO3CA
130303
PLUTO6CA
133206
PLUTO10CA/N
133211/N
PLUTO15CA/N
133216/N
Vers. 190121
INGOMBRO/ DRAWING
