PL20CA/FN

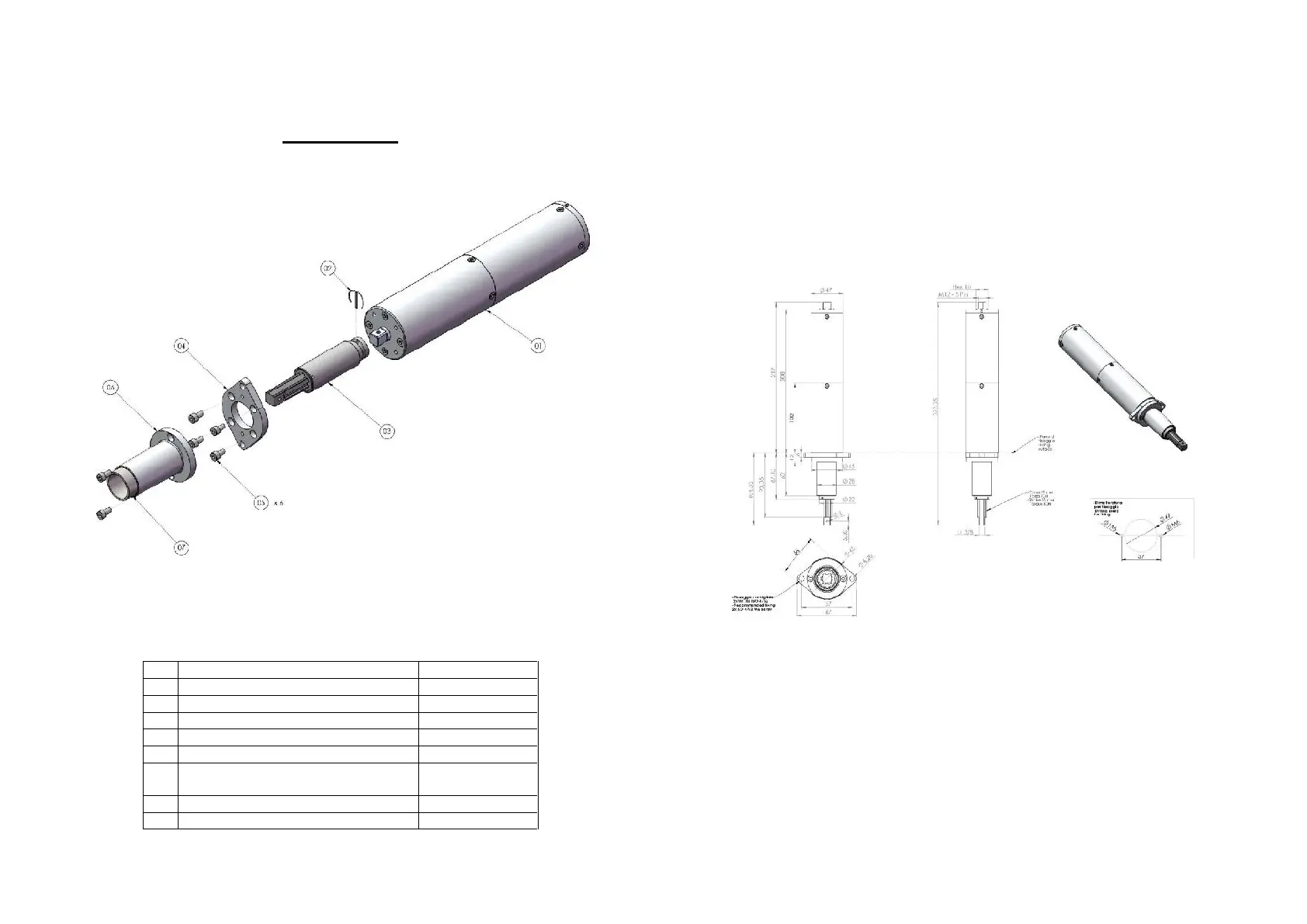

ESPLOSO/ EXPLODED VIEW
PARTI DI RICAMBIO/ SPARE PARTS
RIF
DESCRIZIONE/ DESCRIPTION
COD.
1
PLUTO20CA
133221
2
Molla di sicurezza/ Safety spring
FE-1301C
3
Compensatore/ Axial compensator
800321
4
Flangia supporto/ Support plate
234510/20/3
5
Vite/ Screw M4x8 (6)
231505
6
Bussola guida telescopica/ Telescopic
drive bush
800302/20
7
Permaglide
800317/1
Cavo/ Cable 5 pin 2,5 mt.
200063
Vers. 190121
INGOMBRO/ DRAWING
