Kolver EDU 2AE/TOP/TA - Page 104

Vers. 190121
PL35CA/FN

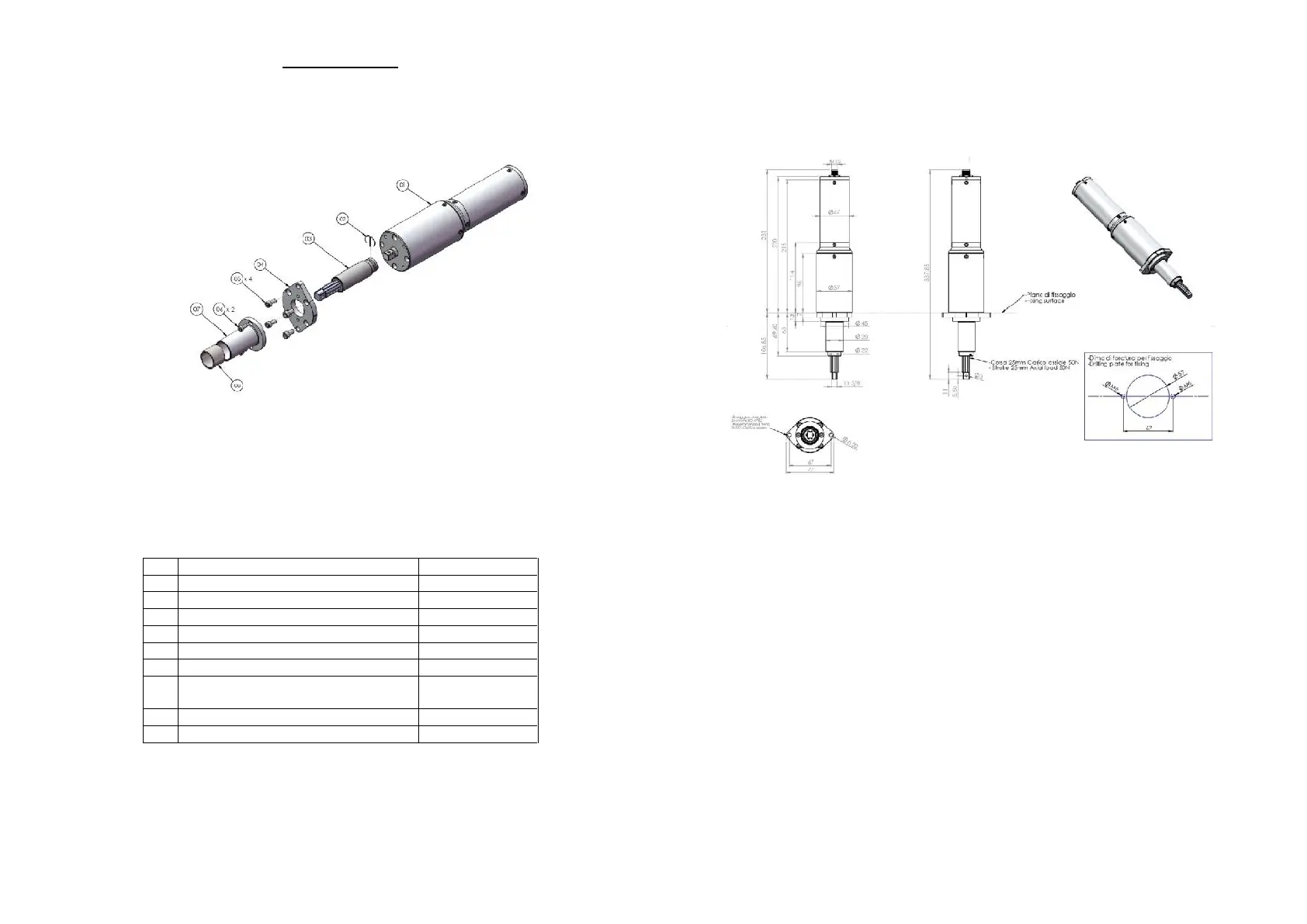

ESPLOSO/ EXPLODED VIEW
PARTI DI RICAMBIO/ SPARE PARTS
RIF
DESCRIZIONE/ DESCRIPTION
COD.
1
PLUTO35CA
133236
2
Molla di sicurezza/ Safety spring
FE-1301C
3
Compensatore/ Axial compensator
800321
4
Flangia supporto/ Support plate
234510/30/3
5
Vite/ Screw M5x10 (4)
231503
6
Vite/ Screw M4x8 (2)
231505
7
Bussola guida telescopica/ Telescopic
drive bush
800302/20
8
Permaglide
800317/1
Cavo/ Cable 5 pin 2,5 mt.
200063
Vers. 190121
INGOMBRO/ DRAWING
