Kolver EDU 2AE/TOP/TA - Page 105

Vers. 190121
PL50CA/FN

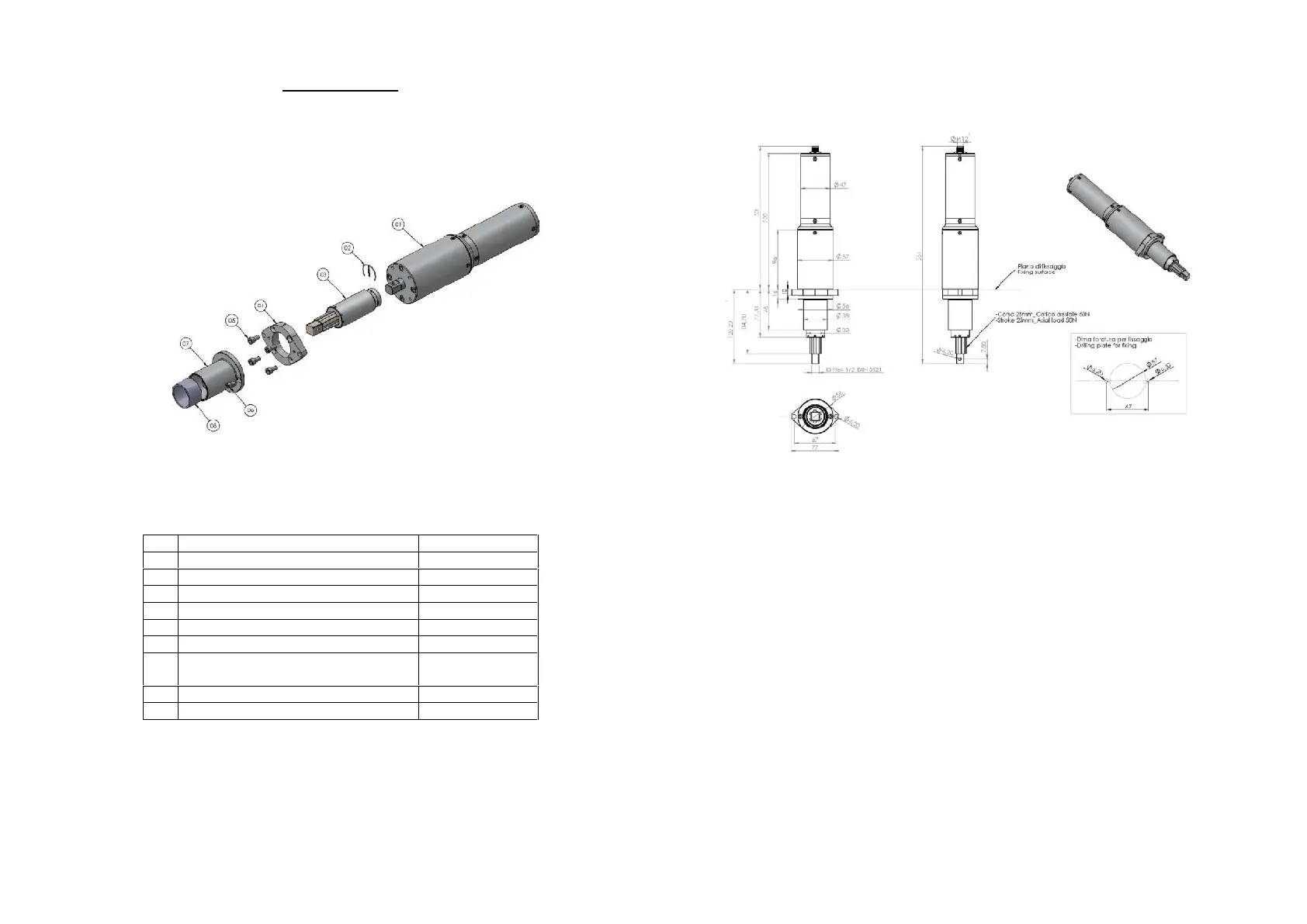

ESPLOSO/ EXPLODED VIEW
RIF
DESCRIZIONE/ DESCRIPTION
COD.
1
PLUTO50CA
133250
2
Molla di sicurezza/ Safety spring
FE-1401C
3
Compensatore/ Axial compensator
800319
4
Flangia supporto/ Support plate
234510/50
5
Vite/ Screw M5x10 (4)
231503
6
Vite/ Screw M4x8 (2)
231505
7
Bussola guida telescopica/ Telescopic
drive bush
800302/50
8
Permaglide
800327
Cavo/ Cable 5 pin 2,5 mt.
200063
Vers. 190121
INGOMBRO/ DRAWING
