Digital Signal Processing board, DSP-6x
Purpose and description
The DSP-6X is a general-purpose data acquisition, control and
signal processing microcomputer board. It is targeted for high
performance echo sounder applications. The board is remote
controlled by a host via Ethernet under the TCP/IP/UDP
protocol.
The DSP-6X is based on a signal processing microcomputer
from Analog Devices named ADSP-21062, also known as the
SHARC (Super Harvard Architecture Computer).
How it works
There are two Ethernet interfaces on the board. Both the DB-15
AUI connector and the RJ-45 UTP plug is accessed at the front
of the board. The DSP-6X communicate with an external host
via the TCP/IP/UDP Protocol.

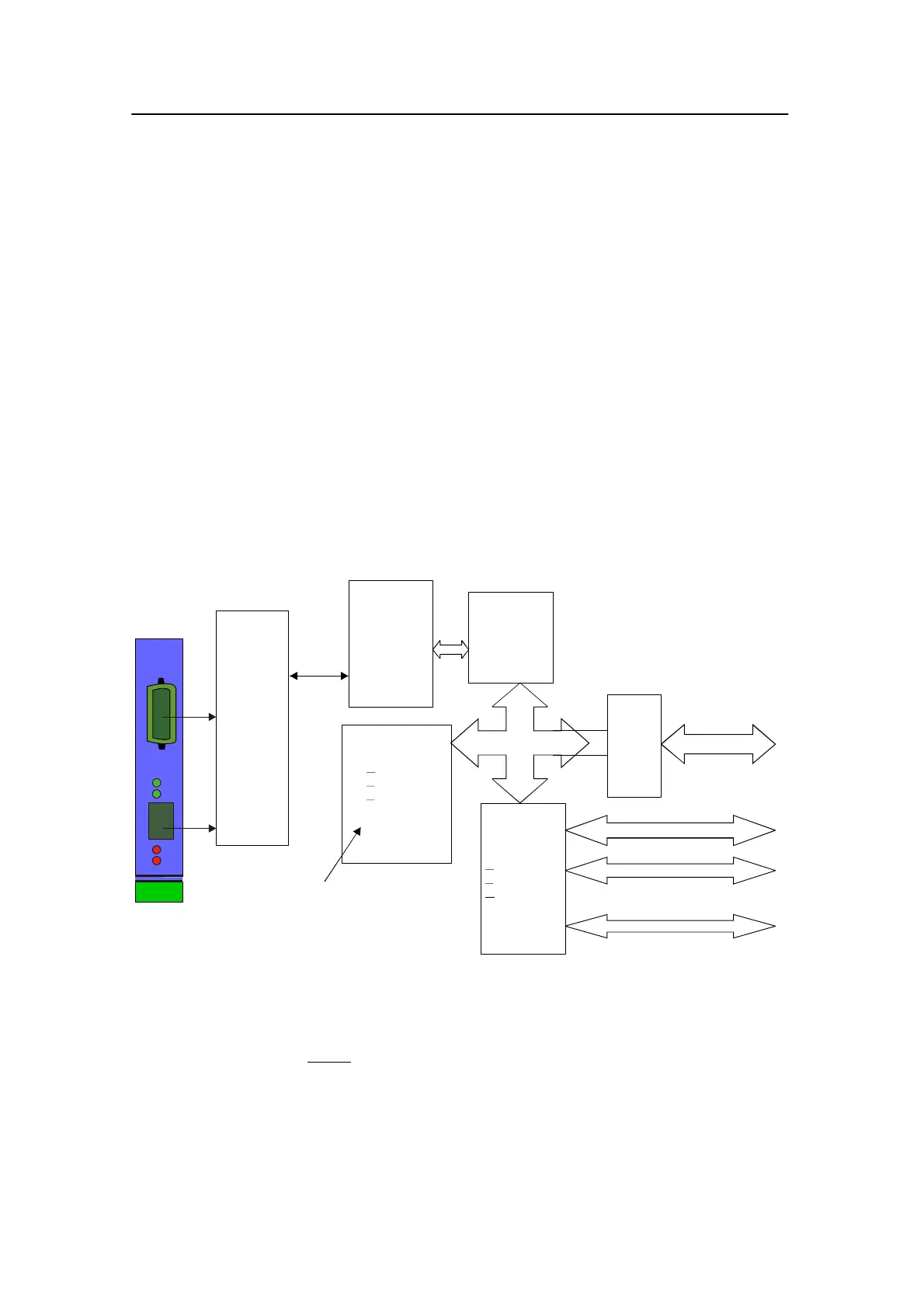

Figure 19 DSP-6x block diagram
Ethernet
converter
circuits
(TCP/IP
protocol)
Ethernet
Controller
DB-15
AUI
RJ-45
Dual Port
RAM
Rx/Tx
Ctrl.
Download of application
software and GPT config
Program via Ethernet
Data
Buffer
A
ddr./Data/Ctrl.Bus
32 bit Data Bus
PLD Download
8 bit Address Bus
Control lines
(CD 6754)
DSP
Ethernet
S1
S2
Ethernet
S1
S2
D
S
P
igital
ignal
rocessor
&
PROM
P
L
D
rogramable
ogic
evice
Facilities
LEDs
On the front panel of DSP-6X there are 4 LED indicators:
TX: Flashes when data is transmitted via Ethernet.
RX: Flashes when data is received via Ethernet (even if the data
is not for my Ethernet address).
