GPT description and maintenance
61
857-164688 / E
Note In order to prevent electrical noise pickup along the transducer
cable the screens must only be connected to chassis transducer
plug!
B
C
D
E
F
H
J
K
L
M
N
To chassis TD plug
(CD 6761)

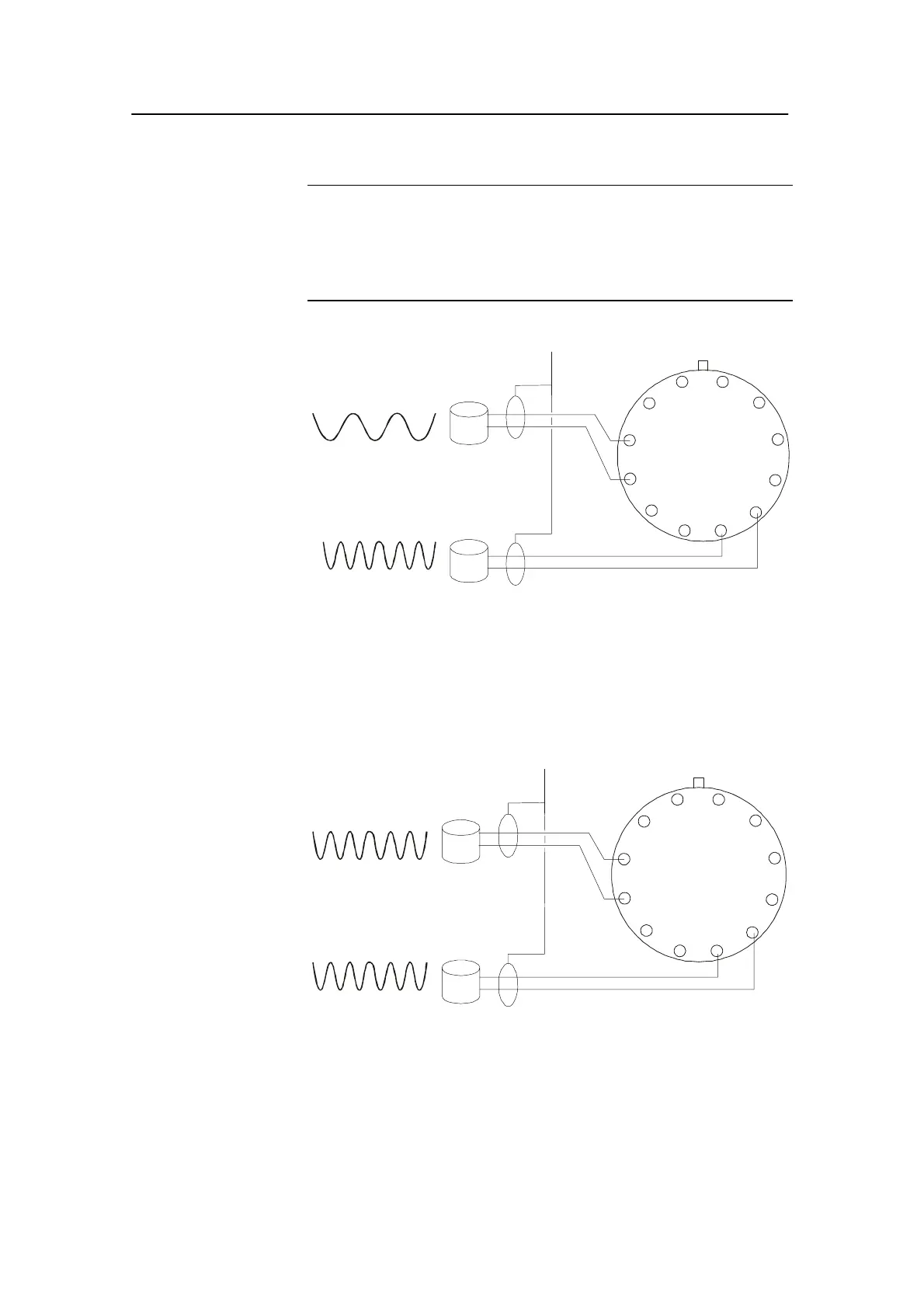

Dual Frequency Side Scan 1+1 kW. This GPT configuration
includes two transmitter/receiver boards. The two boards are
operated at the same frequency. The transducer for the port side
is connected to pin C and D, and the transducer for the starboard
side is connected to pin H and F. The cable screen is connected
to chassis TD plug.
B
C
D
E
F
H
J
K
L
M
N
To chassis TD plug
(CD 6761)
Figure 24 Parallel connections
Ethernet AUI Connector. The original Attachment Unit
Interface for attachment to a thick Ethernet network is provided;
IEEE 802.3 compliant 10 Mbit/s Ethernet. This interface
includes power and differential signals for transmit, receive and
collision presence.
