EA 600 / Base version
76
857-164688 / E
C1010, C1011, C1012 and C1013 - Serial lines
The number of serial lines available depends on the computer
make and model. Standard RS-232 serial lines with 9-pin
D-connectors are default.
→ 9-pin connector, cable details, page 110.
→ 25-pin connector, cable details, page 109.
C1014, C1015, C1016 and C1018 - USB
These are four standard USB cables. Both are optional, and the
cables are supplied by Kongsberg Maritime when applicable.
→ Cable details, page 116.
Note that commercial “RS-232 to USB” convertes may be put to
use if the number of available serial lines is too small.
C1028 - Remote control
Refer to the General Purpose Transceiver (GPT) cables.
Connectors

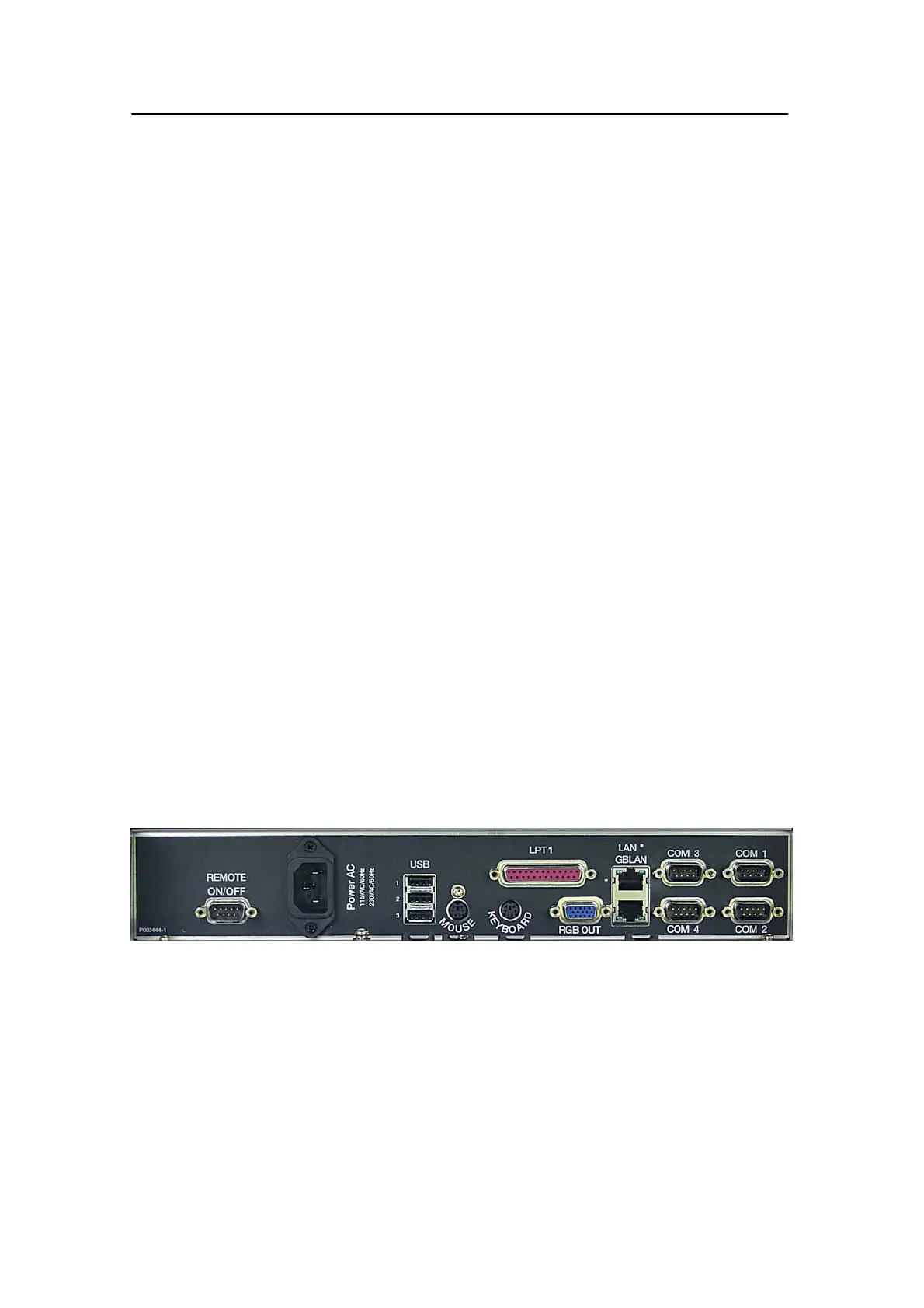

The following connectors are located on the side panel of the
operator station.
Remote Control (male) Power AC
USB: 1, 2 and 3 Mouse
Keyboard (PS2) Parallel printer (female)
Slave display (female) Ethernet LAN* (RJ45)
Ethernet GLAN (RJ45) COM 1, 2, 3 and 4 (male)
Figure 27 Connectors on the operator station’s panel
The following connector and switch are located on the front of
the operator station.
On/Off switch USB
