RA83/84/85/93/94/95 Series Chapter 4
Operation Manual Installation
4.6.4 Installing the Processor and Operation unit
The Processor Unit can be installed on tabletop or bulkhead. Use the following
procedure for installation.
The Operation Unit can be installed in table mount or flush mount mode.
4.6.4.1 Table mounting:
Processor unit
(1) Determine the location observing the precaution given in Para 4.4.2.
(2) Place the Processor Unit onto the position where the unit is installed and fix it
using the truss tapping screws prepared in the installation material kit. (4 positions)
Use M4 (4 mm) tapping screw with 25
mm length or more for good security.
(4 positions)
Processor unit

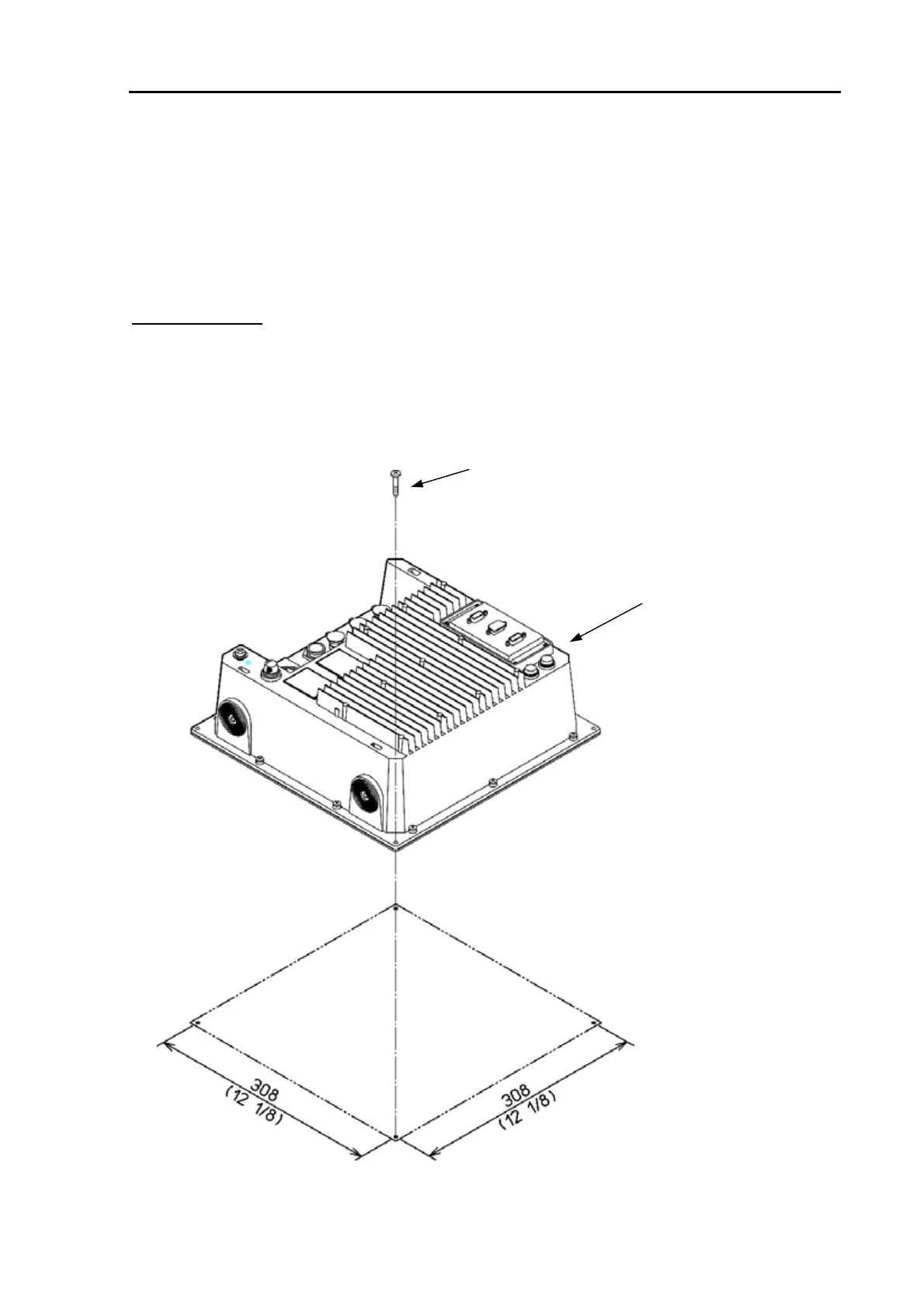

Figure 4.6 Installing the Processor Unit
93142105-02 4-7
To Next Page
