Adjustment - Function Overview
2
2-12 bizhub PRESS 1250/1052, bizhub PRESS 1250P, bizhub PRO 951 Additional Information
2.5
2.5.2 [01 Magnification Adjustment] - [02 Printer FD-Mag. Adj. (Side 2)]
Adjust magnification on back side in paper feed direction of printer engine. If transfer misalignment occurs,
adjust magnification in paper feed direction to mitigate the problem.
Objects of adjustment: Tray 1 to Tray 11 should be adjusted individually.
Tray 1 and Tray 2 are the main body trays to be adjusted.
Tray 3 to Tray 11 should be adjusted when Paper Feeder Unit PF-703 is mounted.
Tray 3 to Tray 8 should be adjusted when Paper Feeder Unit PF-706 is mounted.
NOTICE
Make this adjustment after completing [01 Printer FD-Mag. Adj. (Side 1)].

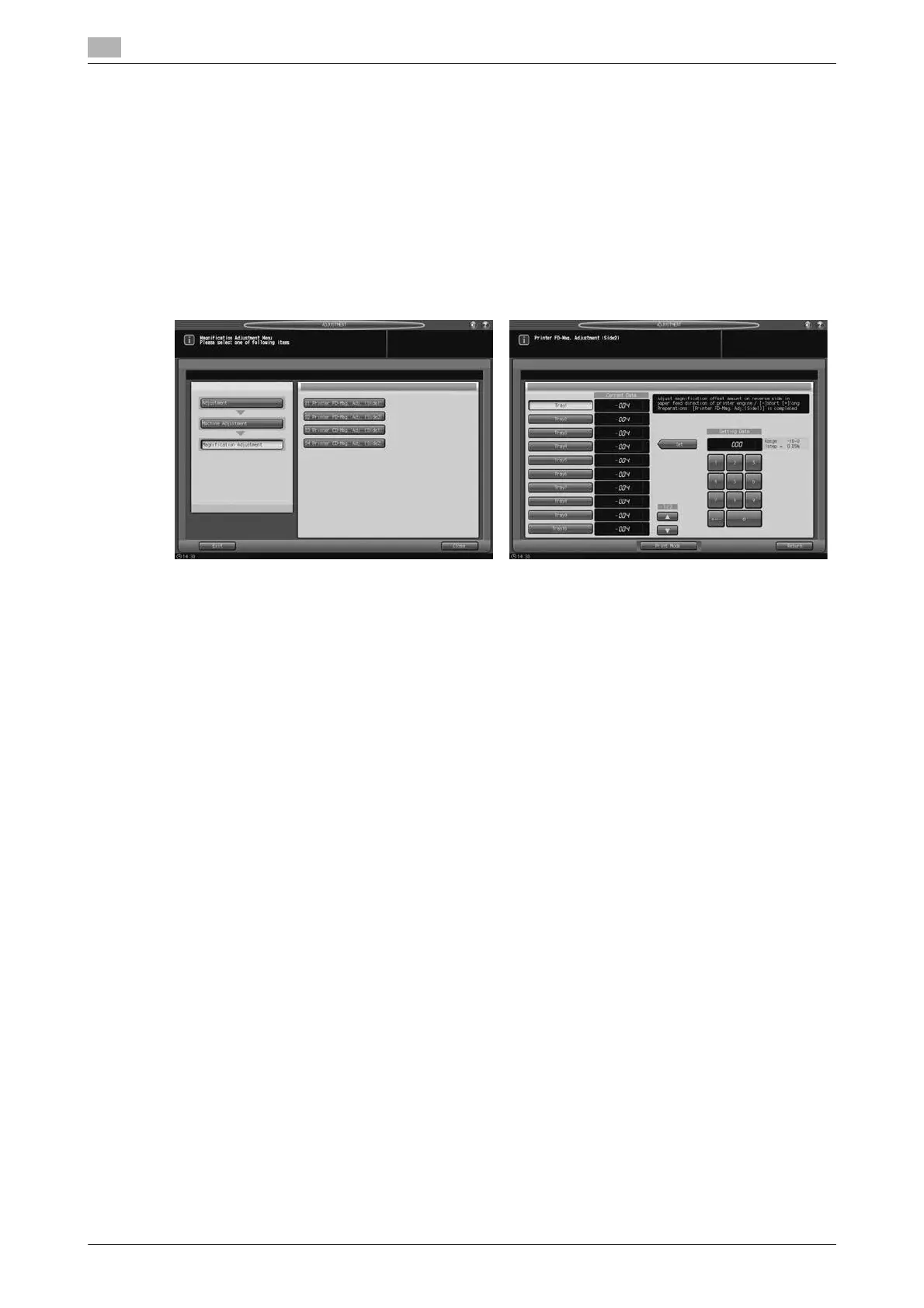

1 Press [Adjustment] on the Machine Screen to display the Adjustment Menu Screen.
2 Press [01 Machine Adjustment], [01 Magnification Adjustment], and [02 Printer FD-Mag. Adj. (Side 2)]
in sequence.
The Printer FD-Mag. Adjustment (Side 2) Screen will be displayed.
3 Select the key for the tray (from Tray 1 to Tray 11) to be adjusted.
For the subsequent procedure, see "5.2.2 [01 Magnification Adjustment] - [02 Printer FD-Mag. Adj. (Side 2)]"
of [User’s Guide - POD Administrator’s Reference].
2.5.3 [01 Magnification Adjustment] - [04 Printer CD-Mag. Adj. (Side 2)]
Adjust the magnification on back side in crosswise direction in the printer engine. Change magnification in
image control before exposure.
Objects of adjustment: Tray 1 to Tray 11
Tray 1 and Tray 2 are the main body trays to be adjusted.
Tray 3 to Tray 11 should be adjusted when Paper Feeder Unit PF-703 is mounted.
Tray 3 to Tray 8 should be adjusted when Paper Feeder Unit PF-706 is mounted.
NOTICE
Make this adjustment after completing [03 Printer CD-Mag. Adj. (Side 1)].
