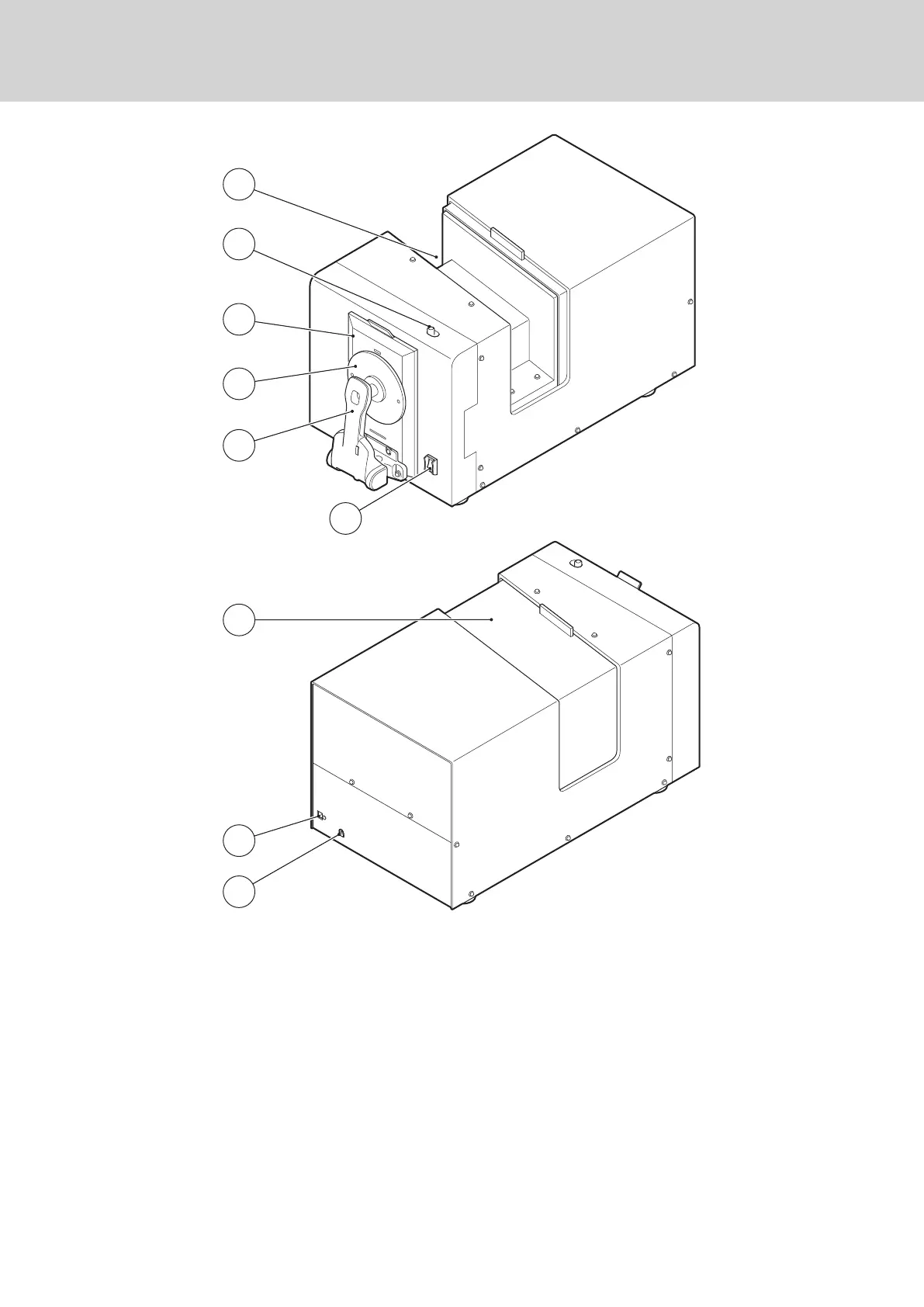

Names and Functions of Parts
① Transmittance chamber .............................Place the specimen in this chamber to perform
measurement of transmittance.
② Measurement port baseplate lock .............. Used to release the lock of the measurement port base plate.
③ Measurement port baseplate .....................Can be opened check position of specimen for reflectance
measurements.
④ Power switch .............................................. Used to turn power ON and OFF.
⑤ Sample holder ............................................Used to hold the specimen, white calibration
plate or zero calibration box.
⑥ Target mask ................................................ Select a suitable target mask (for 5×7mm (SAV), ø11mm
(MAV) and ø30mm (LAV) measurements) according
to the specimen and attach it to the CM-3700A.
⑦ Transmittance specimen chamber cover .... Covers the transmittance specimen chamber when slid closed.
⑧ USB connection terminal ............................ Used to connect the instrument to a PC with the supplied USB cable
(IF-A21 or IF-A22).
⑨ AC adapter input socket..............................Used to connect the AC adapter supplied with the CM-3700A.
8
9
4
5
3
1
2
7
6
