Korg PA 600 User Manual

5
Overview

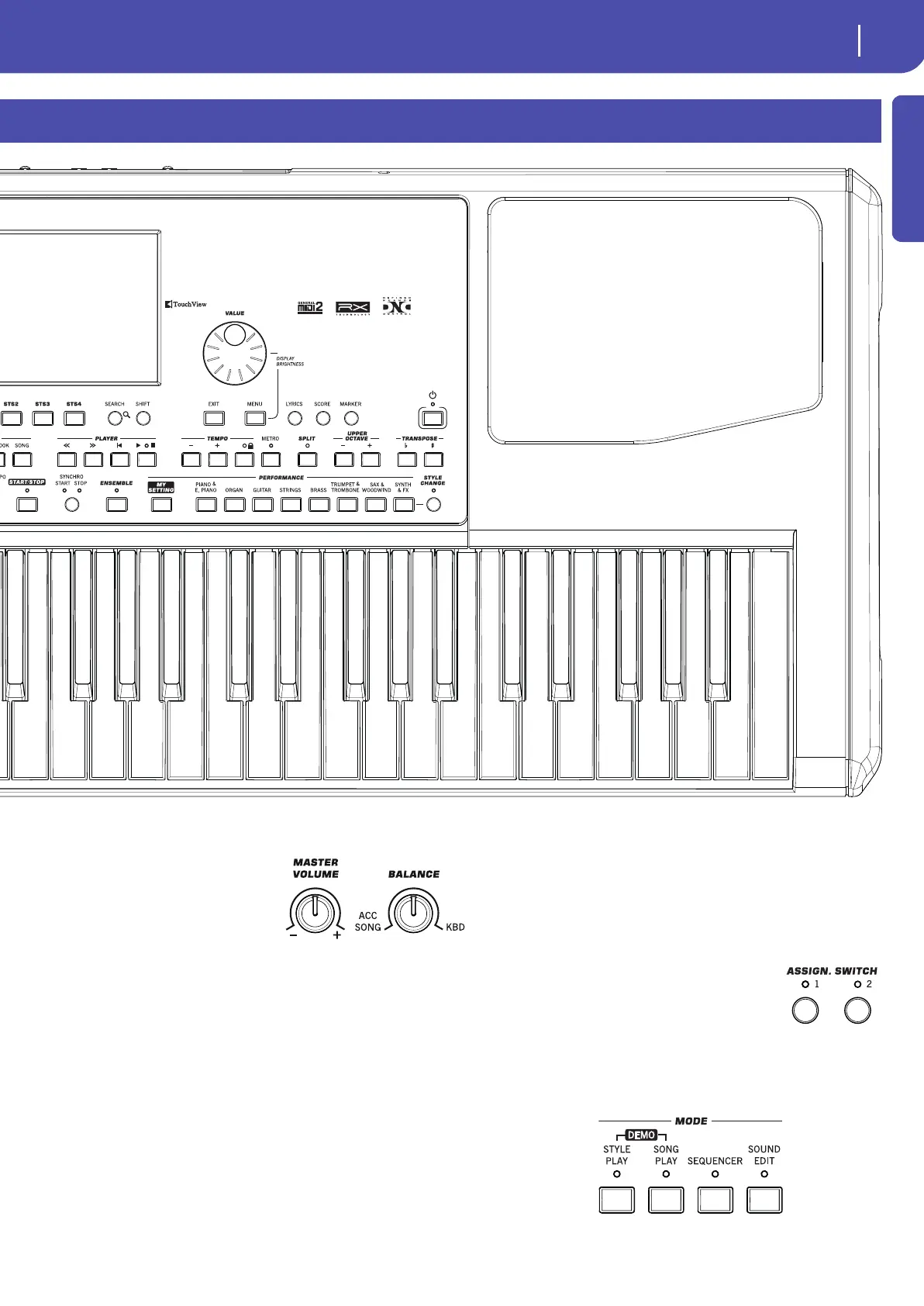

Front Panel
Introduction
Volume controls
Use these knobs to control the
master volume, and to bal-
ance between the Keyboard
and the Style or the Song.
MASTER VOLUME
This knob controls the overall volume of the instrument, both of the
integrated speakers, the AUDIO OUT and the PHONES outputs. It
also controls the volume of the AUDIO IN inputs in the final mix.
BALANCE
While in Style Play and Song Play mode, this knob usually bal-
ances the volume of the Keyboard tracks against the Style (ACC,
Accompaniment), Song (SNG) and Pad tracks. This is a relative
control, whose effective maximum value is determined by the
MASTER VOLUME knob position.
When moved, a magnified version of a virtual slider appears in
the display, for more accurate adjustment.
It can be programmed to work as the volume control for the
Accompaniment/Song tracks only, leaving the Keyboard tracks
unchanged (in the Controllers > Hand Controllers page of the
Global mode).
Note: This does not work in the Sequencer and Sound modes.
Assignable Switches
ASSIGNABLE SWITCH
Freely assignable switches, that can be pro-
grammed in the Pad/Assignable Switch >
Switch page of the Style Play or Song Play mode.
Mode selection
Each of these buttons recalls one of the instrument’s operating
modes. When selected, each mode excludes all the others.
Overview.fm Page 5 Wednesday, July 4, 2012 11:59 AM

Korg PA 600 Specifications

General

Polyphony	128 voices
Sequencer	16-track sequencer
Styles	360 factory Styles
Speakers	2 x 15W speakers
Keyboard	61 keys with velocity sensitivity
Dimensions	1030 x 378.3 x 127 mm
User Styles	Up to 1, 200 locations
Amplifier	15W x 2
Audio Inputs	Line In (Left/Right)
Audio Outputs	2 Line Out (Left/Right)
MIDI	In/Out
USB	USB to Host, USB to Device
Connectivity	USB, MIDI, Line In/Out
Sounds	Over 950 (including Stereo Piano and GM Level 2 sounds)
Display	7-inch color TFT touchscreen
Tones	Defined in Sounds as Over 950
