When you touch the LCD, the mark appears for a while at the [ON] icon, but soon it move to the
[MOVE] icon. Confirm the [MOVE] and the [OFF] icons.
After confirmed them, rotate the [TEMPO/VALUE] encoder to the top-center position, then
touch the [Next] icon.

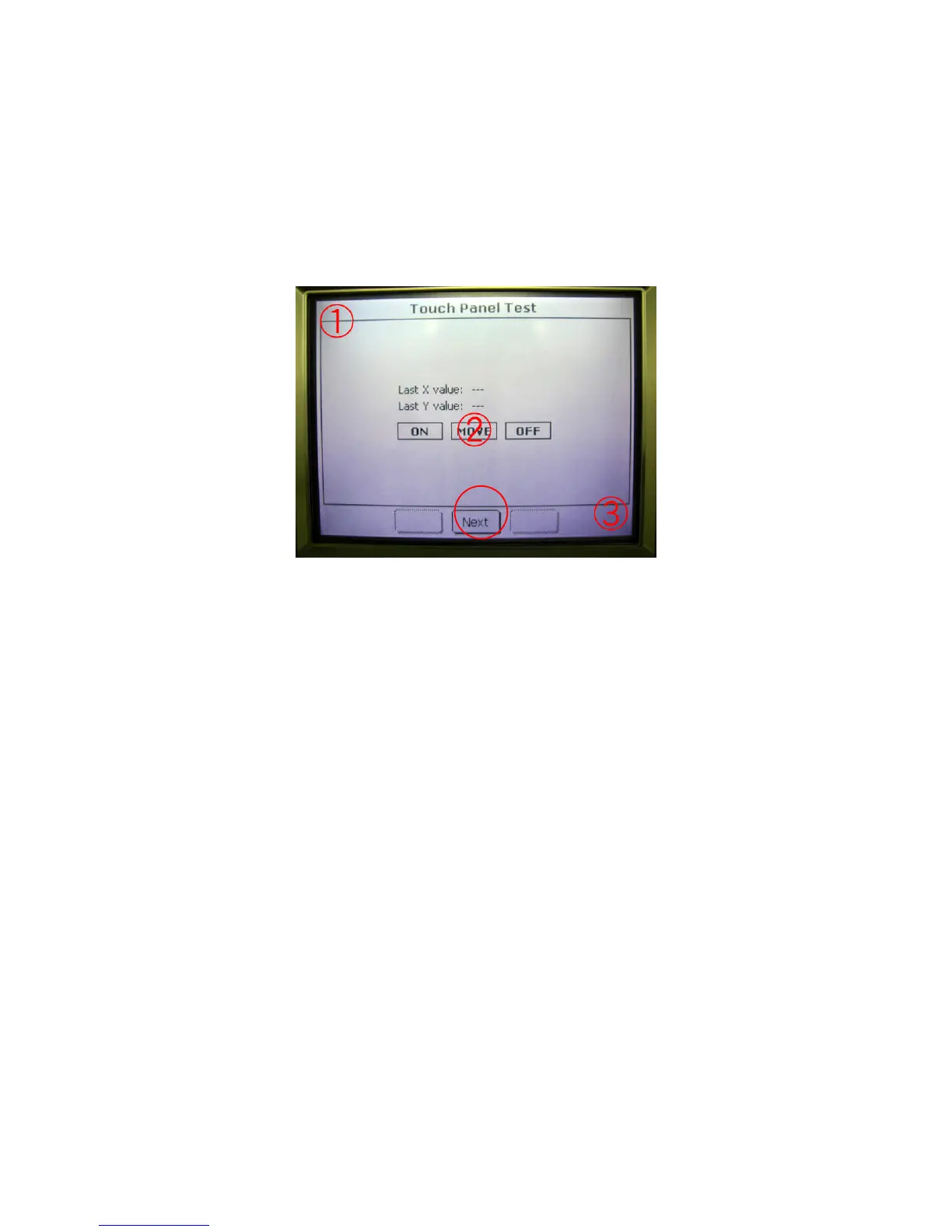

Display of the touch panel check
<<Check of Switch, Encoder, Headphones>>
Touch the [Next] icon to proceed to the check of switches, encoder, headphones.
The display of next page appeared, confirm that the [√] mark is not with the [Headphone] icon.
Then insert the headphone plug to the headphone jack. Confirm that the [√] mark is with the
[Headphone] icon.
Next, rotate the encoder for one around clockwise, confirm that the value of [Wheel:] icon
becomes “24(+). Then rotate the encoder for one around counter clockwise and confirm that the
value of the [Wheel:] icon becomes “0(-).
Next check is switches. All LEDs turned on, confirm that there is not the unevenness of
brightness. The switch which is checked is displayed in the LCD. The order is in the following
table. Confirm that the LED which is checked turned ON, and press the switch to proceed to the
next.
At the time confirm that the check proceeds to next, sound is heard, the color is right, normal
click feeling. Before pressing the last [TRANSPOSE] switch set the {VOLUME} slider to the
maximum position.
