Korg PA500 Service Manual

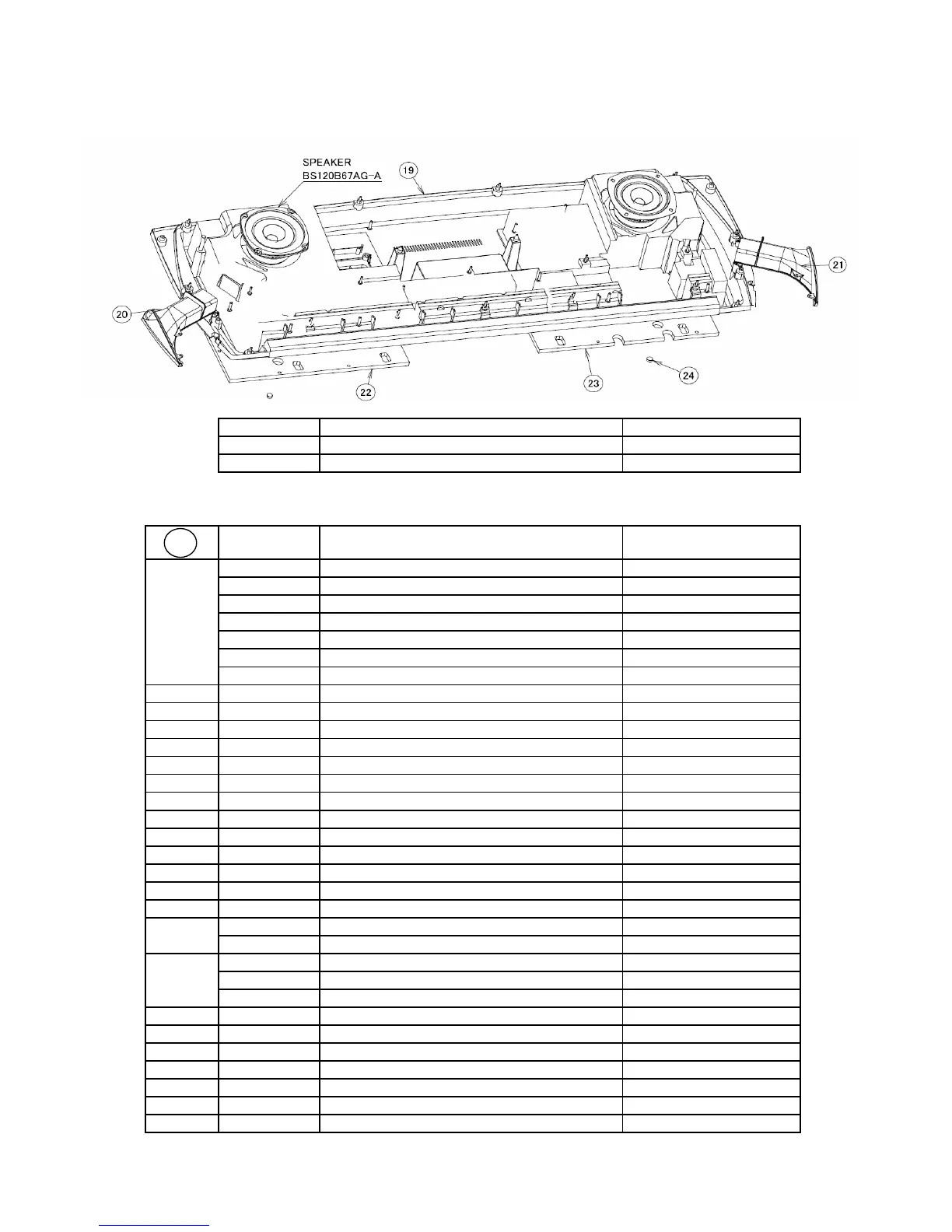

Pa500 ASSEMBLE DRAW BOTTOM SIDE DRAW
Part Cord PART NAME NOTE
510700503613 BT FEW 3BC 3 X 20
for bottom board
510700503614 BT B 3BBC 4X20
for UPPER side & BOTTOM side
No Part Cord PART NAME NOTE
510646508002 X-5390 UPPER CASE E10252-1
Standerd Pa500
- X-539A UPPER CASE E10252-2
- X-539B UPPER CASE E10252-3
- X-539C UPPER CASE E10252-4
- X-539D UPPER CASE E10252-5
- X-539E UPPER CASE E10252-6
- X-539F UPPER CASE E10252-7
2
510646502086 KEY ASSY 13(M) KOC-H30306-1
3
510646502085 KEY ASSY 12(M) KOC-H30305-1
4
510500505001 KEY GUIDE RUBBER QMGG055AA
5
510500505501 KB FELT 1 KOC-F41281-1
6
510649500502
PA50 JS ASSY 11PA050JS10
7
510500504503 RUBBER BOTTON 13 KOC-E30438
8
510640508028 X-5390 SH SPRING C41536
9
510646502122 X-952 PWS KNOB (CH) E40726
10
510640508031 X-5390 LOWER CHASSIS C30753
11
510640508030 X-5390 UPPER CHASSIS C30752
12
510646502119 X-5390 LCD HOOD E30475
13
510802500534 X-5390 SP NET C30754
14
510646502049 X-2100 SLIDER KNOB E40578-2
510646508501 5390 SQUARE SW NL DG E40720-1
collor:Dark GRAY
510646508502 5390 SQUARE SW NL LG E40720-2
collor:Light GRAY
510646508503 5390 SQUARE SW LED DG E40721-1
collor:Dark GRAY
510646508504 5390 SQUARE SW LED LG E40721-2
collor:Light GRAY
510646508505 5390 SQUARE SW LED RD E40721-3
collor:RED
17
510646502123 X-610 ENCODER KNOB(CH) E40727 -1 GRAY
18
510646508001 X-5390 BOTTOM CASE E20294
19
510646502120 X-5390 BASS PORT assy L E30476-1
20
510646502121 X-5390 BASS PORT assy R E30476-2
21
510645500005 X-5390 BOTTOM BOARD L D30312
22
510645500006 X-5390 BOTTOM BOARD R D30313
23
510802500533 X-5390 FOOT RUBBER E40723
15
16
1

Korg PA500 Specifications

General

Type	Arranger Keyboard
Sequencer	16-track sequencer
Weight	10.5 kg
Keyboard	61 keys (velocity sensitive)
Polyphony	80 voices
Sounds	880 sounds + 56 drum kits
Display	Color TFT LCD
Storage	SD card slot
Connectivity	MIDI In/Out
Amplification	2 x 15 Watt
Speakers	2 Speakers
Effects	4 stereo digital multi-effects
