Installation
LAN
L2
L1
L3
N
PE
RS485
Modbus
LAN
L1 L2 L3
L1 L2 L3 N
LAN
STATUS
NETWORK
SERIAL BUS
REST
Smart Energy Meter
LAN

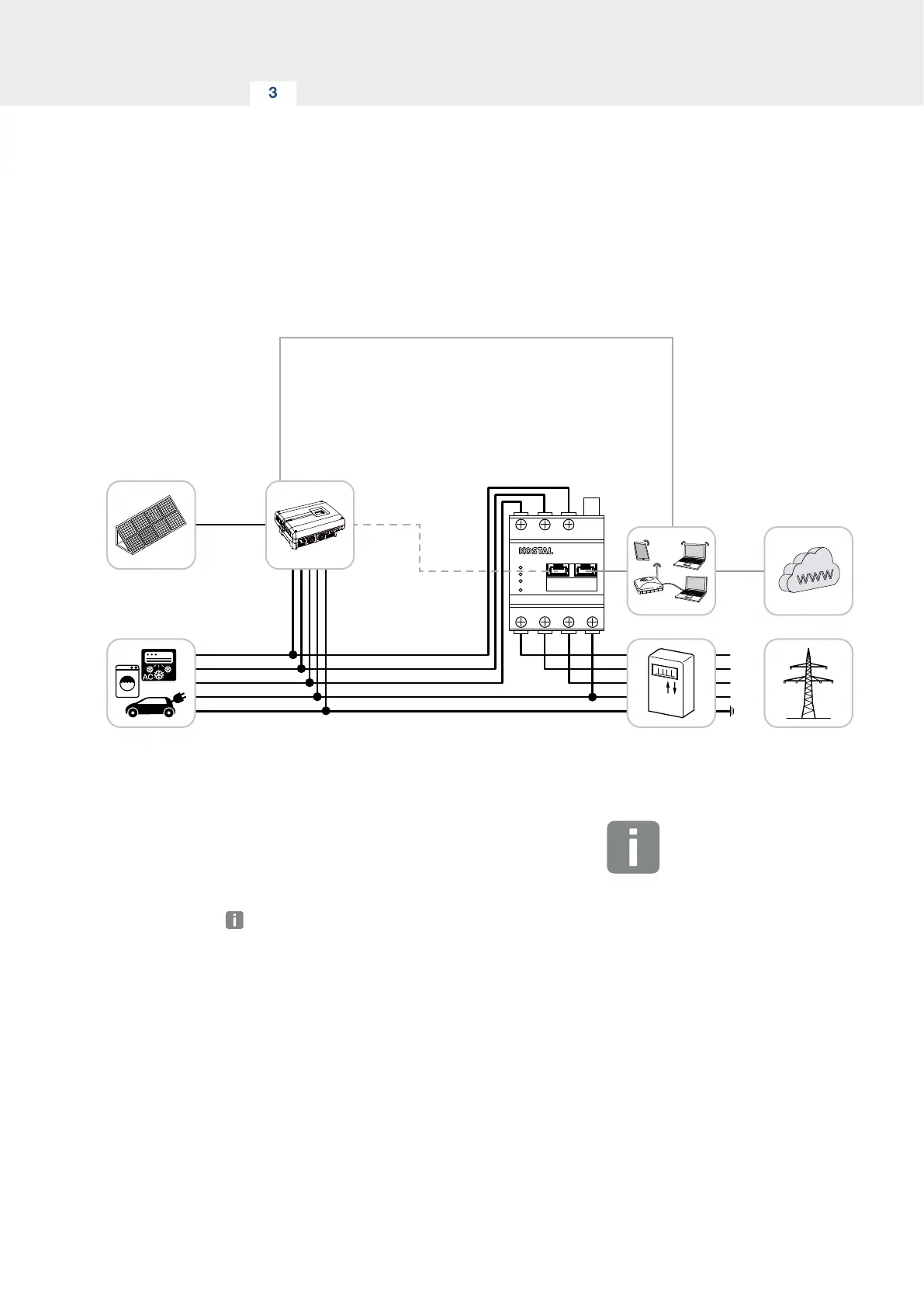

Install KOSTAL Smart Energy Meter as shown at the grid
connection point in the home network.
Set up LAN communication cable between inverter and
KOSTAL Smart Energy Meter and connect. As an option,
the LAN connection from the inverter can also be con-
nected directly to the KOSTAL Smart Energy Meter
(switch function).
In this variant, the KOSTAL Smart Energy Meter runs as
a master and controls the inverter (e.g. to limit power).
INFO
For details, see the inverter's operat-
ing manual and the KOSTAL Smart
Energy Meter's installation instruc-
tions.
PIKO 4.2-20 / PIKO EPC - load / generation measurement
2
3
4
5
1
