Fiber-optic cable is connected to the optics block. It does not matter which one of the two cables is
connected to the receiver inlet (Rx). In a normal application another cable is connected to the RGB
light source. IR light source is used in special cases such as heavy steam environment or in an applic-
ation where exceptionally strong light is needed.
Rx IR
Red/IR
Green
Blue
RS-485
Shield
RGB
OPTIC Cables
Optional 4 - 20 mA outputs
Optics block
Connect one fiber optic cable to Rx
Connect another cable to:
Rx = Receiver
RGB = Red, Green, Blue LED
IR = Infrared LED
- RGB if RGB light in use (normally)
- IR if IR light in use
NOTE: mA outputs are not
Use isolators in DSC or PLC.
isolated.
Analog outputs
A B- + - + - +

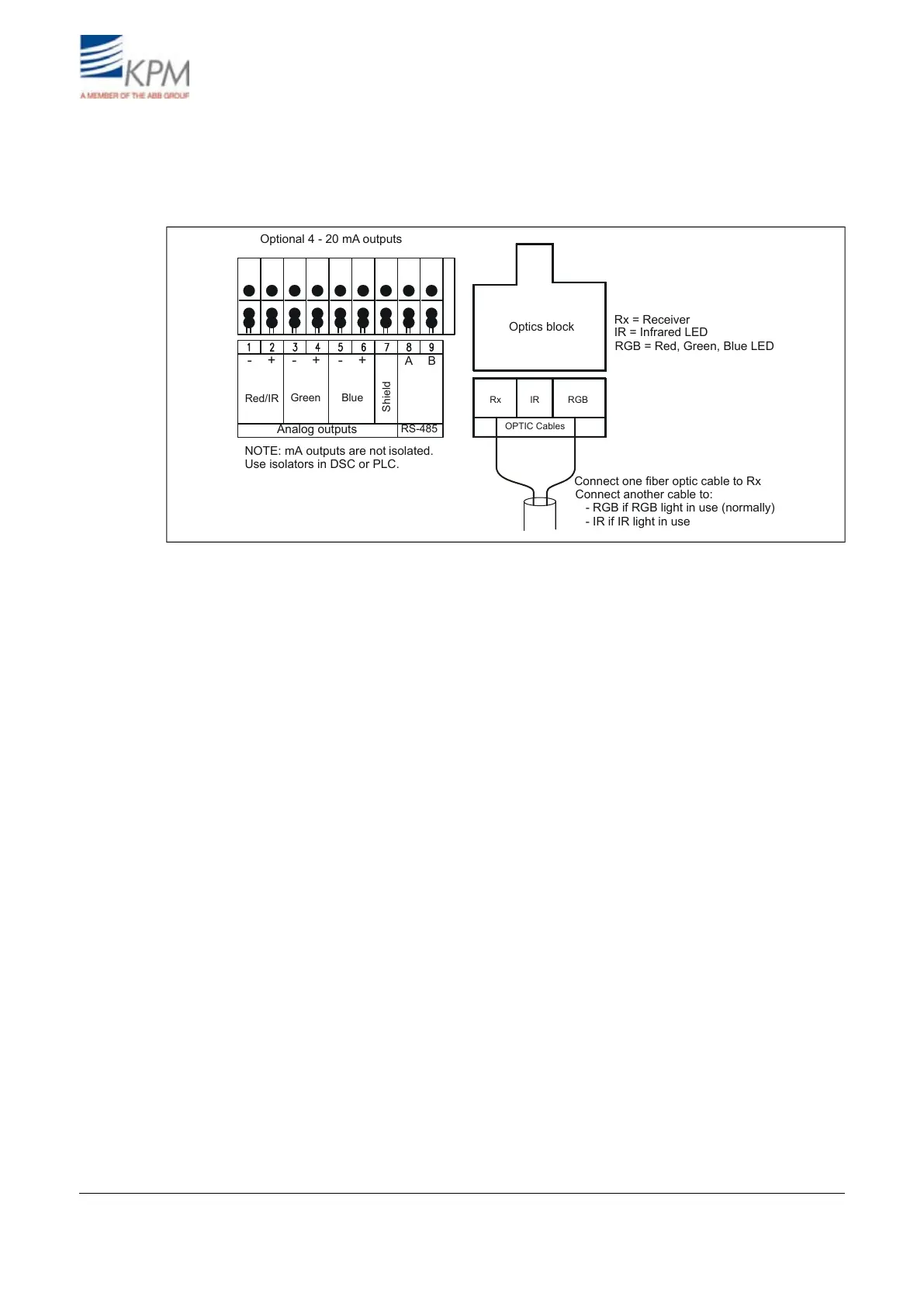

Fig. 3.3. Fiber-optic cable and optional 4-20 mA connections.
KB² Man W41100099V1.211August 2012
