11. Appendix 5

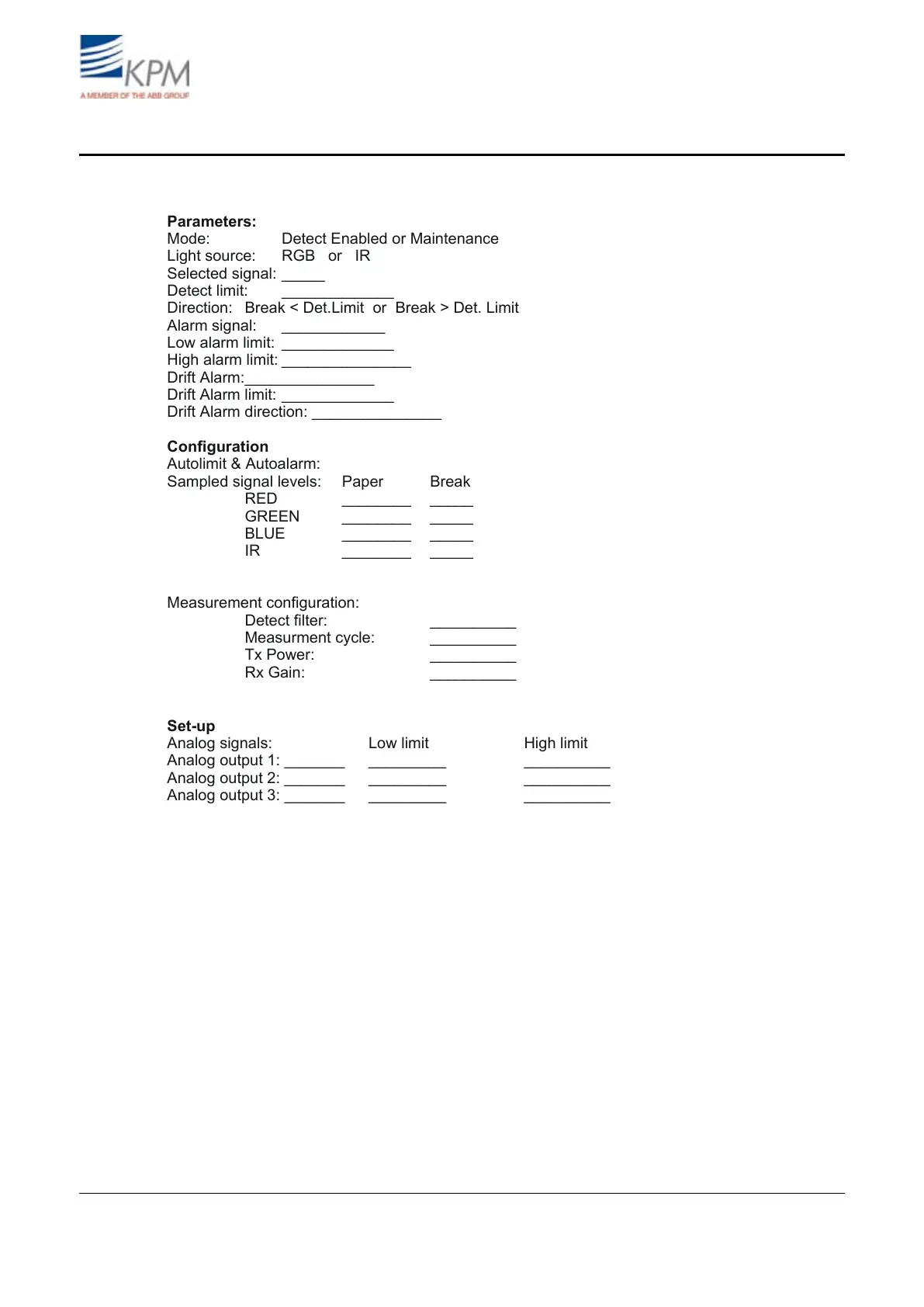

11.1. Settings and variables
Parameters:
Configuration
Mode: Detect Enabled or Maintenance
Light source: RGB or IR
Selected signal: _____
Detect limit: _____________
Direction: Break < Det.Limit or Break > Det. Limit
Alarm signal: ____________
Low alarm limit: _____________
High alarm limit: _______________
Drift Alarm:_______________
Drift Alarm limit: _____________
Drift Alarm direction: _______________
Autolimit & Autoalarm:
Sampled signal levels: Paper Break
RED ________ _____
GREEN ________ _____
BLUE ________ _____
IR ________ _____
Measurement configuration:
Detect filter: __________
Measurment cycle: __________
Tx Power: __________
Rx Gain: __________
Set-up
Analog signals: Low limit High limit
Analog output 1: _______ _________ __________
Analog output 2: _______ _________ __________
Analog output 3: _______ _________ __________
KB² Man W41100099V1.231August 2012
