4.4. Maintenance
In "Maintenance" section you can find device indentification, measured signal values, errors, data
logging and event logging.
On-line signals:

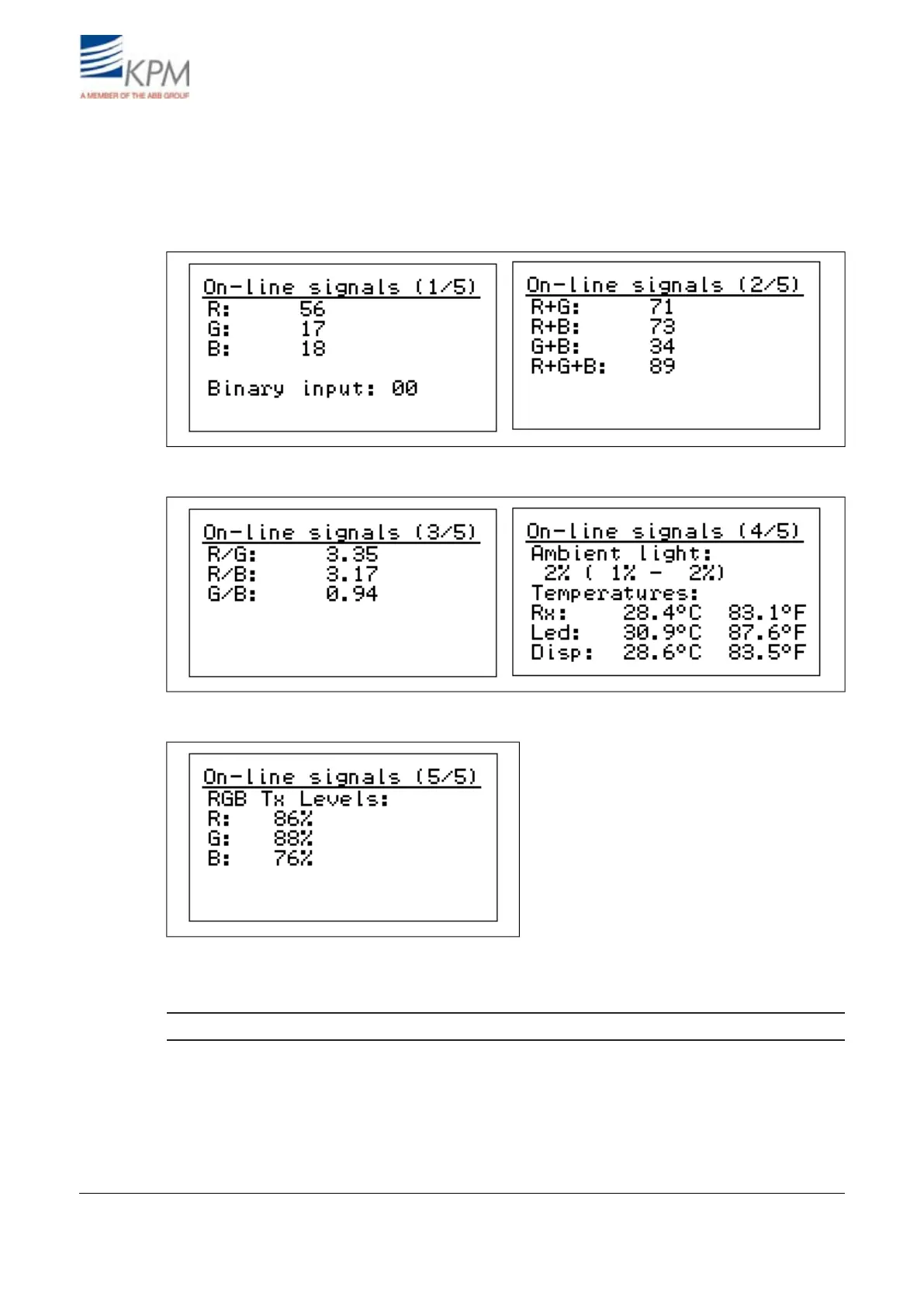

Fig. 4.10. On-line signals, pages 1 and 2.
Fig. 4.11. On-line signals, pages 3 and 4.
Fig. 4.12. On-line signals, page 5.
You can monitore measured and calculated signals for troubleshooting.
NOTE: "Ambient light" should be less than 60%.
When "Ambient light" value is higher that 60 % there is too much external light, which may disturb
measurement. "Signal levels" and "Ambient light" values can be adjusted by parameters "TX Power"
and "RX Gain", which are located in "Factory setting" menu. Smaller "RX Gain" value will help re-
ceiving less ambient light. ("Min %-Max %" shows the occurred extremes ambient light during one
measurement cycle).
KB² Man W41100099V1.217August 2012
