5.1 Connecting the 104M 1:4 Microphone Amplifier
To connect the 104M Microphone Amplifier, as the example in Figure 4
illustrates, do the following:
1. Connect an audio source (for example, a microphone) to the INPUT 6.5 phone
connector.
2. Connect the OUT 6.5 phone connectors to up to 4 audio acceptors (for
example, power amplifiers with speakers)
1
3. Connect the power adapter to the power socket, and connect the adapter to the
mains electricity.
.
4. If required, adjust the level trimmer
2
.

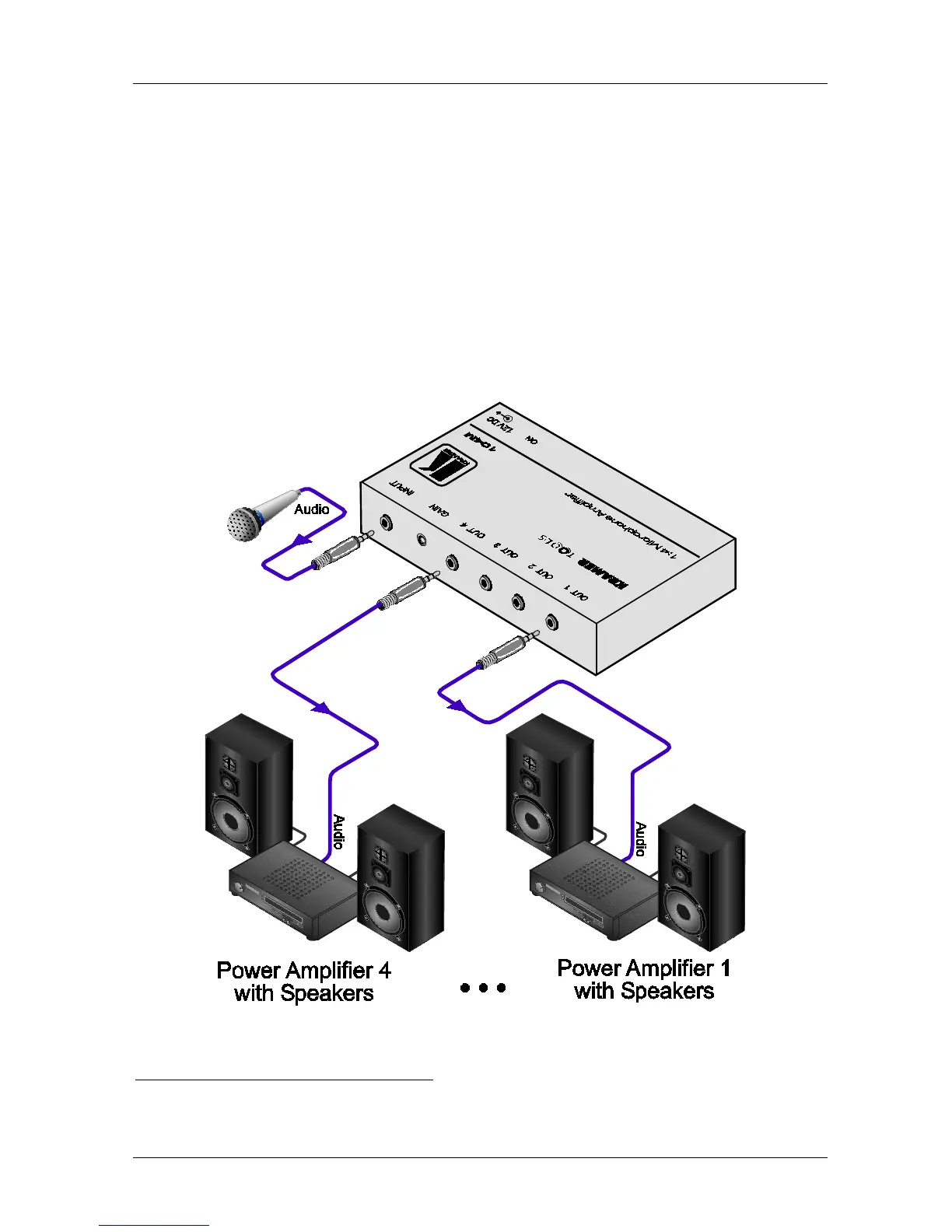

Figure 4: Connecting the 104M 1:4 Microphone Amplifier
1 You do not have to connect all the outputs
2 Insert a screwdriver into the small hole and carefully rotate it to adjust the level
